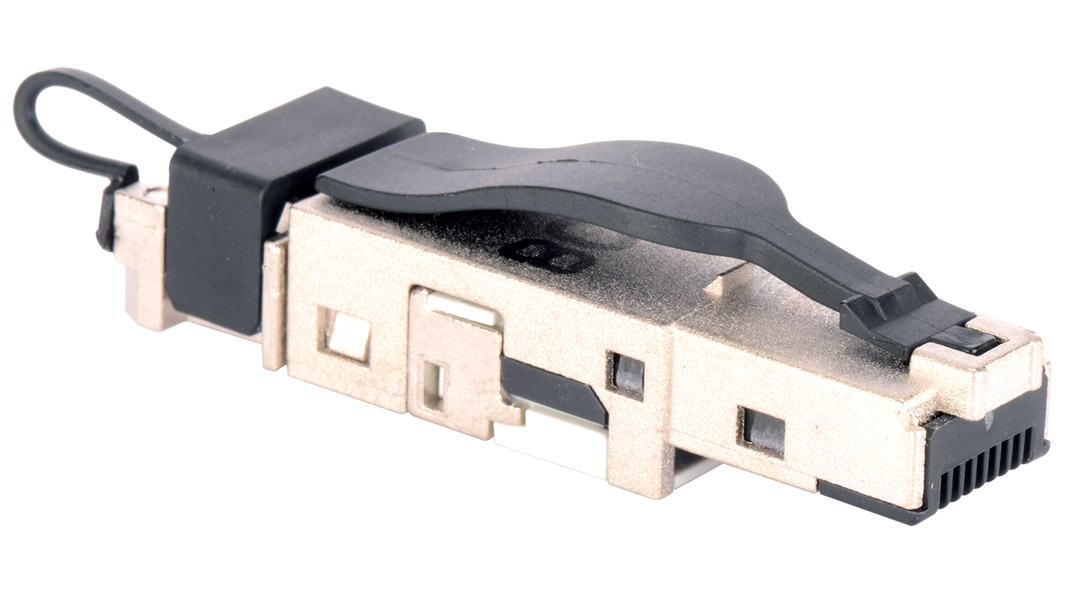

E-DAT Industry™ IP20 RJ45 field plug component # 1401405012-I allows you to use an Ethernet Class E / Cat.6 connection for 10 BaseT, 100 BaseTX, 1000 BaseT and 10000 BaseT (10G) networks and is backwards compatible for any RJ45 Ethernet cabling system. Unique design enables dramatically faster field termination of screened (ScTP and F/UTP) and fully shielded (S/FTP) four-pair 100 (balanced) copper cable. Field termination requires no special tools. Finger force press of two mating parts results in secure connection via 8-pole insulation displacement connection (IDC) with integrated shield bonding at plug housing and separate strain relief. With the patented E-DAT Industry IP20 RJ45 field plug you can connect installation cables (26/1 – 22/1 AWG) and patchcords (26/7 – 22/7 AWG). Optional component # 1401400810-I field plug insert enables IP67 ingress protection with the SteadyTec™ application solution when an enhanced MICE environmental rating is required. Wire color identification on both components per TIA T68A and TIA 568B is standard. Includes passive PC board for proprietary Digital Signal Processing (DSP) compensation (phase and other cable parameters). The E-DAT Industry IP20 RJ45 field plug meets or exceeds all TIA/EIA-568-B-2.10 draft augmented Cat. 6, EN 50173-1:2002 for Class E, and ISO/IEC 60603-7-5 for Cat. 6 component standard requirements at swept frequencies up to 625 MHz. Solid Zinc die-cast housing (Ni plated) provides optimal protection from Alien crosstalk via captive 360° shield connectivity spring and precision design of wire staging or lay area that enables minimal untwisting (0.5 inch or less) of cable pairs. This provides potential balance of shield/screen/foil for EMF/RFI protection and shield attenuation of the link, per ISO/IEC 11801:2002- 09 and EN50173-1:2002, meeting requirements of EMI proof per EN 55022-B and EMI emissions per EN 50082-1. These unique design features are what enable fast data rates up to 10G BaseT and the related longer life-cycle expected from this futuristic product when used with a ready for 10G cabling system. BTR test data for both UTP and STP cabling systems are available.
* Male 8P8C Modular RJ45 Plug|
* IDC Contact Style for 26 to 22 AWG TWP Cabling|
* No Special Tools required, just cable prep tools|
* 625 MHz Sweep Test and Class EA Certification|
* Category 5e, 6, 6A U/UTP, F/UTP, F/STP, S/FTP Formats|
* Integrated IDC insertion strain relief
