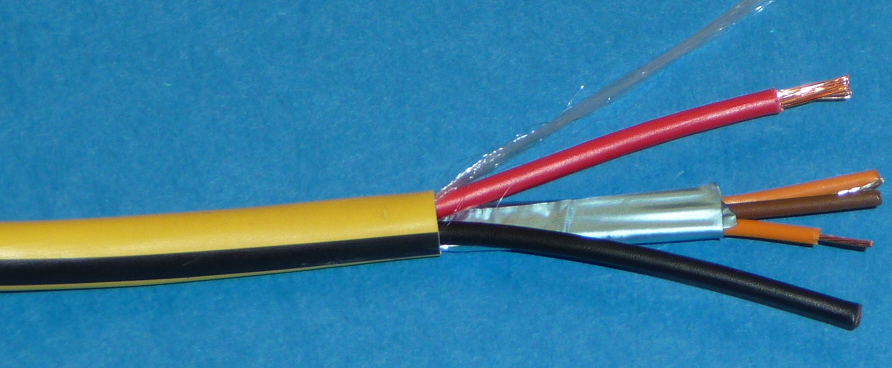

9020127 Yellow Somfy SDN Plenum Control Cable 500 ft spool

500 ft spool of Liberty Wire & Cable (LWC) Somfy systems control cable in a plenum jacket

Features and Benefits

• Somfy plenum composite control and power cable
• 14 AWG power pair
• 22 AWG 3 conductor shielded triad for control
• NEC rated CL3P, RoHS II compliant
• 500 Foot spools standard

Applications

• Somfy systems control cable for power and data
• Shade and Blind control cable

Technical Specifications

Description

Composite cable consisting of a 22 AWG stranded, twisted and shielded data triad and a 14 AWG stranded, twisted, and unshielded
power pair overall jacketed
NEC type CL3P. Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with
NEC article 725.

Component 1:

22 AWG data triad 7‐strand annealed bare copper conductors Foam fluorinated ethylene propylene insulation Wall thickness: 0.019" | 0.51mm Diameter: 0.068" | 1.73mm 100% aluminum/poly shield foil in 24 AWG 7‐strand tinned copper drain wire

Component 2

14 AWG power pair 41‐strand annealed bare copper conductors Plenum rated polyvinyl chloride insulation Wall thickness: 0.009" | 0.23mm Diameter: 0.092" | 2.34mm

Color Code

Data triad: Orange, Orange w/White stripe, Brown Power pair: Red, Black
