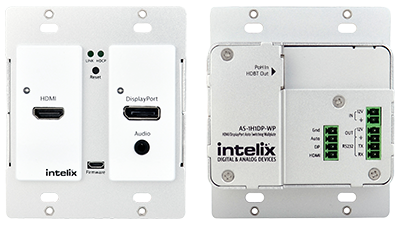

Intelix HDMI/DisplayPort Auto-Switching Wallplate

Liberty AV Solutions brand Intelix Part# AS-1H1DP-WP-B

70m HdbaseT Auto- switching Wallplate. Ideal for Boardroom, Education & Hospitality. Display Control Software

The Intelix AS-1H1DP-WP is a two-gang, Decora-style wallplate designed to be the primary PC interface for classrooms, boardrooms, and conference centers. It features DisplayPort + Audio to HDMI conversion and an HDMI input. If the DisplayPort signal does not support embedded audio, the analog audio input port can be accessed via RS232.

The AS-1H1DP-WP utilizes HDBaseT technology to extend the digital output up to 70 meters away using solid core shielded Category 5e or greater cable. This transmitter device is compatible with several Intelix HDBaseT receivers, but is designed to work primarily with the DIGI-HD60C-R. The unit features multiple EDID modes to eliminate user confusion, and incompatible video formats.

The AS-1H1DP-WP can be powered from the rear panel or by Power over HDBaseT (PoH), including midspan injectors that support Power over Ethernet (PoE) Alternative A or Alternative B. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. The AS-1H1DP-WP also features a customizable power management system, which will put the unit into a low power state after no video for 30 minutes or being inactive for 3 hours by default. When using the local power input, 12V DC is available for other devices on the power output connections on the rear of the device.

The AS-1H1DP-WP will detect which input has an active video input, and switch to that input – if both inputs are active, the “last in” will be selected. There are additional contact closure inputs provided on the rear of the unit to allow third party control. RS232 control of the AS-1H1DP-WP can be accomplished by connecting to the RS232 port on a compatible receiver, such as a DIGI-HD60C-R, or through a direct connection on the RS232 input of the device.

The AS-1H1DP-WP can be programmed to control the connected display. The display manufacturer’s RS232 commands can be entered into the AS-1H1DP-WP with the use of Intelix Display Control software. This allows display power and input to be automatically controlled based on video activity, eliminating the need for a third party control system in many installations.

Features and Benefits

• HDMI and DisplayPort w/ 3.5mm Stereo input
• HDBaseT output - 70m Max Distance
• Automatically switches input to active video
• RS232, Auto, and Dry Contact Closure for control of device
• PoH (Power over HDBaseT) or 12V DC local power
• Display Control Software to control TV or projector with RS232 commands - automatically turns display on/off
• Customizable power management system when not in use

Applications

• Uses any shielded solid core Cat5e or greater twisted pair cabling
• Extension of HDMI and DisplayPort with stereo audio to one
• Ideal for boardroom, education, and hospitality

Supporting Documents

 AS-1H1DP-WP Installation Manual

Specifications

 PDF Spec Sheet
