Conference Room 6 input to HDMI under table Auto-switcher

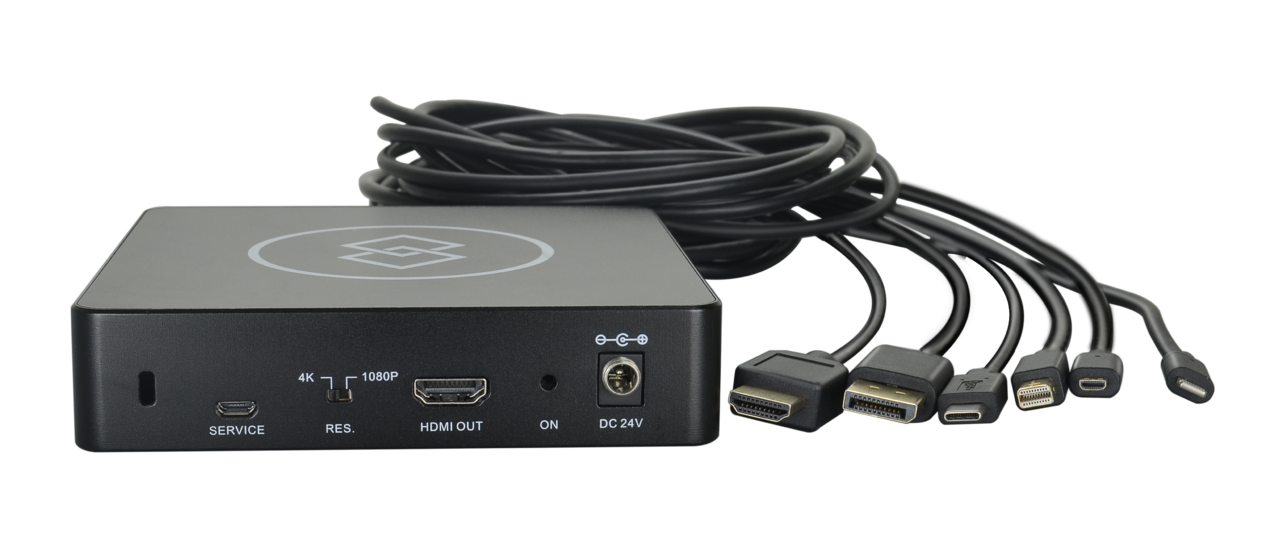

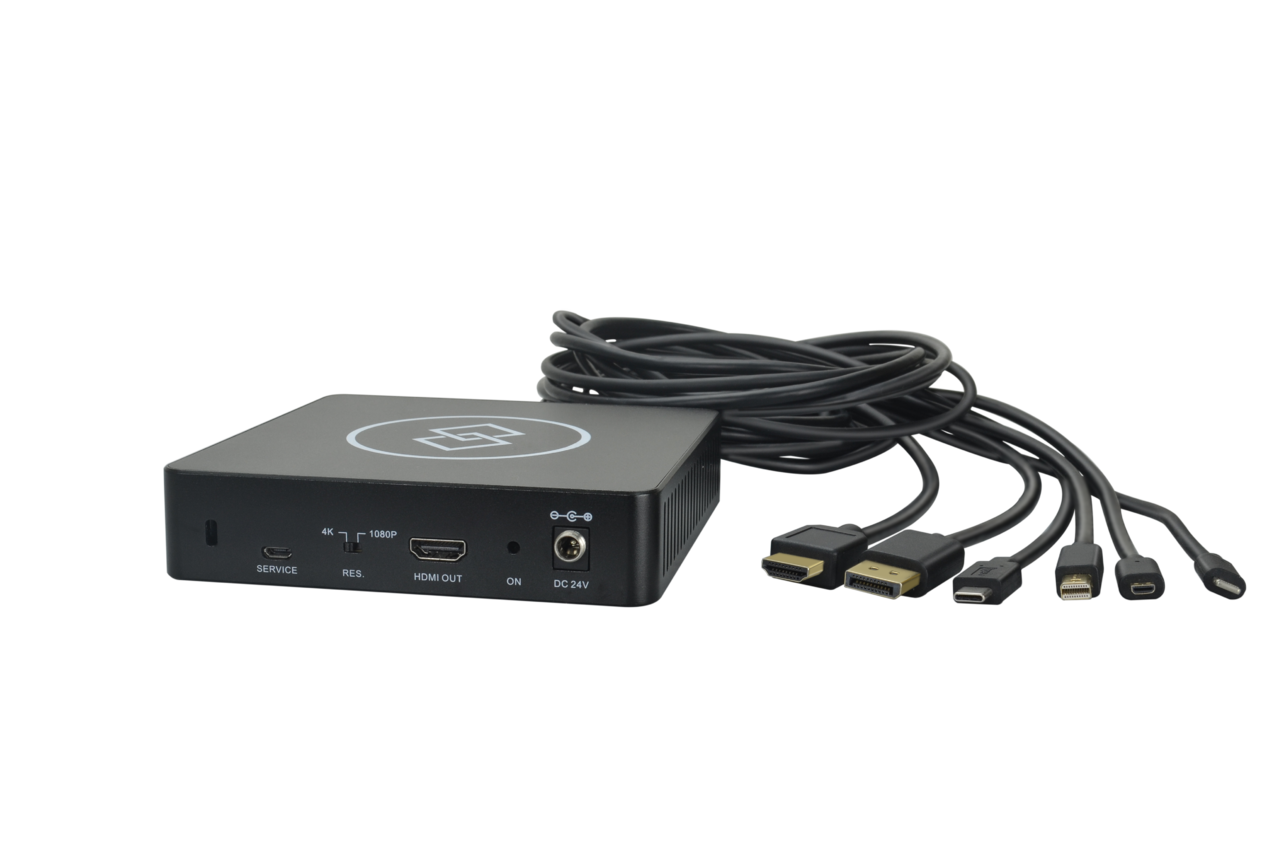

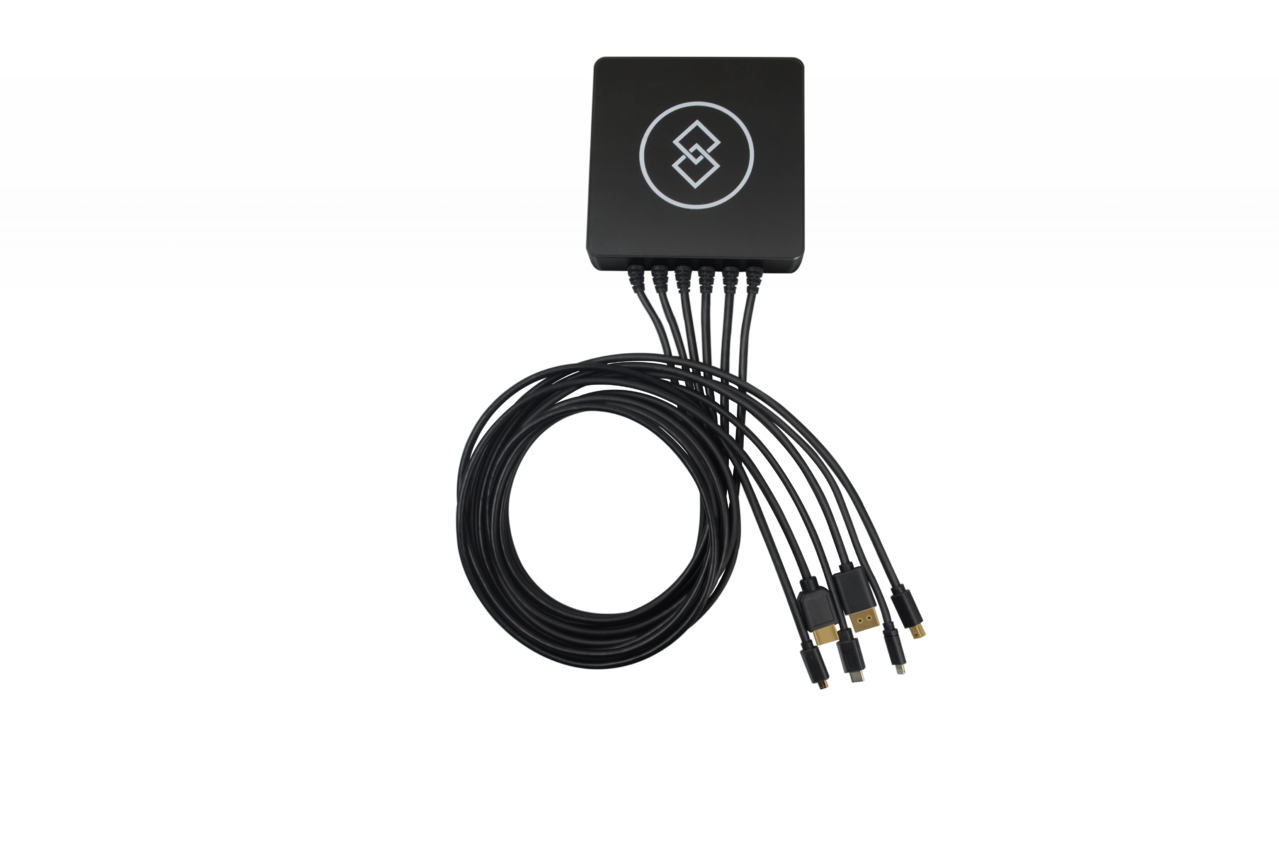

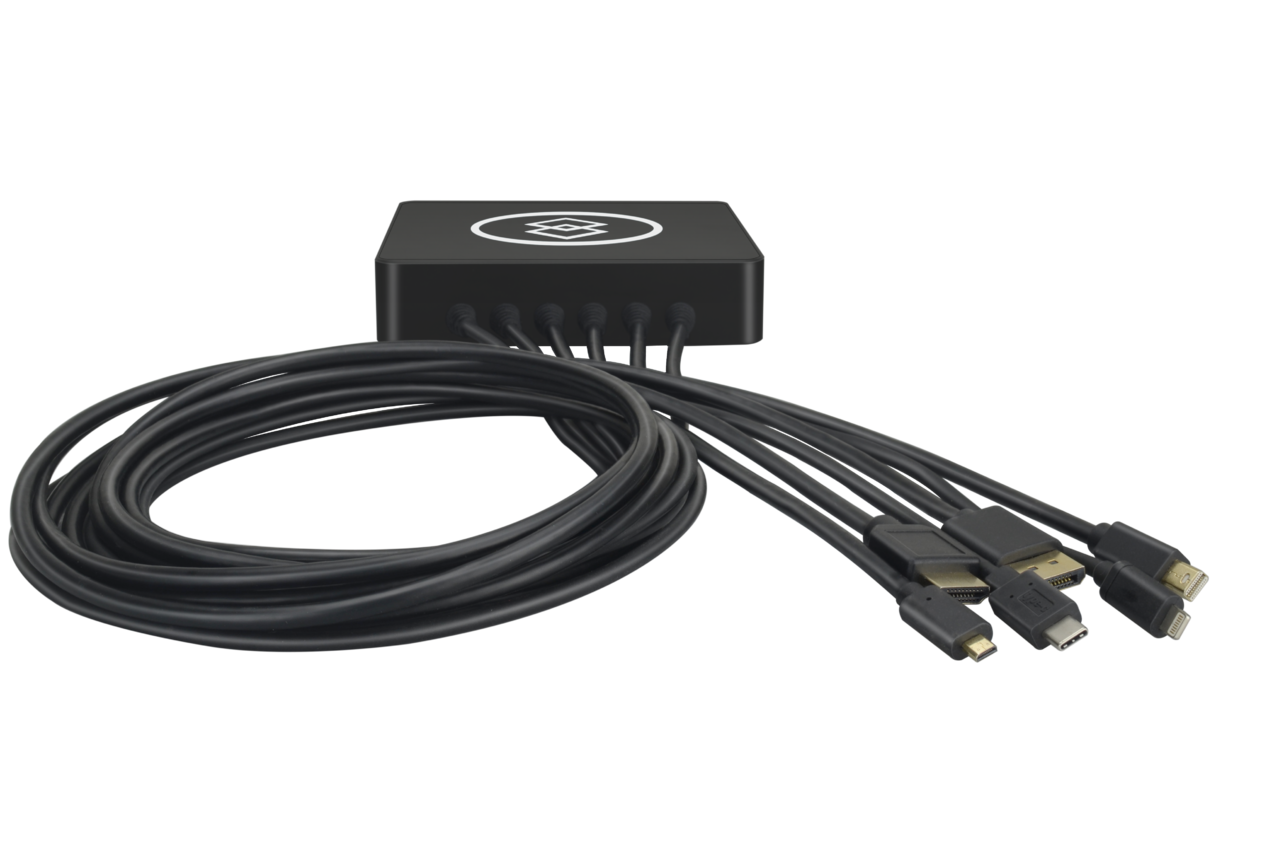

The DigitaLinx BYOD-HUB-UT is a 6x1 multi format A/V auto switcher and scaler that features a variety of integrated input connection leads that are compatible with devices such as mobile phones and tablets, allowing a dependable wired connection to a display or TV monitor for presentation purposes.

The BYOD-HUB-UT features the following A/V input leads; (1) Lightning (1) USB-C (1) MINI Display port (1) Display port (1) HDMI type-A and (1) HDMI type-D. The BYOD-HUB-UT features an HDMI output with a built in 4K video scalar that can be set to either 4K or 1080p.

The BYOD-HUB-UT auto switches in priority from Lightning to HDMI Type D (going left to right as seen on front panel), the switcher will not memorize order of connection sequences. When there is no A/V input signal detected in the BYOD-HUB-UT after 10 minutes, the switcher hub will power OFF. When an A/V input signal is connected to a cable lead when the switcher hub is in the OFF state, the BYOD-HUB-UT will power ON.

Features and Benefits

• Integrated with the following connection leads
• Apple Lightning
• HDMI (Type A)
• HDMI mini (Type-D)
• Display Port
• Mini Display Port
• USB-C
• All above input types converted to HDMI and scaled to 1080P or 4K
• Cables are 1.4m (4 1/2') to allow for under table mounting, passing through cubbies, table grommets, etc.
• Auto switches in priority from Lightning to HDMI Type D (left to right)
• Under table mount included
• Cables leads are field replaceable
• HDCP Compliant
• Patent-Pending

Applications

• Under table mount on conference room and huddle room tables
• Lectern mount for BYOD connectivity in Education or Training rooms
• Use without table mount and sit on top of table for BYOD connectivity
• Mount on mobile carts for easy device connectivity
