Digitalinx DL-44E-H2-KIT 4X4 HDBT 18G 4k60 4:4:4 & HDR Matrix Switch

Digitalinx 4X4 HDMI 2.0 / HDBaseT Matrix Switch Kit

4K60 4:4:4 / HDR 18G 70M HDMI/HDBaseT Matrix Switcher kit w/ IR pass-through, analog/digital audio de-embed w/down mixing, and PoC power

DL-44E-H2-KIT Features and Benefits

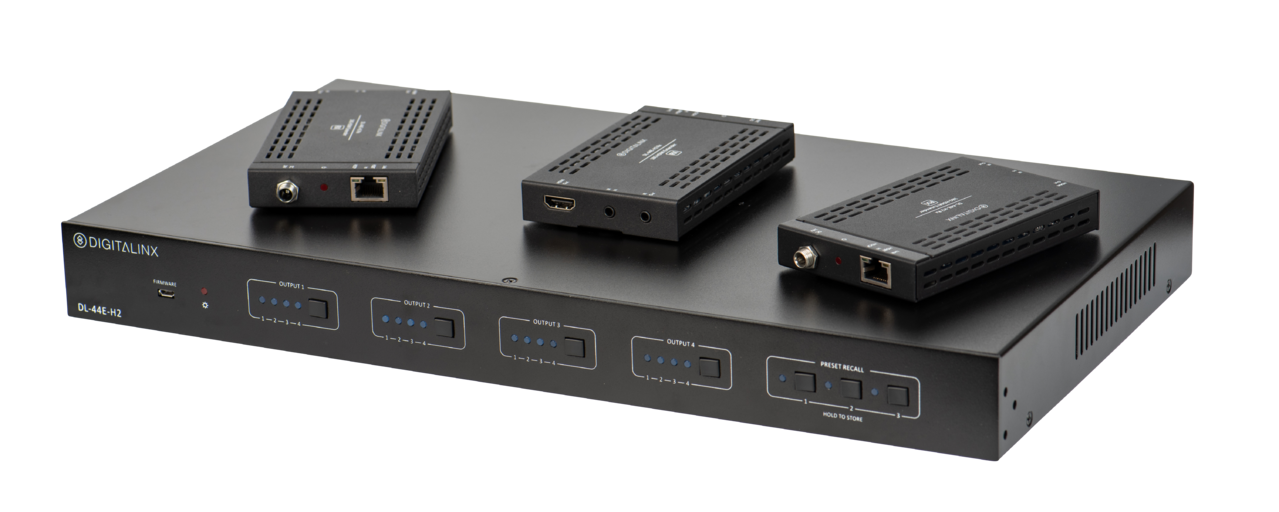

• Includes 4x4 switcher, 3 18G HDBaseT receivers, power supply
• 4 HDMI inputs, 3 HDBT & 1 HDMI outputs, with HDCP 2.2 support
• Analog and digital audio de-embedding on output 4 supporting surround down-mixing
• Switches and extends HDMI, IR, & 1 way PoC (Switcher powers receivers)
• Three 18G HDBaseT receivers kitted with the switch
• One HDMI output
• 70 m (230 ft) maximum extender distance
• Front panel, IR, TCP/IP, and RS232 control
• IR Extender pass through routing over HDBaseT
• Control page and configuration accessible from web browser
• Advanced HDCP management

DL-44E-H2-KIT Applications

• True matrix routing and distribution of HDMI signals
• A/V routing in environments with demanding control system
• Ideal for houses of worship, corporate video conferencing,
