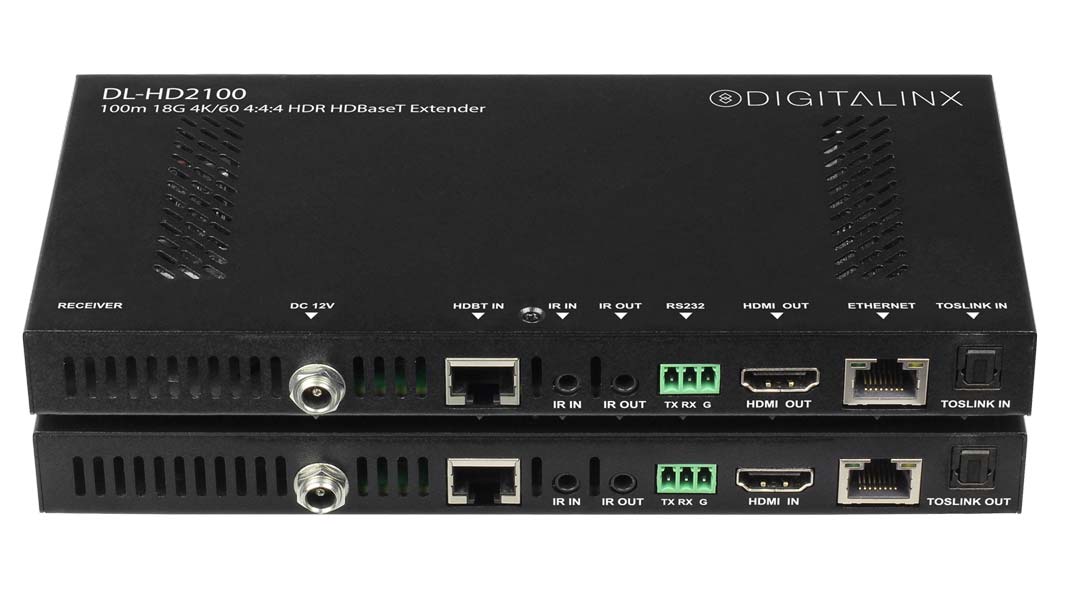

HDMI 2.0 18G 4K60 4:4:4 HDR extender set - 330 ft (100 m)

The DigitaLinx DL-HD2100 is an 18G HDMI 2.0 extender over category cable that can transport data rates up to 18Gbps up to 100 meters. The system uses 2:1 data compression when the signal surpasses 10Gbps, anything under 10Gbps will never be compressed. In addition to extending high bandwidth HDMI signals, the extension system will extend IR, RS232, digital audio, Ethernet, and is ARC compatible. System supports flexible power so entire extender circuit can be powered by either the TX or RX side.

DL-HD2100 Features and Benefits

• 18G 4K60 4:4:4 HDR capable HDBaseT complete extender set
• Extend HDMI, IR, RS232, Ethernet, & ARC up to 100m
• Optical Toslink connection for ARC or Digital audio extension
• Analog Audio De-embeding
• Flexible PoE power can be applied at either end
• Includes Re-Clocking Circuitry for maximum device compatibility
• Threaded power supply included

Package Contents

• (1) DL-HD2100 Transmitter
• (1) DL-HD2100 Receiver
• (2) IR Receivers (Eye)
• (2) IR Transmitters (Emitter)
• (1) IR-AC IR Coupler Cable
• (3) 3 pole Terminal Block (attached to extenders)
• (1) DC12v US Power Supply with US, UK, EU and AU adapters
• (4) Mounting Brackets with screws
