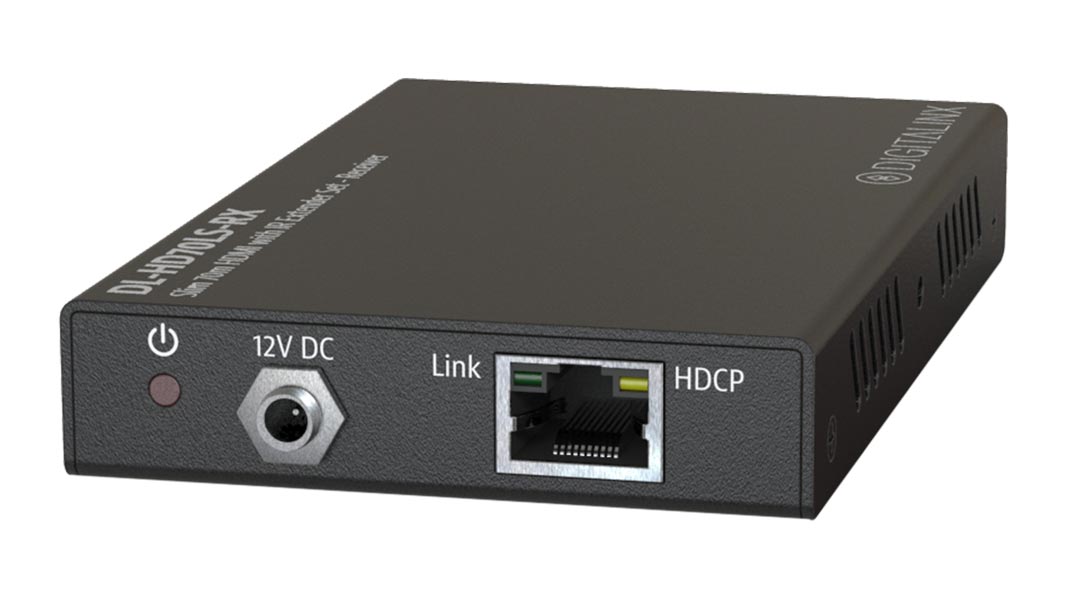

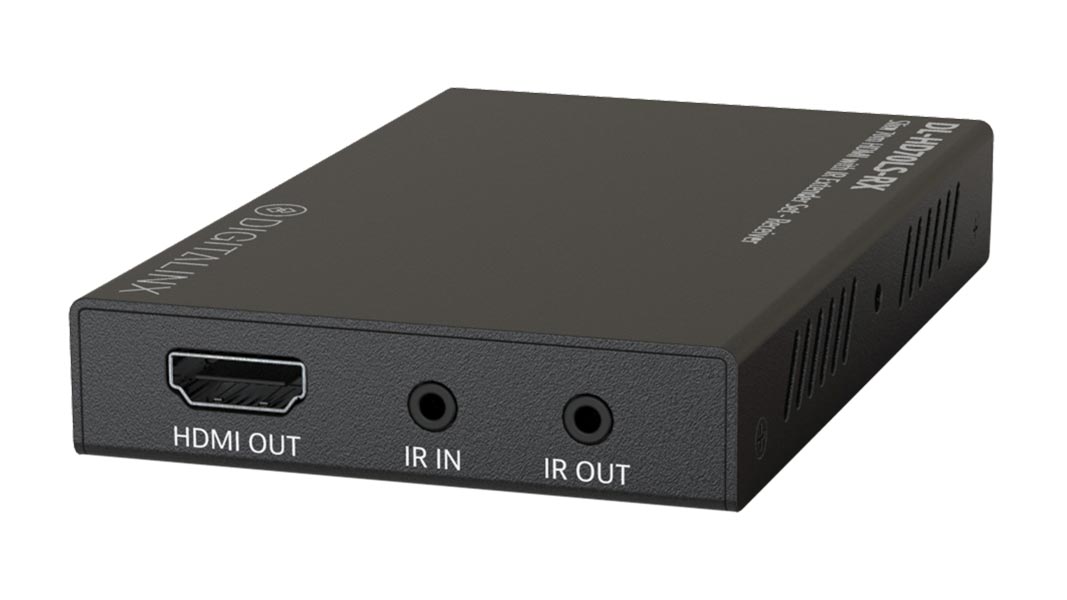

DL-HD70LS Slim HDMI Over Twisted Pair 70m HDBaseT Complete Set with Power and IR extension

The DigitaLinx DL-HD70LS extender set transmits HDMI (1080p, 4Kx2K (UHD/HDR) & 3D), including HDCP 2.2, and bidirectional IR up to 70 meters away using a single solid core, shielded Category 6 twisted pair cable. Built-in surge protection helps ensure hassle-free and robust installations. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected. The DL-HD70LS is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry

Features and Benefits

• HDMI transmission up to 230 feet (70m)
• Complete set Includes TX, RX, Power Supply, and IR flasher/emitter
• 1080p, 4Kx2K & 3D compatible; CEC supported
• Built-in surge protection; diagnostic LEDs
• HDCP 2.2 compliant
• Bidirectional Wideband IR
• Power from TX supplies RX
• Locking power connector (power supply included)

Applications

• Extension of HDMI and control signals
• Limited access to power for extenders on both ends
• Ideal for Digital Signage, Home Theater

Package Contents

• DL-HD70LS Transmitter and Receiver Set
• (1) Quick Install Guide
• (1) IR Receiver (Eye)
• (1) IR Transmitter (Emitter)
• (1) DC12v US Power Supply with four adapter plugs (US, EU, AU, UK)
• (4) Mounting Brackets with screws
• (8) Rubber feet
