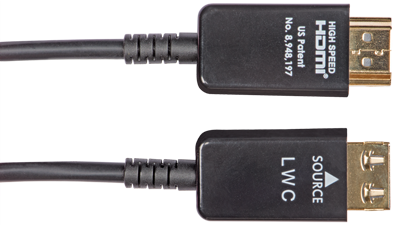

50 ft Plenum 4K HDR10 and Dolby Vision Compatible HDMI Cable.
The DL‐PHDM‐M‐015M extends HDCP compliant HDMI® signals via a flexible, plenum rated, Active Optical hybrid cable assembly. Utilizing active circuitry in the permanent HDMI connectors, HDMI signals with video resolutions up to 4K@60Hz (18.0Gbps) can be transmitted on fixed length cables ranging from 10 meters up to 100 meters.
As a hybrid fiber optic cable, the DL‐PHDM‐M is immune to electromagnetic (EM) and radio frequency (RF) interference, which could degrade signal performance, and the signals on the cable will not interfere with other sensitive electronic equipment. The copper components allow the Hot Plug Detect feature to be used in conjunction with auto functioning switches.
This cable offers high retention HDMI connectors. These connectors will provide 3 times the retention strength of standard HDMI cables. For best practices, if this cable is plugged into a passive junction like a pass through HDMI wall plate or panel connector, the associated patch cable on the opposite side must be 2 meters or less in length and of sufficient AWG size. Liberty recommends at least 28 AWG for wall to plate patching. If the patching cable is an active cable, a power inserter must be used on the wall plate to provide power for both the active patching cable and the DL‐PHDM‐M‐015M cable. Use of a longer length passive cable may cause insufficient power to be available to the DL‐PHDM‐M HDMI transceivers.
Features and Benefits
- Unique patented Opto electronics warrants 18G w/o power
- HDMI "A" to HDMI "A" Male connectivity
- Small Flexible bulk cable
- Real Glass, no Plastic Optical Fiber
- Built to be installed, full strain relief for head pull
- Full HDMI 2.0b 18G, HDR, 4K60Hz 4:4:4, all Audio, CEC
- Does not support Ethernet
- CMP-OF rated for all plenum applications.
- Lengths: 8m, 10m, 15m, 23m, 30m, 50m, 60m, 70m, 100m
- Full spectrum HDMI, High Dynamic Range, 4K60Hz 4:4:4
- Medical Imaging, Digital Signage, HDMI extension
- Future proofing current HDMI installs for new content
Contact Us for Special Pricing
Additional Cable Options
Part Numbers Part Description Cable Length
- DL‐PHDM‐M‐008M ACTIVE OPTICAL HDMI CABLE 8M 8 meters / 25 feet
- DL‐PHDM‐M‐010M ACTIVE OPTICAL HDMI CABLE 10M 10 meters / 33 feet
- DL‐PHDM‐M‐015M ACTIVE OPTICAL HDMI CABLE 15M 15 meters / 50 feet
- DL‐PHDM‐M‐023M ACTIVE OPTICAL HDMI CABLE 23M 23 meters / 75 feet
- DL‐PHDM‐M‐030M ACTIVE OPTICAL HDMI CABLE 30M 30 meters / 98 feet
- DL‐PHDM‐M‐050M ACTIVE OPTICAL HDMI CABLE 50M 50 meters / 165 feet
- DL‐PHDM‐M‐060M ACTIVE OPTICAL HDMI CABLE 60M 60 meters / 200 feet
- DL‐PHDM‐M‐100M ACTIVE OPTICAL HDMI CABLE 100M 100 meters / 328 feet
