DL-UHDILC In-Line 18G HDMI Auto Sensing Room Controller

DL-UHDILC Summary

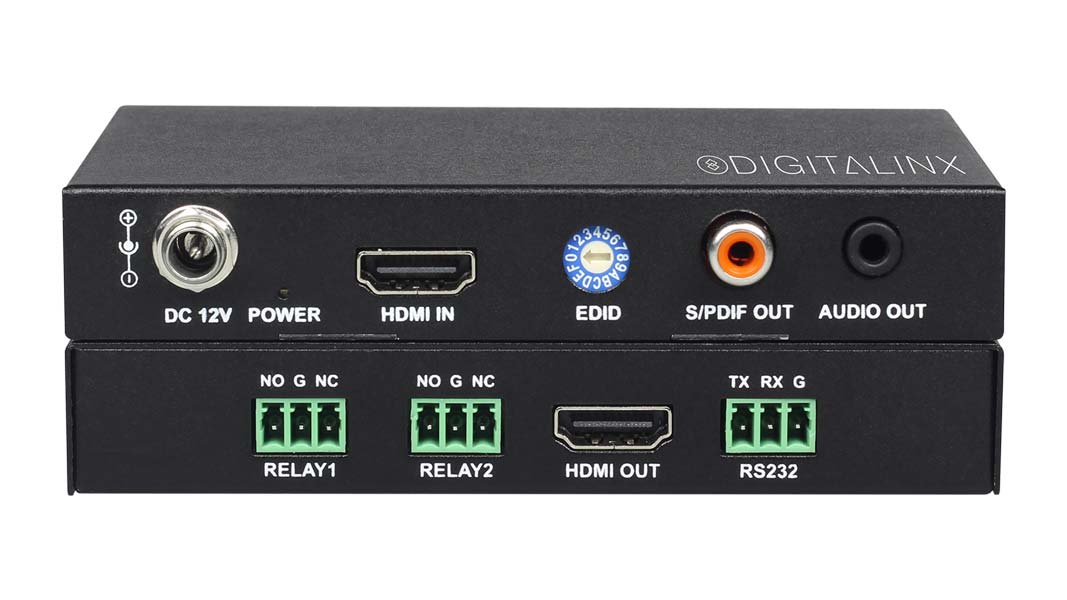

The DigitaLinx DL-UHDILC is an HDMI in-line controller that can automate room peripherals and sink devices when a video signal is introduced to the unit. The DL-UHDILC is 4K compatible, supports HDCP version 2.2, has an analog and digital de-embedded audio output and has 15 built in EDID presets that can be adjusted by the rotary dial on the front panel.

When the DL-UHDILC auto-detects an input video signal, the DL-UHDILC will automatically turn a display or projector on either by CEC or by pre-loaded RS232 serial commands. The DL-UHDILC will trigger the first relay port to switch a projector screen or window shade down. When a video signal is no longer present after a specified amount of time, the DL-UHDILC will turn off the display or projector by either CEC or pre-loaded RS232 commands and will trigger the second relay port to switch a projector screen or window shade up.

Features and Benefits

• Stand alone signal sensing controller powers on/off display when signal is presented/removed
• Automates room peripherals when video signal is introduced to system via RS232 or CEC and Contact closures
• Passes HDMI & HDMI 2.0 signals up to 18G 4K60 4:4:4
• Built in CEC controller from HDMI out.
• Built in RS232 controller to control display device
• Built in RELAY control for room peripherals such as projector screen or window shade
• De-embeds audio to coax S/PDIF or Stereo
• Switch for EDID Management with 15 EDID presets

Applications

• Simply connect your HDMI source to trigger RS232 and relay commands
• Automated system control for small HDMI applications
• Small Boardroom, Huddle Room, Education applications
• Residential Flat Panel and theater control
