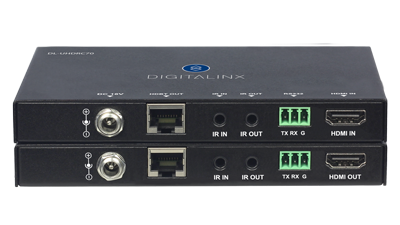

DL-UHDRC70 DigitaLinx HDBaseT TX/RX Set with reclocking feature for cable box and media player compatibility

DL-UHDRC70 Summary

The DigitaLinx DL-UHDRC70 is an re-clocking HDBT extender system that is compatible with source devices that does not support clock stretching such as older cable set top boxes. The DL-UHDRC70 can extend HDMI up to 70m / 230' and also extends bi-directional IR as well as RS232. Supports 7.1 DTS Master HD and Dolby True HD.

Features and Benefits

• Complete set includes TX, RX, mounting tabs, IR flasher/sensor, & power supply
• Extend HDMI signals up to 4K up to 100m (4K 70m / 1080P 100m) w/ Re-Clocking Circuitry for maximum device compatibility such as cable boxes and streaming players
• Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)
• Supports HDMI 2.0+, HDR and HDCP 2.2
• Re-clocking feature allows for compatibility with 4K media players such as Roku and Amazon, cable set top boxes, and any other HDMI source
• Cat5E/6 Cable 1080P 60M, 4K60 4:2:0 35M
• Cat6/7 Cable 1080P 70M, 4K604:2:0 40M
• Bi-directional power can be applied to either end
• Supports 7.1 DTS Master HD and Dolby True HD
• Locking Power Supply Connector
• LED indicators for power, HDCP, and HDBaseT link

Applications

• Residential, Hospitality, House of Worship
• Extend HDMI from problematic Cable / Sat boxes & Streaming players
