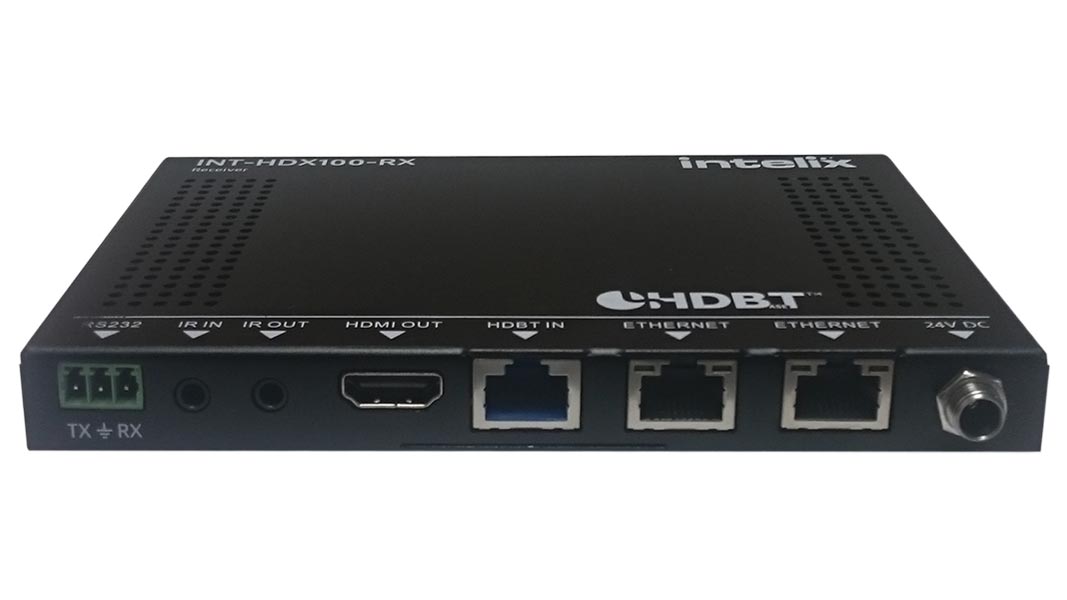

The Intelix INT-HDX100-RX extends HDMI over a single solid core shielded Category 5e or greater cable using the Valens VS100RX HDBaseT chip. The INT-HDX100-RX supports 1080p, full 3D or 4k x 2k video signals up to 100 meters (328 feet) including multichannel audio and HDCP 1.4/2.2. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender series include , power over HDBaseT (PoH), bidirectional IR, bidirectional RS232, and Ethernet pass-through with a 2-port network switch.
Flexible power design allows the INT-HDX100 series extenders to be powered at either the TX or RX end, and only one power supply is required. The power supply is included with the extender. The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make the INT-HDX100 compatible with most control systems. The IR emitter (DIGIB-EMT) and IR receiver (DIGIB-EYE) are sold separately. The two-port network switch on the INT-HDX100-RX allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation.
The INT-HDX100 series extenders are compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.
Features and Benefits
- Extends HDMI over a single solid core shielded Category 5e or greater cable using the Valens VS100TX HDBaseT chip
- Supports 1080p, full 3D or 4k x 2k video signals up to 100 meters (328 feet) including multichannel audio and HDCP 1.4/2.2

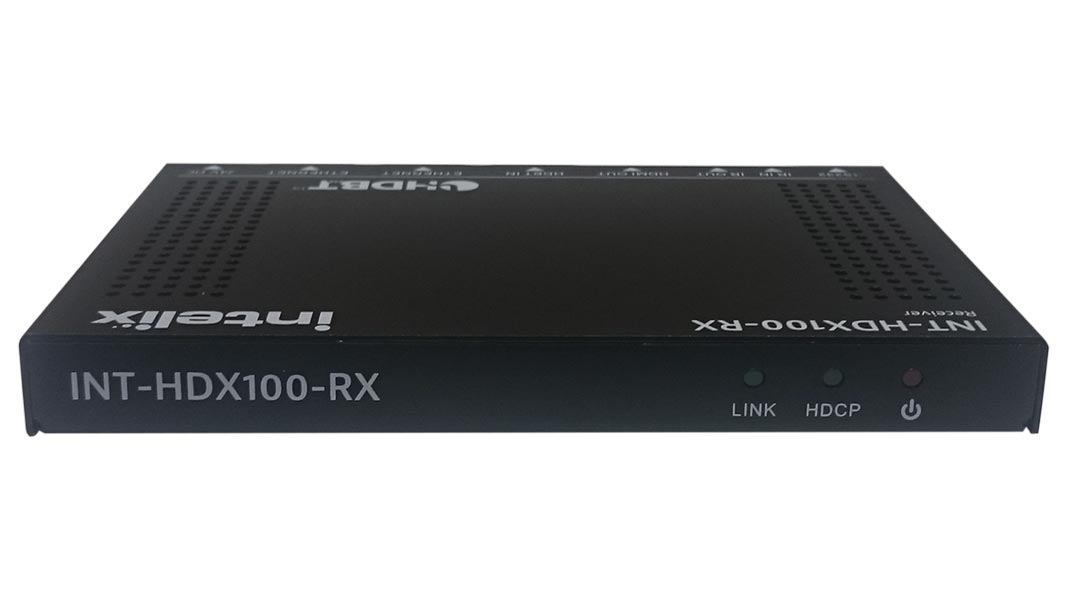

- Built-in surge protection and diagnostic LEDs
- Power over HDBaseT (PoH)
- Bidirectional IR and RS232
- Ethernet pass-through
- 2-port network switch.
Included Accessories
- Extender
- Locking Power Supply with Power Adapters
- Two Mounting Rails with Screws
- 3-pole Removable Terminal Block
- Installation Guide
