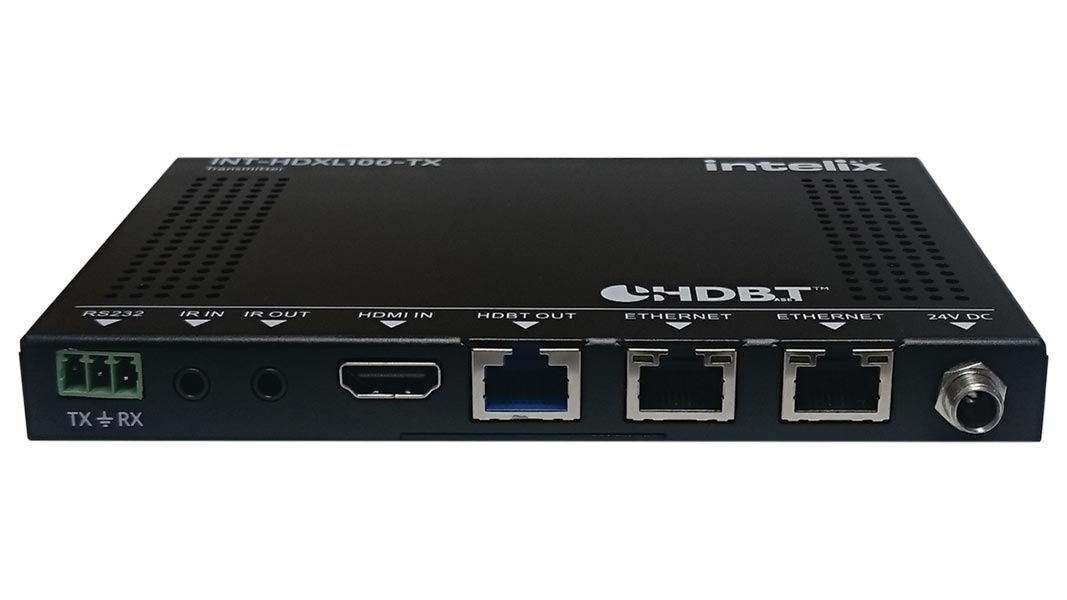

INT-HDXL100-TX 492 ft (150M) Slim HDBaseT Extender - Transmitter

150M Slim HDMI, IR, RS232 and Ethernet HDBaseT Extender - Transmitter

Hdmi extender-transmitter, 1080p, video signals, multichannel audio up to 150m. Power over HDBaseT (PoH) Bi-directional RS232 and IR.

The Intelix INT-HDXL100-TX extends HDMI over a single solid core shielded Category 5e or greater cable using the Valens VS100TX HDBaseT chip. The INT-HDXL100-TX supports 1080p video signals up to 150 meters (492 feet) including multichannel audio and HDCP 1.4/2.2. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of the new extender series include , power over HDBaseT (PoH), bidirectional IR, bidirectional RS232, and Ethernet pass-through with a 2-port network switch.

Flexible power design allows the INT-HDXL100 series extenders to be powered at either the TX or RX end, and only one power supply is required. The power supply is included with the extender. The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make the INT-HDXL100 compatible with most control systems. The IR emitter (DIGIB-EMT) and IR receiver (DIGIB-EYE) are sold separately. The two-port network switch on the INT-HDXL100-TX allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation.

The INT-HDXL100 series extenders are only compatible with other HDBaseT devices that operate in Long Reach mode, such as INT-HDXL100 and DIGI-HDXL series products by Intelix.

Features and Benefits

• Extend HDMI over a single solid core shielded Category 5e or greater cable using the Valens VS100TX HDBaseT chip
• Supports 1080p video signals including multichannel audio and HDCP 1.4/2.2
• Support signals up to 150 meters (492 feet)
• Built-in surge protection and diagnostic LEDs
• Power over HDBaseT (PoH)
• Bidirectional IR
• Bidirectional RS232
• Ethernet pass-through
• 2-port network switch

Supporting Documents

 INT-HDXL100 Install Guide

Contact Us for Special Pricing

Compatible Receiver

 INT-HDXL100-RX 492 ft (150m) Slim HDMI, IR, RS232 and Ethernet HDBaseT
