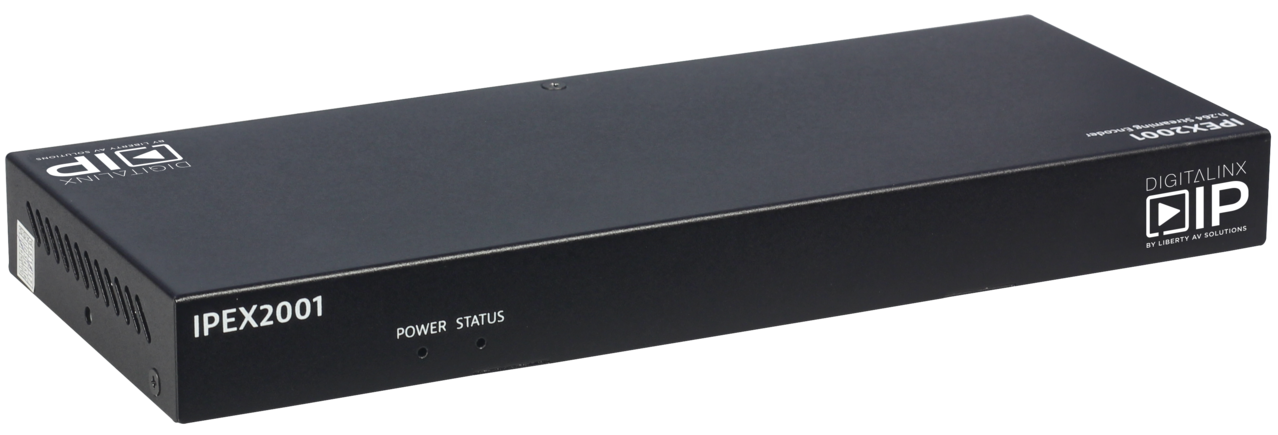

IPEX2001 HDMI Over IP Encoder Scalable 1080P Solution w/ full Matrix & Video Wall Capability

All projects qualify for quantity pricing - Let RF-AV build your system for you

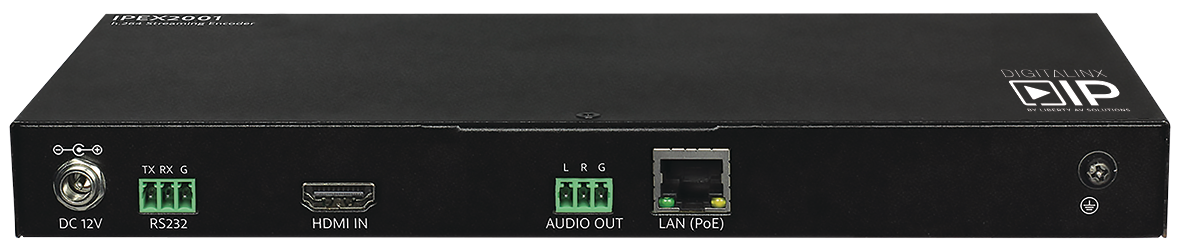

The IPEX2001/2002 transmits HDMI video and audio over a gigabit IP network using h.264 AVC encoding with a data rate up to 30 Mbps. The IPEX2001 supports video signals up to 1920x1200 at 60 Hz. The IPEX2001 outputs two video streams: one large IP stream at the native content resolution and a smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad. An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content.

The IPEX2001/2002 supports PoE and can be powered remotely by compatible power source equipment, such as a PoE Ethernet switch, eliminating the need for a nearby power outlet. Encoding control provides adjustments for encoding bit rate and quality. The RS232 port operates in a pass-through capacity to control a third party device such as a projector

Features and Benefits

• Transmits HDMI video and audio over a gigabit IP network using H.264 AVC encoding with a data rate up to 30 Mbps
• Supports video signals up to 1920x1200 at 60 Hz
• Outputs two video streams:
  • One large IP stream at the native content resolution
  • One smaller video stream at 352x288 at 5 Hz to easily view a preview of the content on PC software or an iPad
• An analog audio output port de-embeds the audio from the HDMI content, while still streaming the audio with the video content
• Supports PoE
• Can be powered remotely
• Encoding control provides adjustments for encoding bit rate and quality
• RS232 port operates in a pass-through capacity
• One complete DigitalinxIP 2000 series system will require the use of one IPEXCB control interface no matter how many encoders / decoders are used
• Free 3rd party control drivers available for download

Applications

• Video Distribution, Digital Signage, Restaurant, Bar, Entertainment, Hospitality
• Large Scale HDMI distribution
• Video Wall
