Liberty LLINX-U Grey 18/2 Power 22/2 Data Cresnet Spec - 500 ft spool

500 ft spool of Liberty LLINX-U non-plenum cable

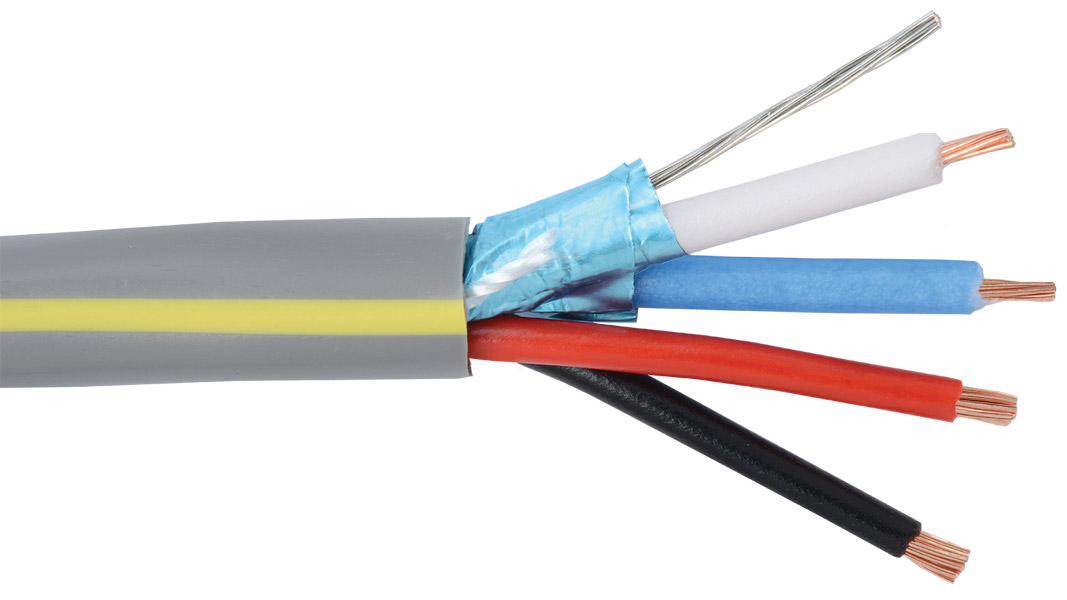

Composite cable consisting of a 22 AWG stranded, twisted and shielded data pair and an 18 AWG stranded, twisted, and unshielded power pair overall jacketed

LLINX-U Features and Benefits

• Data Pair: 22 AWG stranded, twisted, shielded
• Data Pair: 105 Ohm, 12.5 pF/FT low capacitance
• Power Pair: 18 AWG stramded, twisted, unshielded
• Data and Power Components cabled on a common axis
• Ripcord
• FR-PVC, Flame rated PVC Alloy outer jacket
• NEC CM, CEC CMG FT4, RoHS Compliant

LLINX-U Applications

• Non-Plenum RS-232C, RS-422, RS-485 plus low voltage power
• Non-Plenum Analog and Digital Audio

Liberty LLINX-U construction and Cresnet applications

Liberty LLINX-U combines an 18 AWG power pair with a shielded, twisted 22 AWG data pair and a separate drain wire. Its CM/CMG FT4 jacket is non-plenum. Choose cable with the jacket rating required for the installation.

For a Cresnet installation, follow the connected equipment's wiring instructions and check the power available for the devices on each cable run. Cable length, connected load, power-conductor size and supply arrangement affect the design. The length purchased is not a guaranteed operating distance.

Use the official Cresnet wiring guide for terminal connections and drain treatment, and the power-planning guide to check the system layout.

• Cresnet wiring and connectors
• Cresnet power planning
• Liberty LLINX-U cable specifications
