1000 ft Lutron QSH-CBL-L crossover | Liberty LLINX-U-HP

Direct drop in for Lutron QSH-CBL-L QS cable

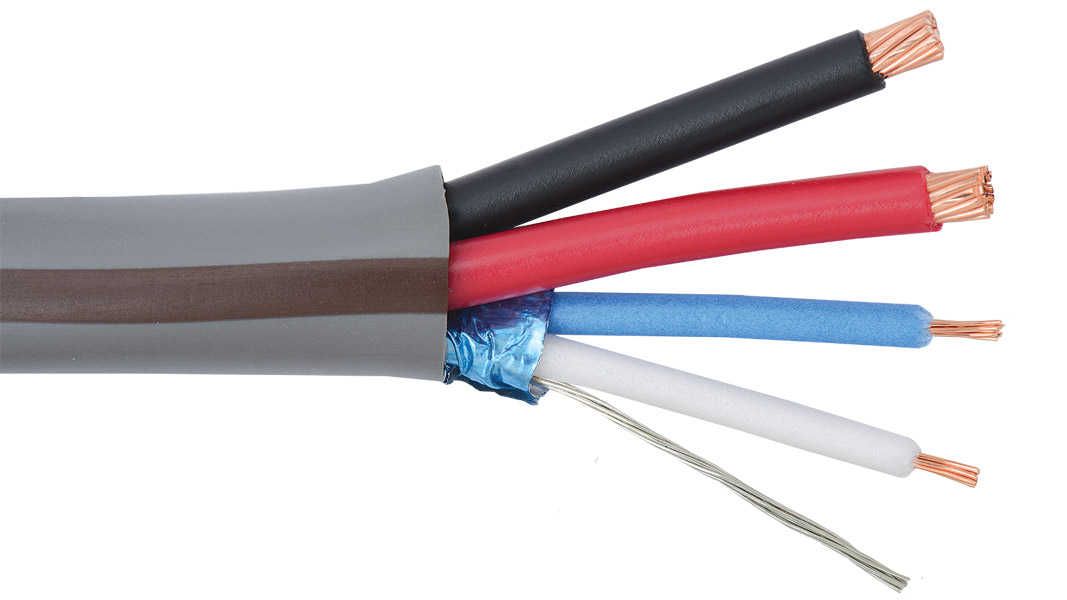

OEM Systems Universal Control 22 AWG 1-Pair Shielded and 12 AWG 2-Conductor Composite cable

Features and Benefits

• Data Pair: 22 AWG stranded, twisted, shielded
• Data Pair: 105 Ohm, 12.5 pF/FT low capacitance
• Power Pair: 12 AWG stranded, twisted, unshielded
• Data and power components cabled on a common axis
• Ripcord
• FR-PVC, flame rated PVC alloy outer jacket
• NEC CL3, RoHS compliant

Applications

• High power >300W, longer distance OEM systems support
• UP to 500 feet for 1 Lutron QS drive unit
• Non-plenum RS-232C, RS-422, RS-485 plus low voltage power
• Non-plenum analog and digital audio
