M1042-500 2C 20A SHLD LDPE/TPE BLK JKT

M1042-500 2C 20A SHLD LDPE/TPE BLK JKT

SKU / MPN: M1042-500
GTIN:
Liberty AV Solutions
$768.00
$768.00
Tax included. Shipping calculated at checkout.

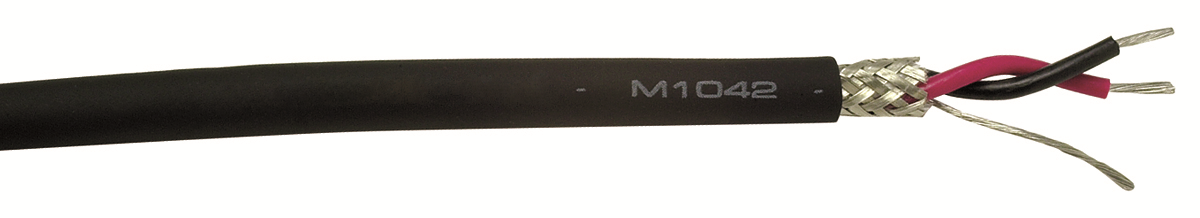

500 ft of Gepco M1042

Microphone Cable: Heavy Duty





  Extra-tough jacket and oversized heavy-duty construction for exceptional ruggedness and durability. A tightangle, full-coverage braid, thick insulation wall, and large twenty gage conductors give the M1042 improved flex-life, while providing excellent noise rejection and low attenuation. Mutual capacitance is lower than typical microphone cable to reduce the high frequency roll-off that occurs in long runs of mic level signals. Ideal for sound reinforcement and remote production in hostile environments.


FEATURES & BENEFITS

Durable & Rugged

Extra-low Attenuation

Flexible

Heavy Gage Conductors

Polyethylene Dielectric

Full Copper Braid Shield

Drain Wire for Quick Shield Termination

All-weather TPE Master Jacket


APPLICATIONS

Microphone or Line Level Balanced Analog Audio

Portable Microphone Cables

Hostile Environments

Ideal for Extended Distance Runs



 Mechanical Specifications
  Part #
 # of
 Pairs
  Nominal
  OD
Conductors
Insulation
(type, wall thick)/
Color Code
   Shield
 Drain Wire
  Jacket
  (type, colors)
 Approx.
  Weight

   M1042
 1
  .255"
20 AWG (26x34)
Stranded TC
 PE, .020" /
 Red & Black
   95% TC Braid
 22 AWG (16x34)
 Stranded TC
  TPE, Black
 40 lbs/Mft
