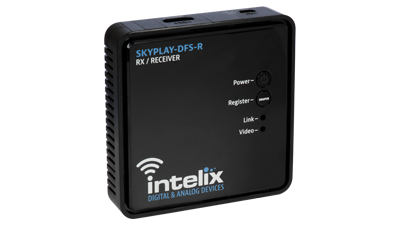

SKYPLAY-DFS-R Wireless HDMI Receiver with DFS

Wireless HDMI receiver Distribution system. Dynamic Frequency Selection. HDCP 2.0 compliant. Wirelessly distribute HDMI up to 100ft. IR control.

SKYPLAY-DFS-R Summary

The SKYPLAY-DFS distributes HDMI high-definition audio and video up to 30 meters (100 feet) in both point-to-point, point-to-many, and many-to-point configurations. Each transmitter is compatible with up to 4 receivers and each receiver can be paired to switch up to 4 transmitters.

The SKYPLAY-DFS-S can transmit 1080p video with stereo or multichannel audio. The SKYPLAY-DFS-R can transmit IR signals from the remote location to control the source device. The SKYPLAY-DFS transmitter and receiver must be paired together to pass video.

Amimon Pro transmission and AES 128-bit encrypted processing ensure the integrity of digital signals and real-time processing (less than one frame), whether transmitting in open spaces or through light construction, such as framed drywall walls.

The SKYPLAY-DFS radios are configured for US and Canada operation.

Features and Benefits

• Wirelessly distribute HDMI up to 100 feet; IR control of source
• Signals can go through standard sheet rock walls
• Addressable transmitters: Up to 4 transmitters per receiver
• Less than 1 frame latency (17 milliseconds)
• HDCP 2.0 compliant, dynamic EDID passthrough, multichannel audio support
• DFS (Dynamic Frequency Selection) for improved density and reliability

Applications

• Ideal for residential,commercial, corporate A/V, education, digital signage, hospitality, and house of worship
• Send HDMI signal from a source to a destination device without a wired connection
• Wireless HDMI switcher - up to 4 transmitters

Note: The SKYPLAY-DFS-R radios are configured for North America operation. For Europe and Australia operation, please select the SKYPLAY-DFS-R-EU.
