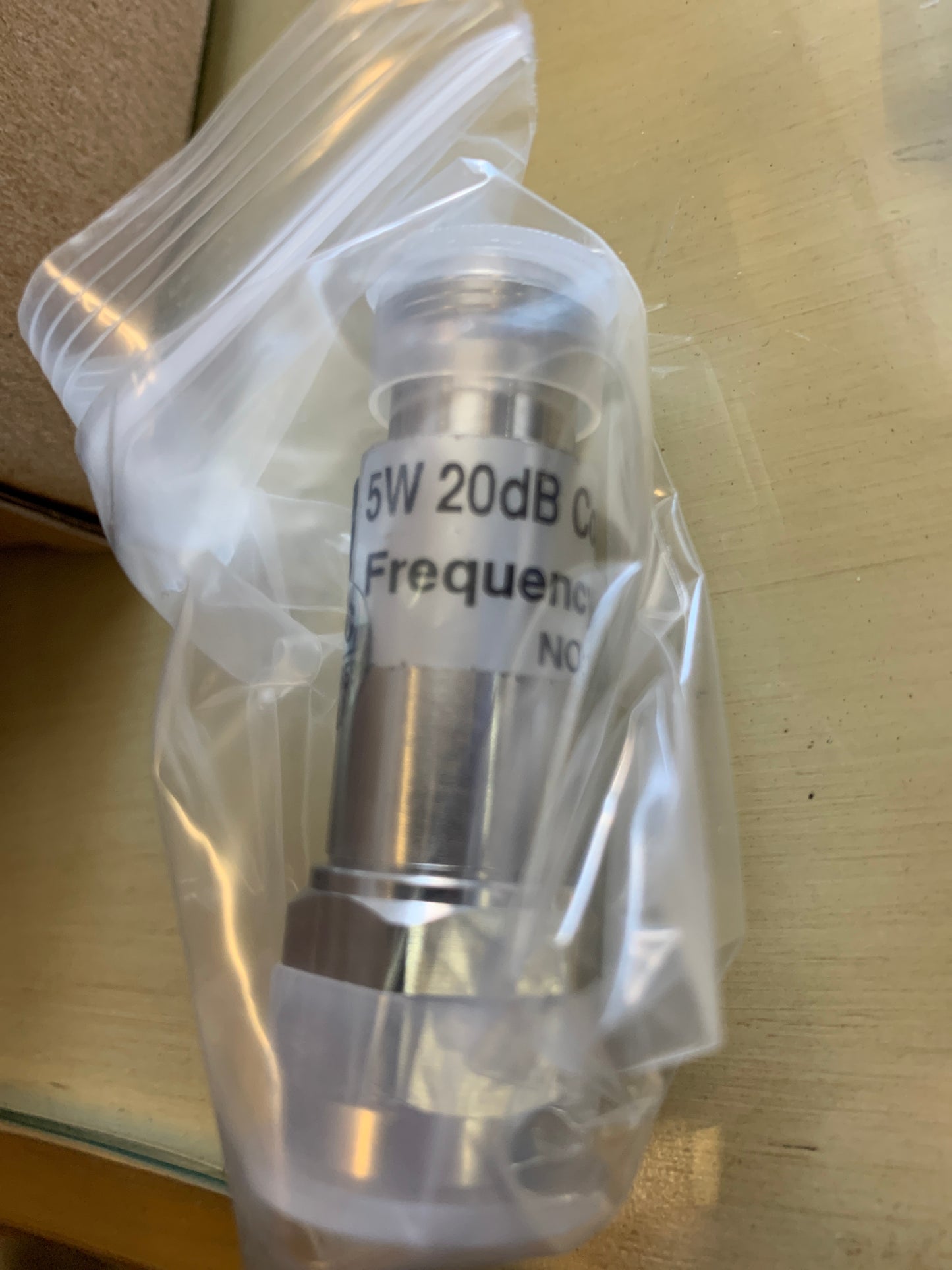

SureCall 20 dB Attenuator
Connect attenuators in between the signal booster and the outside antenna cable to automatically lower the signal strength by 20 dB. Reduce the signal level coming from or going to cell towers with the addition of one or more attenuators.
- N-Connectors
- High quality, low-loss connector
- Weather resistant
- Commercial grade
SC-ATNR-20 Product Specifications
|
Part Number |
SC-ATNR-20 |
|
Frequency Range |
DC-3GHz |
|
Attenuation |
20 dB |
|
Attenuation Accuracy |
± 0.8 dB |
|
VSWR |
≤1.2 |
|
Power Consumption |
5W |
|
Impedance |
50 Ohm |
|
Dimensions |
20 x 58 mm |
|
Weight |
2.26 oz |
|
Operating Temperature |
-67°F to 257°F |
|
Connectors |
N-Female |
