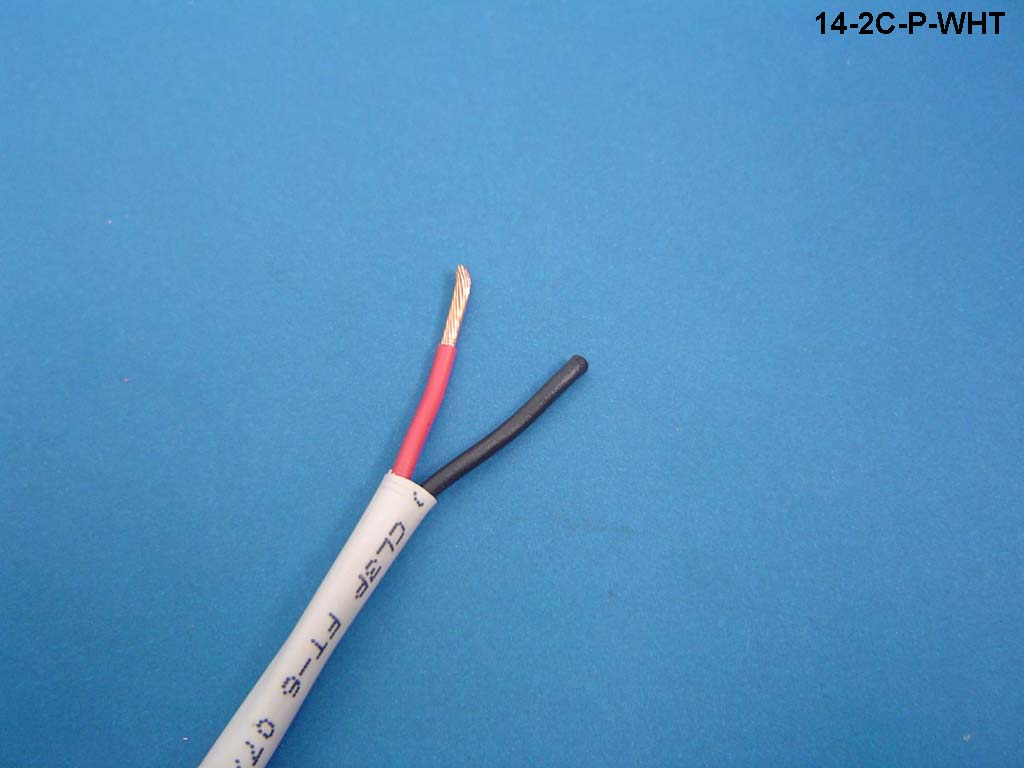

Liberty 14-2C-P-WHT 14 AWG plenum speaker cable white

1000 ft spool of Liberty Wire & Cable (LWC) 14-2C-P-WHT

Features and Benefits

• 14 AWG Stranded Annealed Bare Copper Conductors
• 2 Conductor
• Plenum rated PVC Alloy insulation
• Twisted, unshielded
• Plenum rated PVC Jacket
• NEC CL3P, CEC CMP FT6, RoHS Compliant
• White

14-2C-P-WHT Applications

• Speaker Level Audio Distribution
• 70V Speaker systems
• DC Power, Class 2 and Class 3 power, system control

14-2C-P-WHT is comparable to:

Contractors contact us for wholesale pricing

DALI and DALI-2 Lighting Control Bus Cable

This 14 AWG, 2-conductor cable is a practical option for DALI and DALI-2 lighting-control bus wiring when its CL3P plenum-rated rating, conductor size, run length, and installation method meet the project requirements and local electrical code. DALI carries bus power and digital communication on one adjacent pair, and the bus connection is polarity-insensitive.

Run-length guidance: The DALI Alliance recommends 1.5 mm² (15 AWG) two-core cable for up to 300 m (984 ft) between the two farthest devices at the maximum 250 mA bus current. This 14 AWG cable provides greater conductor area than that recommendation, but the system designer must still confirm distance, voltage drop, terminal capacity, and installation method.

Important: This is bulk cable suitable for DALI bus applications; it is not a DALI-2 certified control device. Use it for the control bus, not branch-circuit power. Verify CL3P plenum-rated, raceway, separation, and local-code requirements, especially near mains wiring.
