Liberty 18-CMP-VID-COAX-BLK Black Serial digital RG6 plenum

Liberty 18-CMP-VID-COAX-BLK Black Serial digital RG6 plenum

GTIN: 601446133736
Liberty AV Solutions
Regular price
Sale price
Unit price
Tax included. Shipping calculated at checkout.

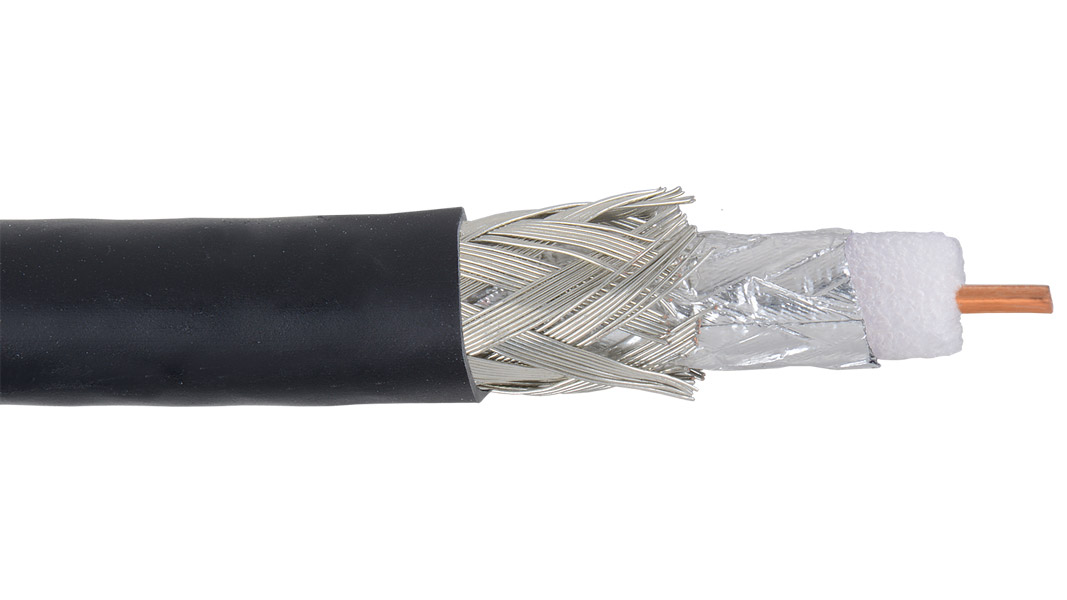

1000 ft of Liberty Wire & Cable (LWC) Plenum SDI RG6 in Black

18-CMP-VID-COAX-BLK Features and Benefits

  • 18 AWG solid annealed bare copper conductor
  • Gas-injected cellular fluoropolymer dielectric
  • 100% coverage aluminum/poly/aluminum foil inner shield
  • 95% coverage tinned copper braid shield
  • Plenum rated PVC jacket
  • 4.5 GHz sweep, very low loss, excellent SRL
  • NEC CMP, CEC CMP FT6, RoHS compliant
  • 1000 foot spools

18-CMP-VID-COAX-BLK Applications

  • SMPTE Serial Digital Video, AES3id Digital Audio
  • S/PDIF digital audio, Subwoofer audio
  • All Base Band Video and Unbalanced Analog Audio
  • RF Modulated Signals, CATV, DBS, MATV

18-CMP-VID-COAX-BLK is comparable to:

Manufacturer Part Number
Belden 1695A
Extron 22-164-02
Extron 22-164-03
West Penn 256350
Gepco VSD2001TS


Contact Us for Special Pricing
