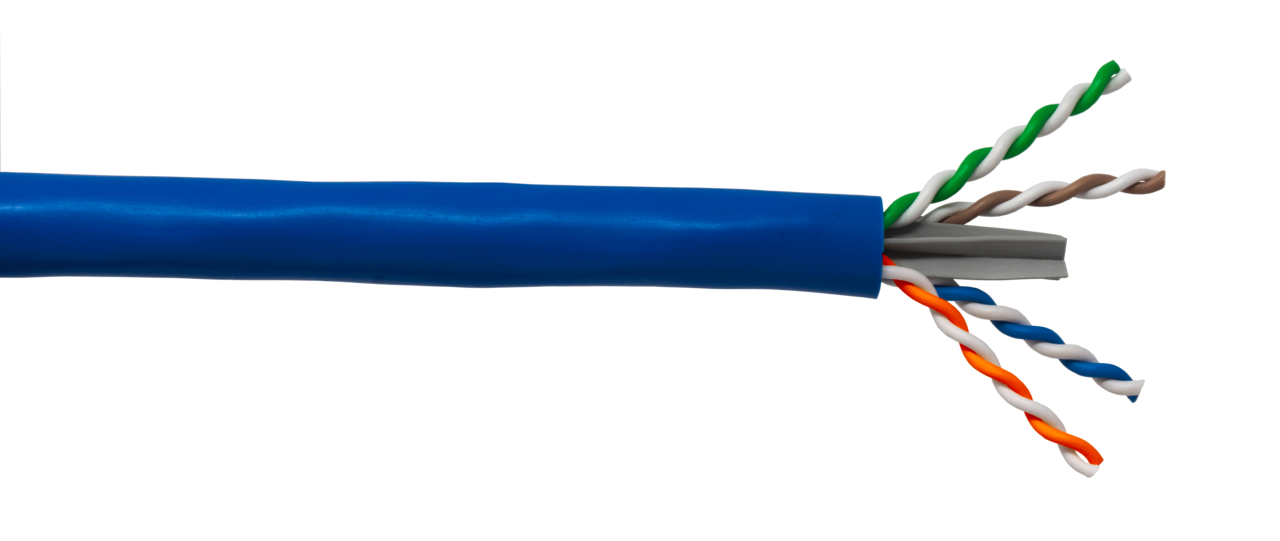

1000 ft spool of Liberty Wire & Cable Cat 6A Un-Shielded Non-Plenum
Features and Benefits
- 23 AWG solid bare copper conductors
- HDPE, high density polyethylene insulation
- Varying lay twisted pairs cabled on a common axis

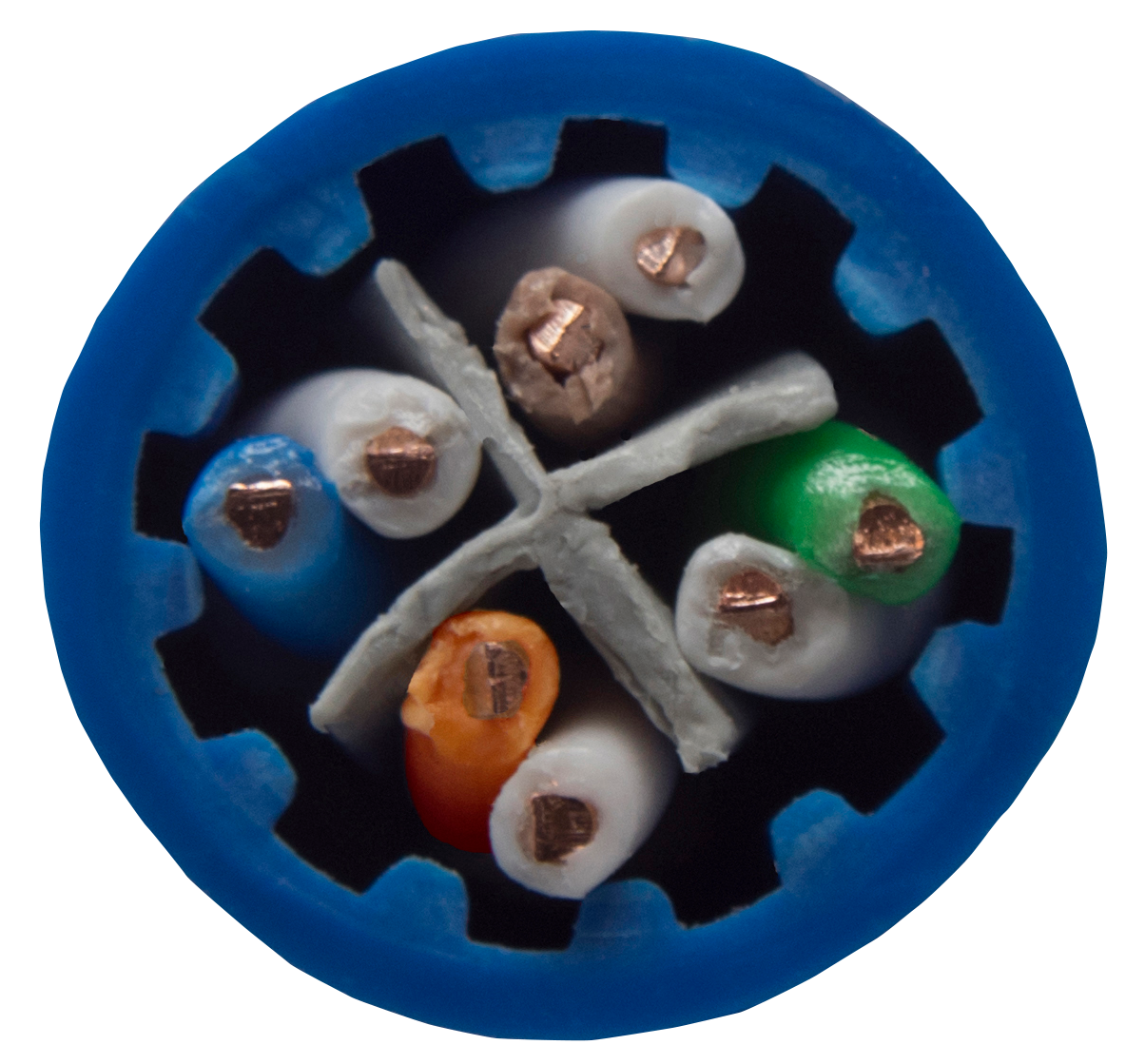

- Separator with each pair in its own interstice
- FR-PVC, flame rated polyvinyl chloride jacket
- Jacket includes spacing feature
- Third party (UL, ETL) certified to category 6A performance
- Fully certified to 500 MHz
- NEC rated CMR, CEC rated CMG FT4, RoHS compliant
- 1000 foot spools standard
Applications
- Non-plenum LAN 10/100/1000/10GBaseT networking
- Balun infrastructure, voice, voice over IP cabling
- Video, audio, infraRed, IP control, modulated RF video
- PoE, PoE+
Call for Special Pricing
Items to Field Terminate this Cable
ConnecTec CAT is the preferred connector type for speed and ease of use.
 |
FTPU60A - Category 6a Field Terminable RJ45 Plug (male). No Special Termination Tools! |
 |

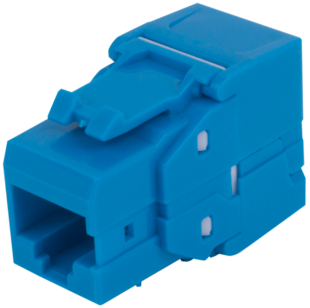

1A68TP0A0-WH Keystone compatible Category 6A U/UTP 180 degree punch down insert |
