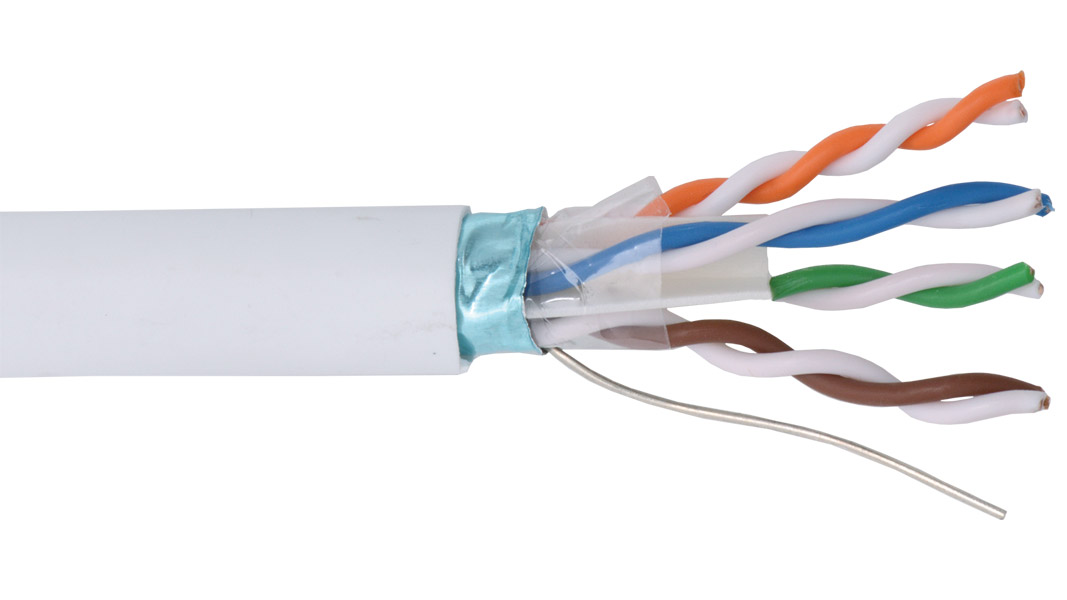

Liberty 24-4P-L6ASH-WHT-500 White Category 6A F/UTP 500 ft

500 ft spool of Liberty Wire & Cable (LWC) part number 24-4P-L6ASH-WHT

24-4P-L6ASH-WHT-500 Features and Benefits

• Solid annealed bare copper conductors
• High density polyethylene insulation
• 4 pairs twisted in varying lays and cabled
• Overall aluminum/poly foil shield with drain
• Flame rated PVC jacket
• TIA/EIA-568-C Category 6A
• NEC CMR, CEC CMR FT4, RoHS compliant

24-4P-L6ASH-WHT-500 Applications

• Horizontal LAN 10/100/1000/10GBaseT ethernet
• Audio, video, infrared, IP control
• Balun infrastructure, voice, voice over IP
• PoE, HDBaseT, analog and digital media

Items to Field Terminate this 24-4P-L6ASH-WHT-500 Cable from Liberty

ConnecTec CAT is the referred connector type for speed and ease of use.

	FTPSA0A - Category 6a Shielded Field Terminable RJ45 Plug (male). No Special Termination Tools!
	1A68TPZA0 Keystone compatible Category 6A STP 180 degree punch down insert
