24-4P-L6SH-BLK Black Category 6 F/UTP EN series 23 AWG 4 pair shielded cable

1000 Ft Spool of Liberty Wire & Cable Non-Plenum Shielded Category 6 Black

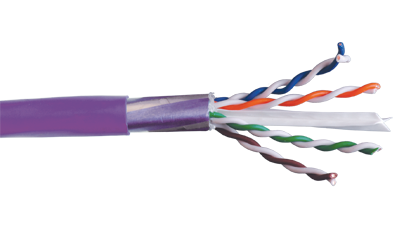

(purple pictured)

Features and Benefits

• 23 AWG Solid Bare Copper Conductors
• HDPE, High Density Polyethylene Insulation
• Color Striping on white conductors
• Varying lay twisted pairs cabled on a common axis
• 100% Foil Shield with foil and drain wire facing in
• Ripcord under the jacket
• FR-PVC, Flame rated Polyvinyl Chloride Jacket
• Third Party (UL, ETL) certified to Category 6 performance
• NEC Rated CMR, CEC Rated CMR, CMG FT4, RoHS Compliant

Applications

• Non-Plenum Horizontal LAN 10/100/1000BaseT Networking
• Balun Infrastructure, Voice, Voice over IP cabling
• Video, Audio, InfraRed, IP Control
• PoE, HDBaseT, Analog and Digital Multimedia

Call for Special Pricing

Items to Field Terminate this Cable

ConnecTec CAT is the referred connector type for speed and ease of use.

	FTPSA0A - Category 6 Shielded Field Terminable RJ45 Plug (male). No Special Termination Tools!
	2A68KPS00 Keystone compatible Category 6 STP 180 degree punch down insert
