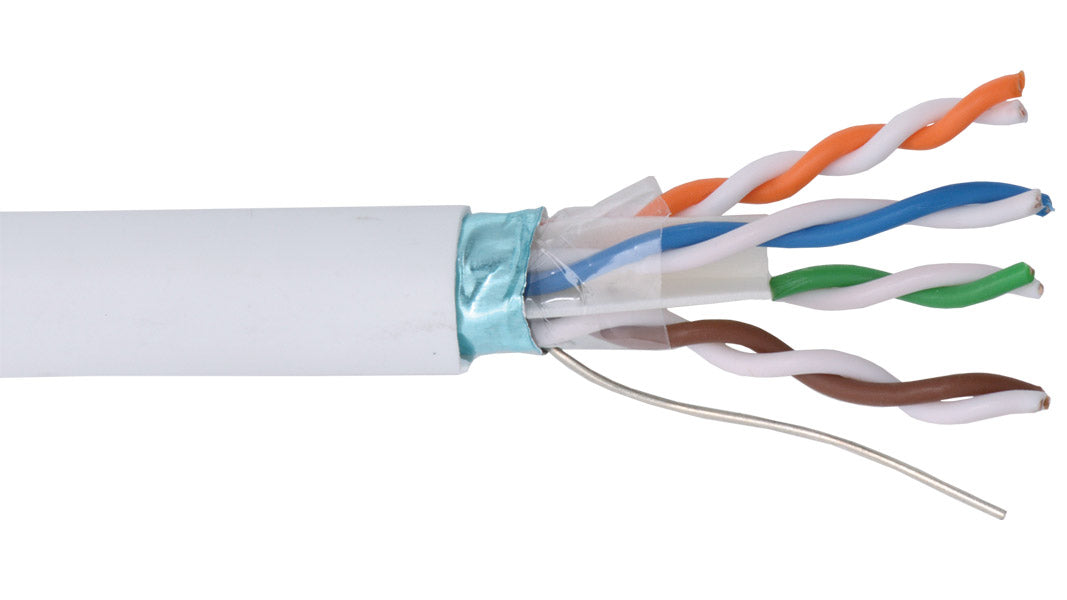

1000 Ft Spool of Liberty Wire & Cable 24-4P-P-L6ASH-BLK Plenum Shielded Category 6A Black
(white pictured)
24-4P-P-L6ASH-BLK Features and Benefits
- 23 AWG Solid Bare Copper Conductors
- FEP, Fluorinated Ethylene Propylene (Teflon(TM))
- Varying lay twisted pairs cabled on a common axis
- 100% Foil shield with foil and drain facing in
- Ripcord under the jacket
- PL-PVC, Plenum rated Polyvinyl Chloride Alloy Jacket
- Third Party (UL, ETL) certified to Category 6A performance NEC Rated CMP, CEC Rated CMP, CMG FT6, RoHS Compliant
24-4P-P-L6ASH-BLK Applications
- Plenum Horizontal LAN 10/100/1000/10GBaseT Networking
- Balun Infrastructure, Voice, Voice over IP cabling
- Video, Audio, InfraRed, IP Control, PoE, HDBaseT
- Analog and Digital Multimedia Extension and routing
Contractors contact us for wholesale pricing
Items to Field Terminate this Cable
ConnecTec CAT is the referred connector type for speed and ease of use.
 |
FTPSA0A - Category 6a Shielded Field Terminable RJ45 Plug (male). No Special Termination Tools! |
 |
1A68TPZA0 Keystone compatible Category 6A STP 180 degree punch down insert |
24-4P-P-L6ASH-BLK is comparable to:
| Manufacturer | Part Number |
|---|---|
| Belden | 10GX63F |
| West Penn | 254246AF |
