9020126 Yellow Somfy SDN Non-Plenum Control Cable

9020126 Yellow Somfy SDN Non-Plenum Control Cable

$725.00 USD
$725.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Need help confirming the right cable? RF-AV can verify Liberty, Lutron, and Somfy equivalents before you order. Call (800) 239-0312 or request a quote for contractor terms.

Availability note: Products available for add-to-cart purchase are active for ordering. Cable may ship from RF-AV stock or vendor-direct depending on quantity, spool type, and current warehouse availability.

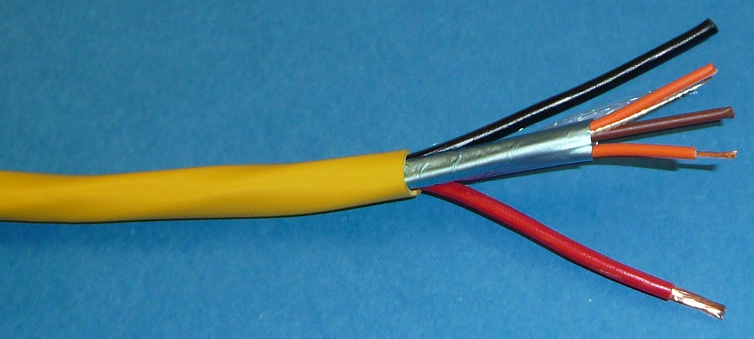

1000 ft spool of Liberty Wire & Cable (LWC) Somfy systems control cable

9020126?Features and Benefits

  • Somfy composite control and power cable
  • 14 AWG power pair
  • 22 AWG 3 conductor shielded triad for control
  • Extra thick jacketing for durability and pulling
  • NEC rated CL3R, RoHS II compliant
  • 1000 Foot spools standard

9020126?Applications

  • Somfy systems control cable for power and data
  • Shade and blind control cable
  • Non?plenum RS?232C, RS?485 simplex data and control
  • Non?plenum control and communication cable

9020126?Technical Specifications

Description

Composite cable consisting of a 22 AWG stranded, twisted and shielded data triad and a 14 AWG stranded, twisted, and unshielded power pair overall jacketed NEC type CL3R.??Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725

Component 1:

Electrical 22 AWG data triad 7?strand annealed bare copper conductors Foamed polyethylene insulation Wall thickness: 0.019" | 0.51mm Diameter: 0.068" | 1.73mm 100% aluminum/poly shield foil in 24 AWG 7?strand tinned copper drain wire

Component 2:

14 AWG power pair 41?strand annealed bare copper conductors Semi?rigid polyvinyl chloride insulation Wall thickness: 0.009" | 0.23mm Diameter: 0.092" | 2.34mm

Electrical

22 AWG DCR: 16.6???/ 1000' | 54.2??/KM Mutual capacitance: 12.5 pF/FT | 41.0 pF/M Shield DCR: 22.5???/ 1000' | 73.8??/KM Impedance: 100?? Voltage rating: 300V 14 AWG DCR: 2.07???/ 1000' | 6.79??/KM Maximum current: 8A@25?C

Color Code

Data triad: Orange, Orange w/White stripe, Brown Power pair: Red, Black

Packages

Reel: 1000' | 305M Weight: 56 Lbs/1000' | 84 Kg/KM

Assembly

Shielded data triad and power pair cabled on a??common axis

Installation

Pull Tension: 86 Lbs | 383 N Bend radius: 2.84" | 73mm unloaded Bend radius: 5.68" | 145mm loaded

Construct

Ripcord under jacket

Jacket

Polyvinyl chloride Colors: Yellow Wall thickness: 0.027" | 0.69mm Diameter: 0.284" | 7.21mm

Performance

14 AWG power:??1000 feet maximum

Final Outside Diameter (inches)

0.284
