    500 ft spool of Liberty Wire & Cable (LWC) Somfy systems control cable

    9020126 Features and Benefits

    • Somfy composite control and power cable
    • 14 AWG power pair
    • 22 AWG 3 conductor shielded triad for control
    • Extra thick jacketing for durability and pulling
    • NEC rated CL3R, RoHS II compliant
    • 500 Foot spools

    9020126 Applications

    • Somfy systems control cable for power and data
    • Shade and blind control cable
    • Non‐plenum RS‐232C, RS‐485 simplex data and control
    • Non‐plenum control and communication cable

    9020126 Technical Specifications

    Description

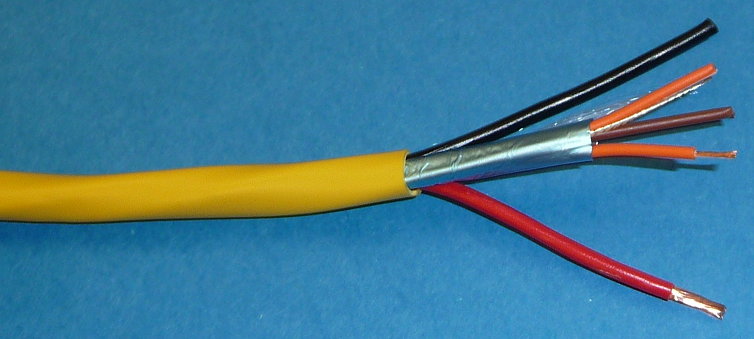

    Composite cable consisting of a 22 AWG stranded, twisted and shielded data triad and a 14 AWG stranded, twisted, and unshielded power pair overall jacketed NEC type CL3R.  Product manufactured compliant to the requirements of UL13 for installations and applications in accordance with NEC article 725

    Component 1:

    Electrical 22 AWG data triad 7‐strand annealed bare copper conductors Foamed polyethylene insulation Wall thickness: 0.019" | 0.51mm Diameter: 0.068" | 1.73mm 100% aluminum/poly shield foil in 24 AWG 7‐strand tinned copper drain wire

    Component 2:

    14 AWG power pair 41‐strand annealed bare copper conductors Semi‐rigid polyvinyl chloride insulation Wall thickness: 0.009" | 0.23mm Diameter: 0.092" | 2.34mm

    Electrical

    22 AWG DCR: 16.6 Ω / 1000' | 54.2 Ω/KM Mutual capacitance: 12.5 pF/FT | 41.0 pF/M Shield DCR: 22.5 Ω / 1000' | 73.8 Ω/KM Impedance: 100 Ω Voltage rating: 300V 14 AWG DCR: 2.07 Ω / 1000' | 6.79 Ω/KM Maximum current: 8A@25˚C

    Color Code

    Data triad: Orange, Orange w/White stripe, Brown Power pair: Red, Black

    Packages

    Reel: 500' | 305M Weight: 56 Lbs/1000' | 84 Kg/KM

    Assembly

    Shielded data triad and power pair cabled on a  common axis

    Installation

    Pull Tension: 86 Lbs | 383 N Bend radius: 2.84" | 73mm unloaded Bend radius: 5.68" | 145mm loaded

    Construct

    Ripcord under jacket

    Jacket

    Polyvinyl chloride Colors: Yellow Wall thickness: 0.027" | 0.69mm Diameter: 0.284" | 7.21mm

    Performance

    14 AWG power:  1000 feet maximum

    Final Outside Diameter (inches)

    0.284
