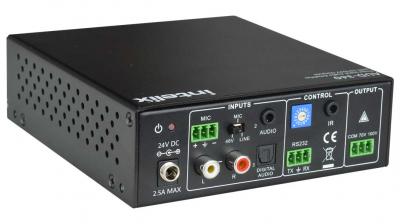

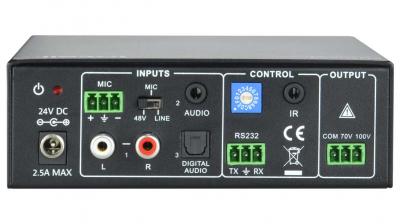

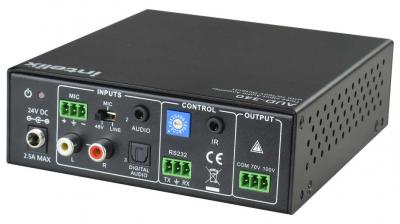

AUD-340 3 INPUT AUDIO 70/100V AMPLIFIER, 40W
AUD-340 3 INPUT AUDIO 70/100V AMPLIFIER, 40W
Couldn't load pickup availability
Availability note: Availability is subject to current manufacturer stock. For time-sensitive projects, call RF-AV at (800) 239-0312 for current lead time before ordering.
AUD-340 3 INPUT AUDIO 70/100V AMPLIFIER, 40W
Features and Benefits
- Two analog audio inputs; one digital audio input
- Microphone input with ducking or mixing
- Bass, treble adjustments
- Line input and/or microphone muting
- 70V or 100V output
- Available IR kit part number AUD-340-IR
Applications
- Commercial audio systems and solutions
- Ideal for corporate facilities, churches, schools
Product Summary
The Intelix AUD-340 is a 40 watt Class D amplifier with 70V or 100V outputs. The amplifier features two analog audio inputs, one digital audio input, and a balanced microphone input with ducking functions. Additional features of the AUD-340 include input and microphone volume control, bass and treble adjustments, microphone mixing with source audio, and three modes of microphone input support (48 dB gain, 48 dB gain with 48V phantom power, and line level). The AUD-340 has three methods of control: push button, RS232, and IR with the optional
AUD-340-IR accessory kit.
Brand: Liberty AV Solutions. Product family: INTELIX.
