Digitalinx HDMI, VGA, and USB 2.0 Extender with Display Control
4K 10.2G 100M 2 HDMI, VGA, & USB2.0 High Speed Auto switching Wall Plate extender set with audio pass-through and automated display control
DL-2H1V1U-WP-W Summary

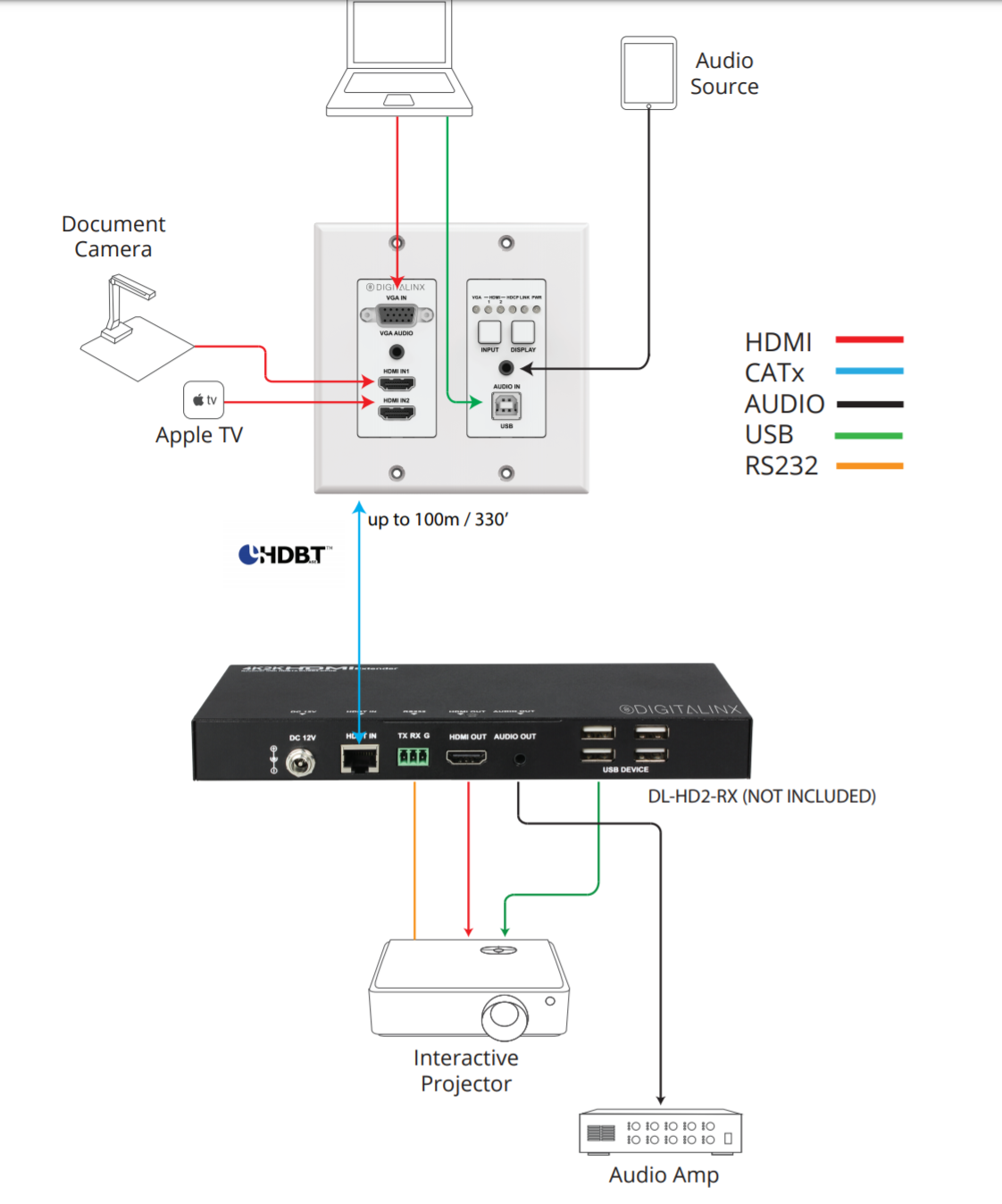

The DigitaLinx DL-2H1V1U-WP-W is a 3x1 auto switching HDBaseT 2.0 audio, video and USB transmitter that supports the long distance transport of HDMI, VGA and High Speed USB 2.0 signals up to 100 meters / 330’ using category cabling. The DL-2H1V1U-WP-W is 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color. An additional analog audio input is located on the wall plate that allows for independent audio pass through to a compatible Digitalinx HDBaseT receiver (not included). With 48V integrated PoH, the DL-2H1V1U-WP-W can be powered by the HDBaseT receiver with a power supply or the wall plate can be powered by a local DC power supply. The DL-2H1V1U-WP-W is ideal for applications where USB must be extended alongside HDMI, VGA video for interactive whiteboard display interactivity.
The DL-2H1V1U-WP-W gives you the ability to program and automate TV display / projector ON status by using pre-loaded RS232 commands or HDMI CEC whenever a video signal is introduced to the system using either HDMI or VGA input. It can also automate the display power OFF after a specified amount of time has passed when no video signal is present. It also gives you the ability to turn the display ON or OFF as well and switch from one input to another manually using the front panel buttons on the transmitter face plate.
NOTE: The DL-2H1V1U-WP-W HDBaseT transmitter must be used with the DL-HD2-RX or the DL-HD2A-RX HDBaseT 2.0 receiver (sold separately) to complete the circuit.
Features and Benefits
- Auto Switches & Extends HDMI, Analog Audio, and USB 2.0 up to 100m / 330’
- Integrated RS232 controller can automatically or manually power on/off display
- Supports resolutions up to 4K@60Hz 4:2:0 / 8 bit deep color
- Supports HDCP 2.2
- Pass-Through Analog audio port passes audio direct to audio output of receiver independent and regardless of video source
- Auto Switching and Front Panel Input and Display on/off Selection
- Supports remote PoE power from receiver
- NOTE: Requires the use of the DL-HD2-RX or DL-HD2A-RX receiver
Compatibility note ** Now Supporting "New" ActivPanel displays from Promethean!! Please contact Liberty support for more information!
Applications
- Education, Classroom, training room, corporate, conference room
- Anywhere HDMI switching/extension and USB extension is required including interactive display control extension, collaboration cameras, and mics
Compatible Reciever
 |
Digitalinx DL-HD2A-RX HDBaseT Receiver w/USB Hub and Audio De-Embedding |
