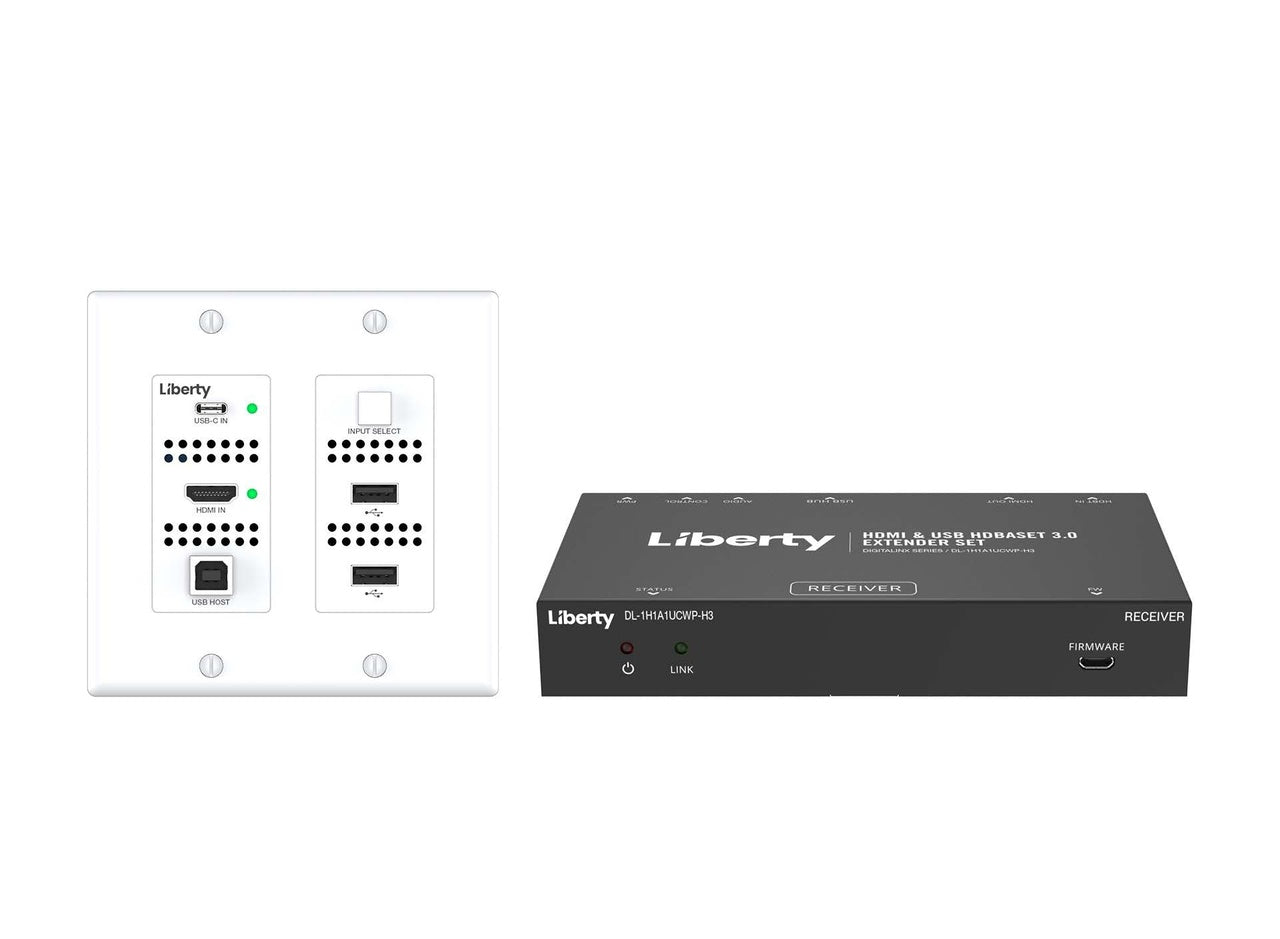

DL-1H1A1UCWP-H3 Digitalinx Series 4K60 HDMI & USB-C HDBaseT 3.0 Wall Plate Extension Set
Features and Benefits

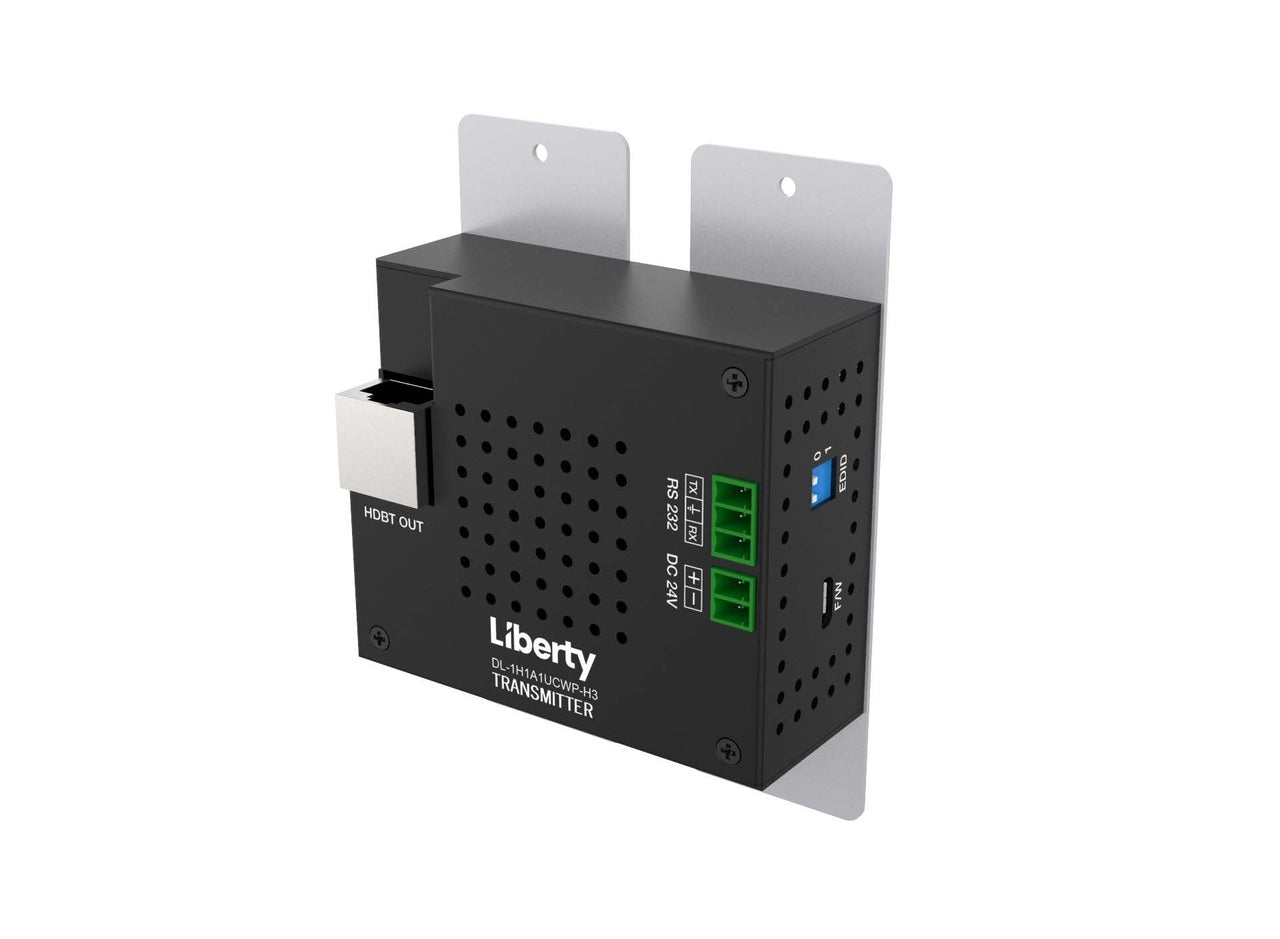

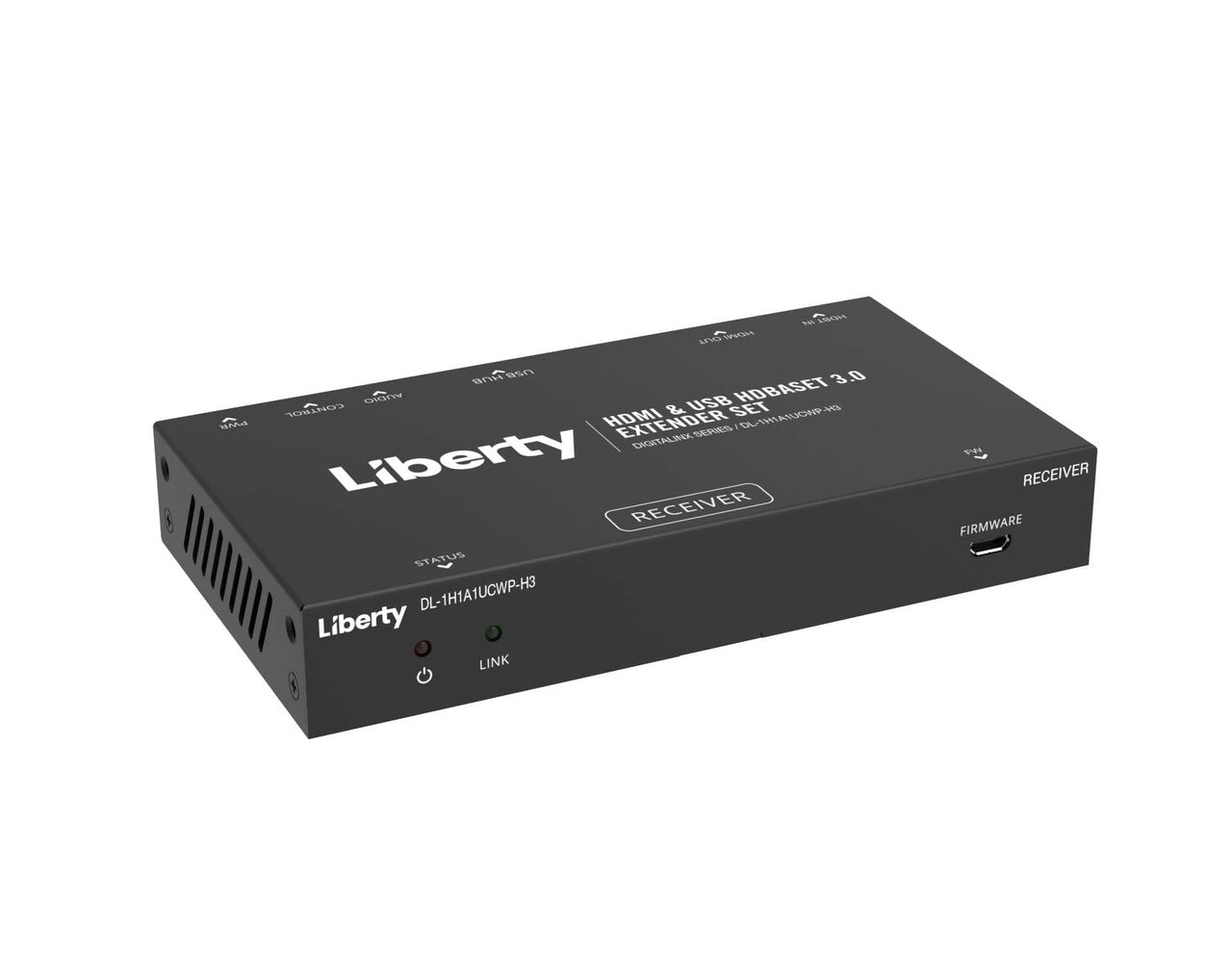

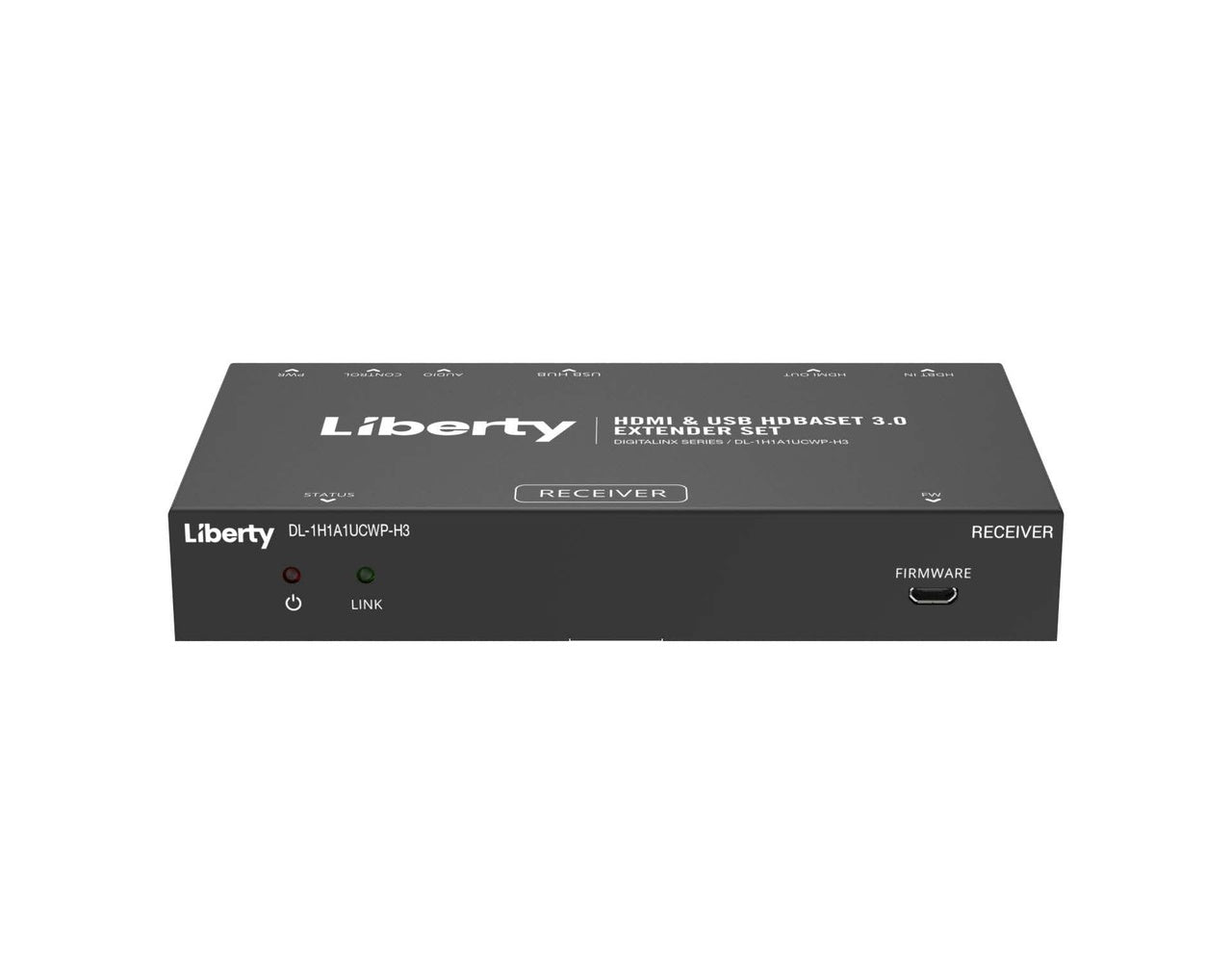

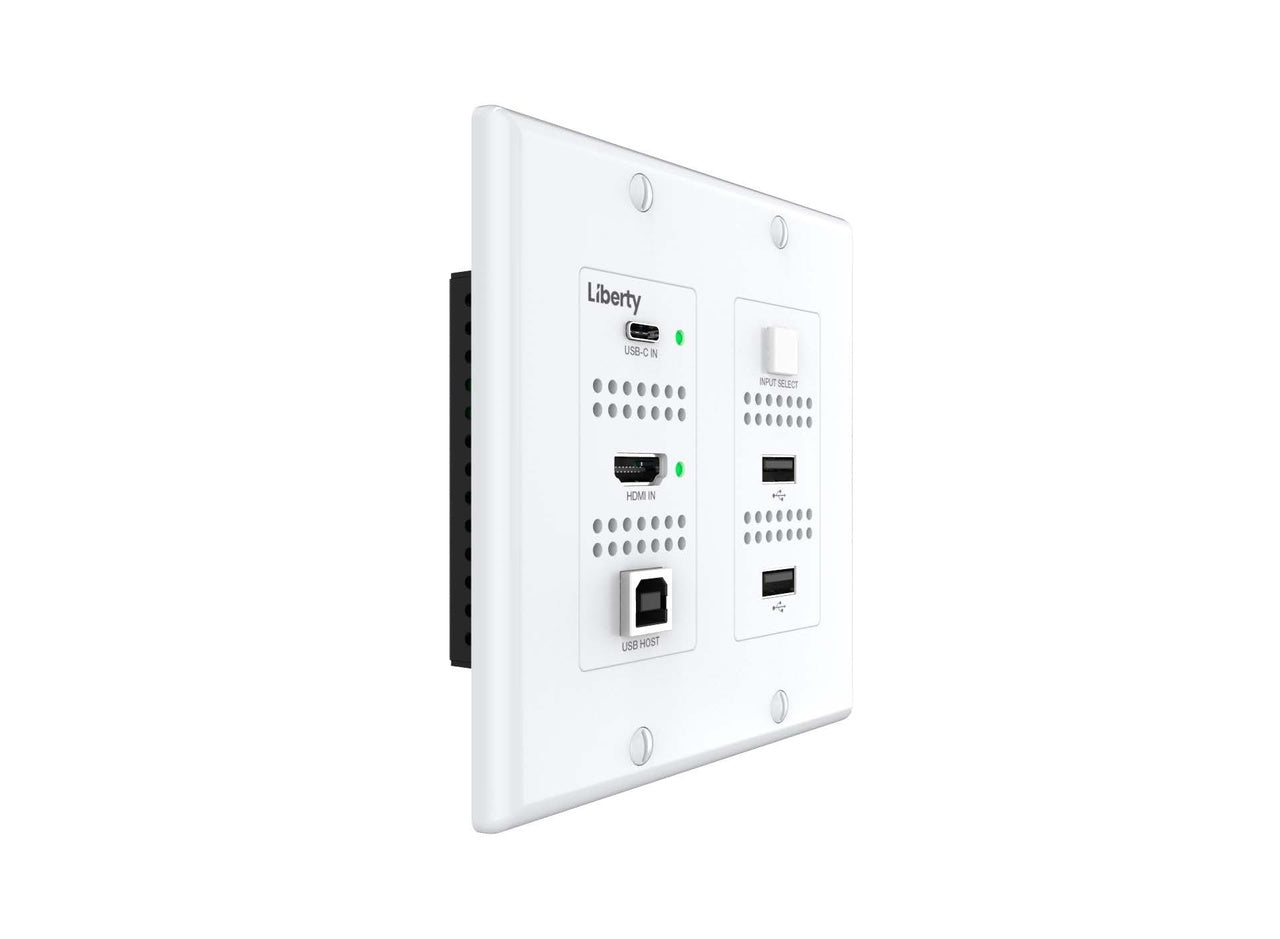

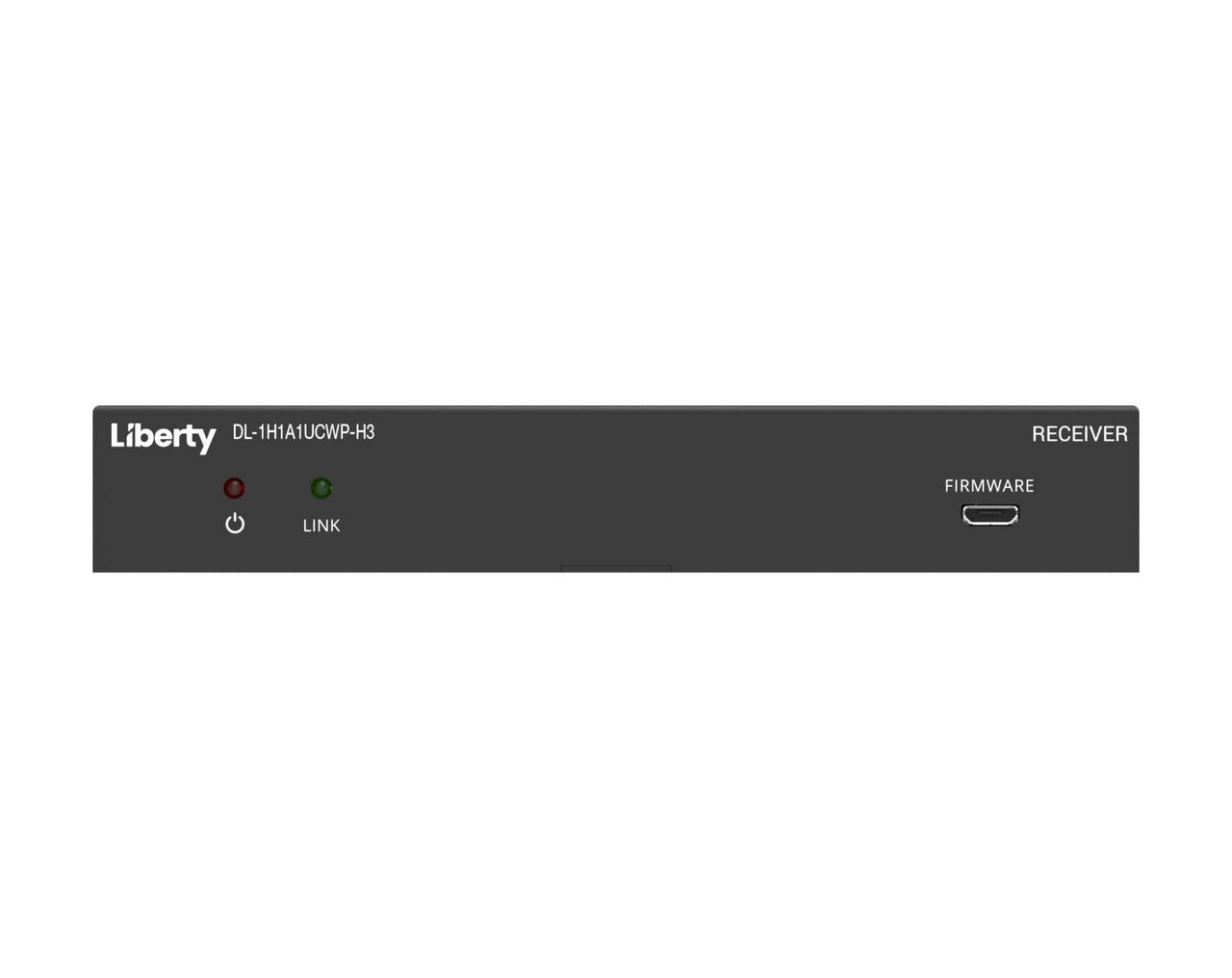

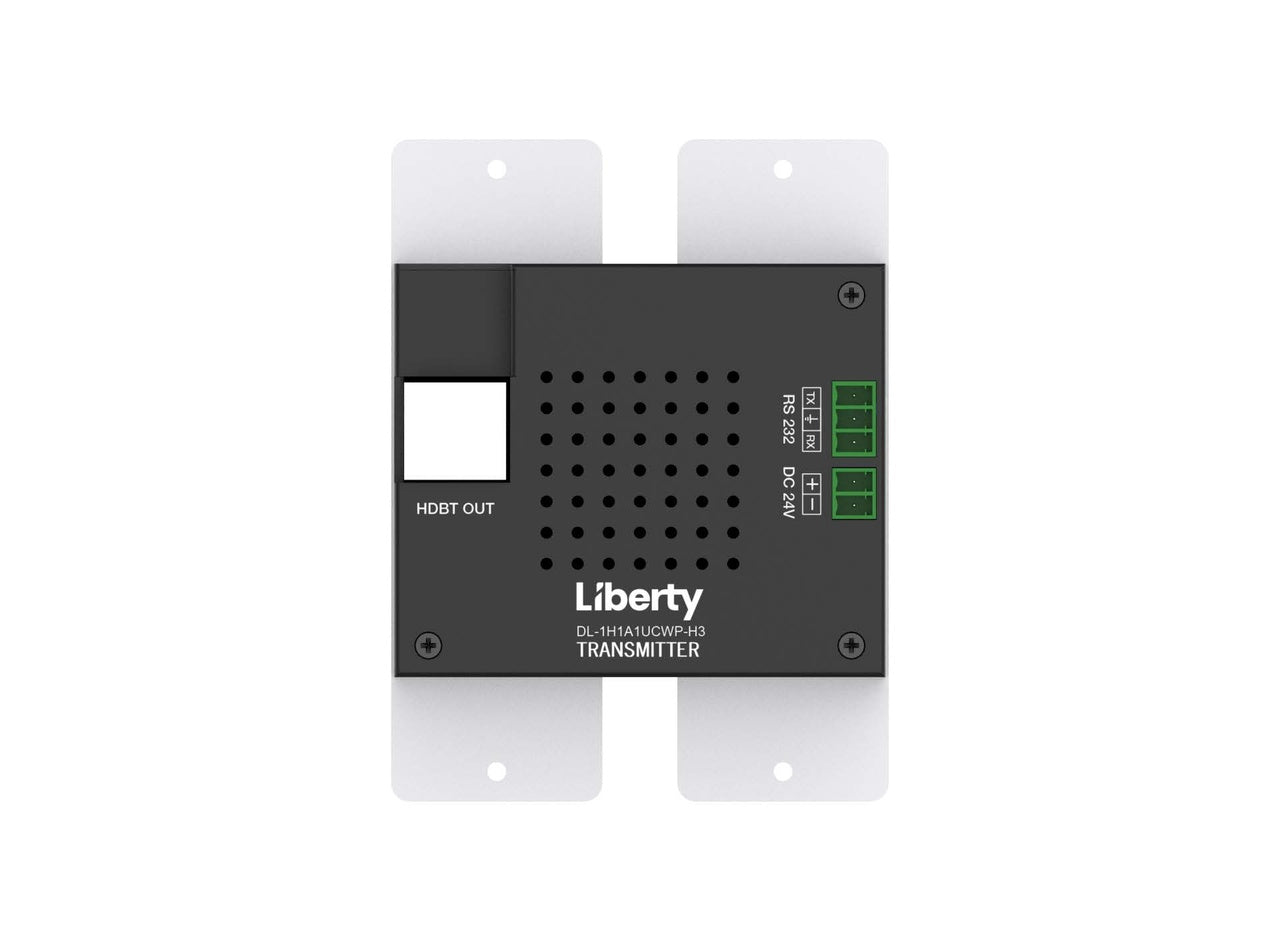

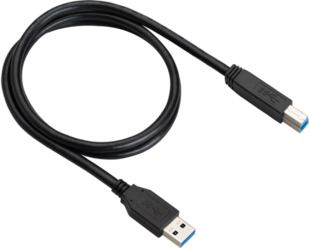

HDBaseT3.0 Uncompressed 4K60 & USB Transmitter & Receiver set with accessories
Uncompressed HDMI 2.0 extension over HDBaseT 3.0 offers resolution support up to 4K60 4:4:4, control, and USB2.0 with isochronous data support for cameras and other USB peripherals

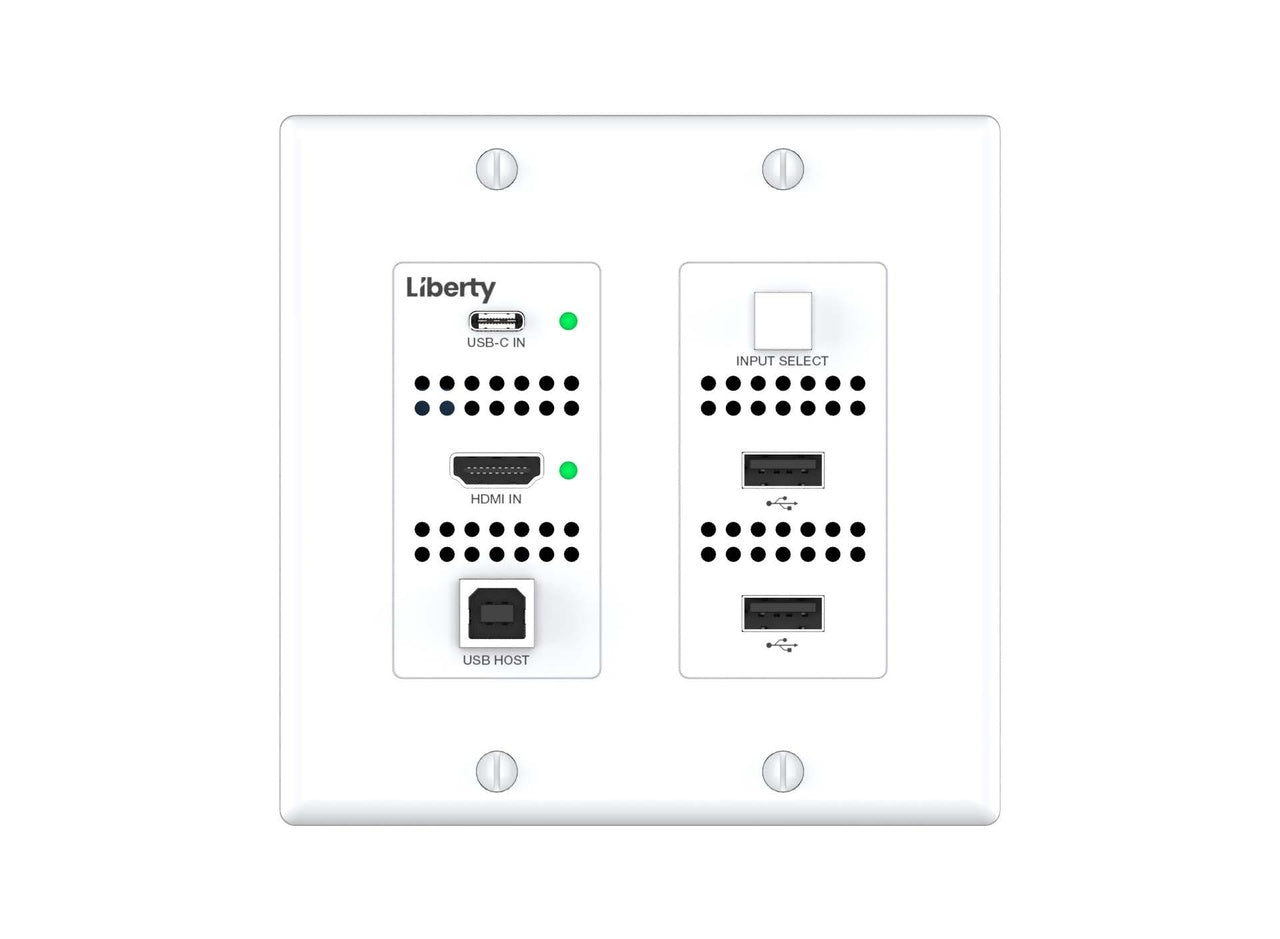

HDMI / USB-C auto switching based on video sense or 5V detection

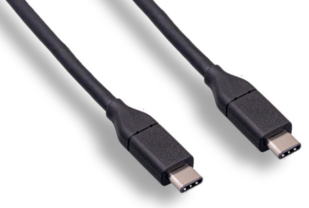

USB-C full featured passes AV via ALT-DP, acts as a USB host, and provides charging power up to 40w to the host computer over USB-C when the optional & included 2nd power supply is used
HDMI 2.0b, HDCP 2.2 18Gbps 4K60 4:4:4 support
Supports HDR, HDR10+, Dolby Vision LLM, HLG
Supports 4K60 4:4:4 up to 40m and 4K30 or below up to 70m using Cat6A U/FTP or above
Supports Isochronous USB data for maximum camera compatibility

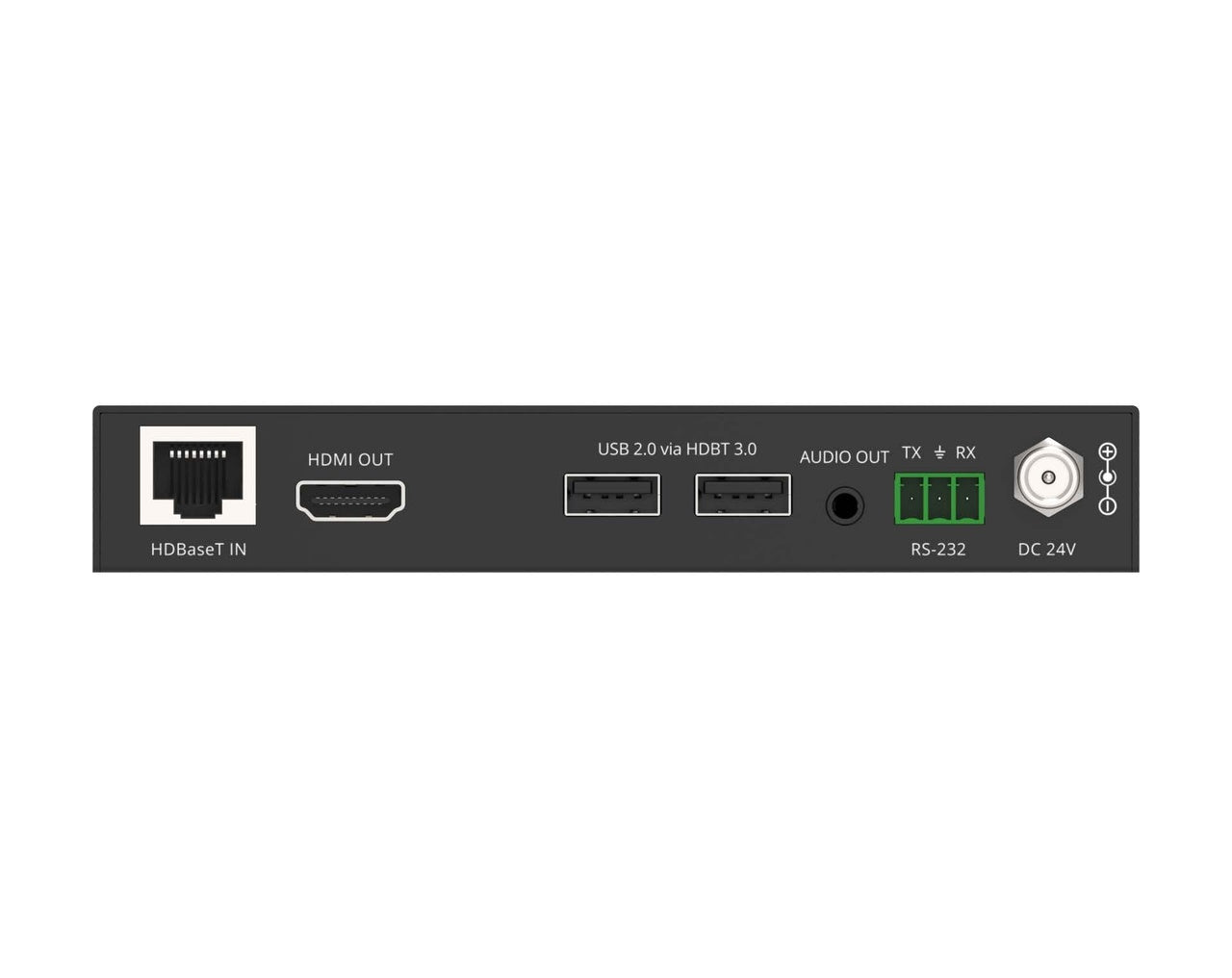

Audio de-embed on RX
Auto 4K to 1080P downscaling will automatically scale 4K signals to 1080P when connected to a 1080P display
EDID Management

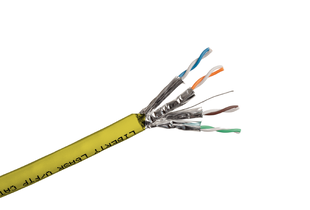

For reliable, full featured performance, and to support all resolutions / capabilities of all HDBaseT 3.0 devices, shielded Cat6A U/FTP or above must be used.
Brand: Liberty AV Solutions. Product family: INTELIX.
