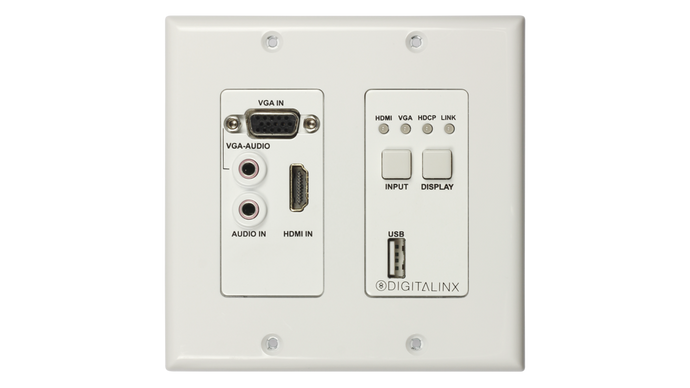

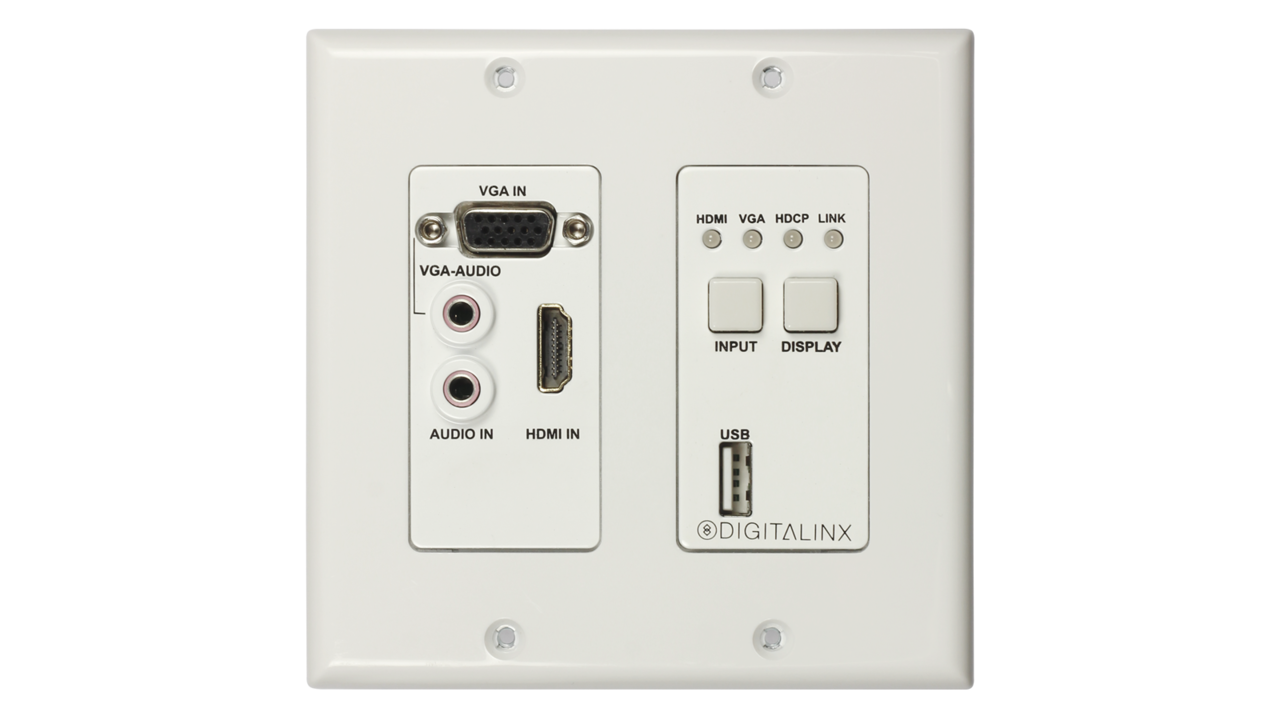

DL-1H1V1U-WP-W HDMI / VGA w/Audio and USB transmitter wall plate

DL-1H1V1U-WP-W HDMI / VGA w/Audio and USB transmitter wall plate

Liberty AV Solutions
Regular price
Sale price
Unit price
Tax included. Shipping calculated at checkout.

Two Gang HDBaseT 2.0 HDMI / VGA and USB 2.0 transmitter wall plate

DL-1H1V1U-WP-W Summary

The DigitaLinx DL-1H1V1U-WP-W is a 2x1 auto switching HDBT 2.0 transmitter that supports the long distance transport of HDMI, VGA and USB 2.0 up to 70 meters / 230' using CAT6 cabling and features an HDMI, VGA with Audio and USB(A) input.

The DL-1H1V1U-WP-W gives you the ability to automate the display technology on whenever a video signal is introduced to the system on either the HDMI or VGA input. It will also turn the display technology off after a specified amount of time has passed when no video signal is present. It also gives you the ability to turn on/off display as well and switch from one input to another manually from the face plate.

The DL-1H1V1U-WP-W is ideal for situations where USB must be extended with HDMI or VGA for interactivity for items such as whiteboards for conference rooms or classrooms. The DL-1H1V1U-WP-W is compatible with the DL-HD2WP-RX HDBT 2.0 receiver.

Features and Benefits

  • Extends HDMI, VGA w/audio, Analog Audio, and USB 2.0 up to 100m / 330’
  • Integrated RS232 controller can automatically or manually power on/off display
  • Supports resolutions up to 4K@60Hz 4:2:0 / 8 bit deep color
  • Supports HDCP 2.2
  • Pass-Through Analog audio port passes audio direct to audio output of receiver independent and regardless of video source
  • Auto Switching and Front Panel Input and Display on/off Selection
  • Supports remote PoE power from receiver
  • 2m USB A-A Cable included with wall plate
  • NOTE: Requires the use of the DL-HD2-RX or DL-HD2A-RX receiver
  • Compatibility note Some Promethean Interactive displays may require a firmware change be installed in this product prior to device installation. Please contact Liberty AV support if using a Promethean display prior to installation


  • K-12, Higher Education, & Meeting/Training Room Applications
  • Combine AV signal with USB for interactive displays, cameras, and other USB peripherals
  • Keyboard, Video, Mouse (KVM) applications
  • Conference / Training rooms extending USB Cam / Mic and AV signals
