    4K 10.2G 70M 4x1 HDBaseT Advanced Room Kit with 4 HDMI inputs, USB2.0 highspeed, audio amplifier, display control, and remote monitoring software

    DL-ARK-4HC Summary

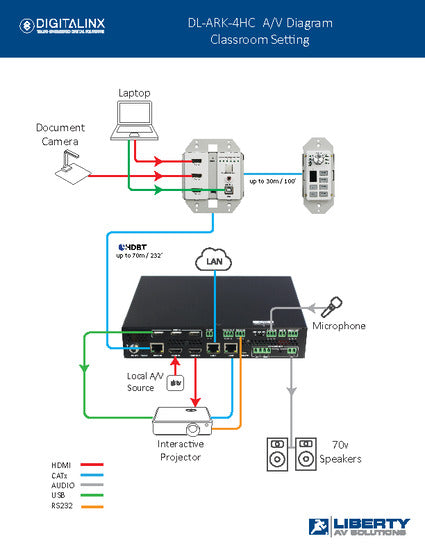

    The Digitalinx DL-ARK Advanced Room Kit is a multi-function A/V distribution and push button control system designed to provide audio, video and USB 2.0 data extension with complete system control all in one convenient system. Only two solid core, shielded Category 6 cables are required to connect the entire system together which consists of one HDBaseT wall plate transmitter, one HDBaseT receiver and one keypad controller. All the power needed for the keypad and wall plate transmitter is provided by the receiver via Category cable / HDBaseT.

    There are two systems available in the series; the DL-ARK-3H1VC features 2 HDMI inputs and 1 VGA with audio input on the wall plate transmitter and the DL-ARK-4HC features 3 HDMI inputs on the wall plate transmitter. Both HDBaseT transmitters features a USB B host port for connection to a computer or host and a dedicated audio input that is independent of all video inputs. The DL-ARK HDBaseT receiver for both systems provides an additional HDMI input for a local A/V input, an HDMI output for a display or projector, a 3 port client USB hub for connection to interactive white board or USB mic / camera, a two port LAN switch, mic / line analog audio input, line audio analog output, 40 watt 70 volt power amplifier output and an RS232 and IR output for display or projector control either by keypad controller or web server. The DL-ARK control keypad for both systems features audio and video input selection control for all A/V inputs, variable audio control for the mic/line input, line audio output and amplified audio output from the DL-ARK receiver and can control a connected display or projectors ON and OFF status via RS232 or IR from the receiver as well. The DL-ARK systems are UL Listed.

    Several DL-ARK systems can be remotely managed by the DL-ARK system management software which allows centralized status view and control of a system from anywhere on the LAN.

    Features and Benefits

    EXPECTED RELEASE DATE: Q2 2019 - Pre-Order Now

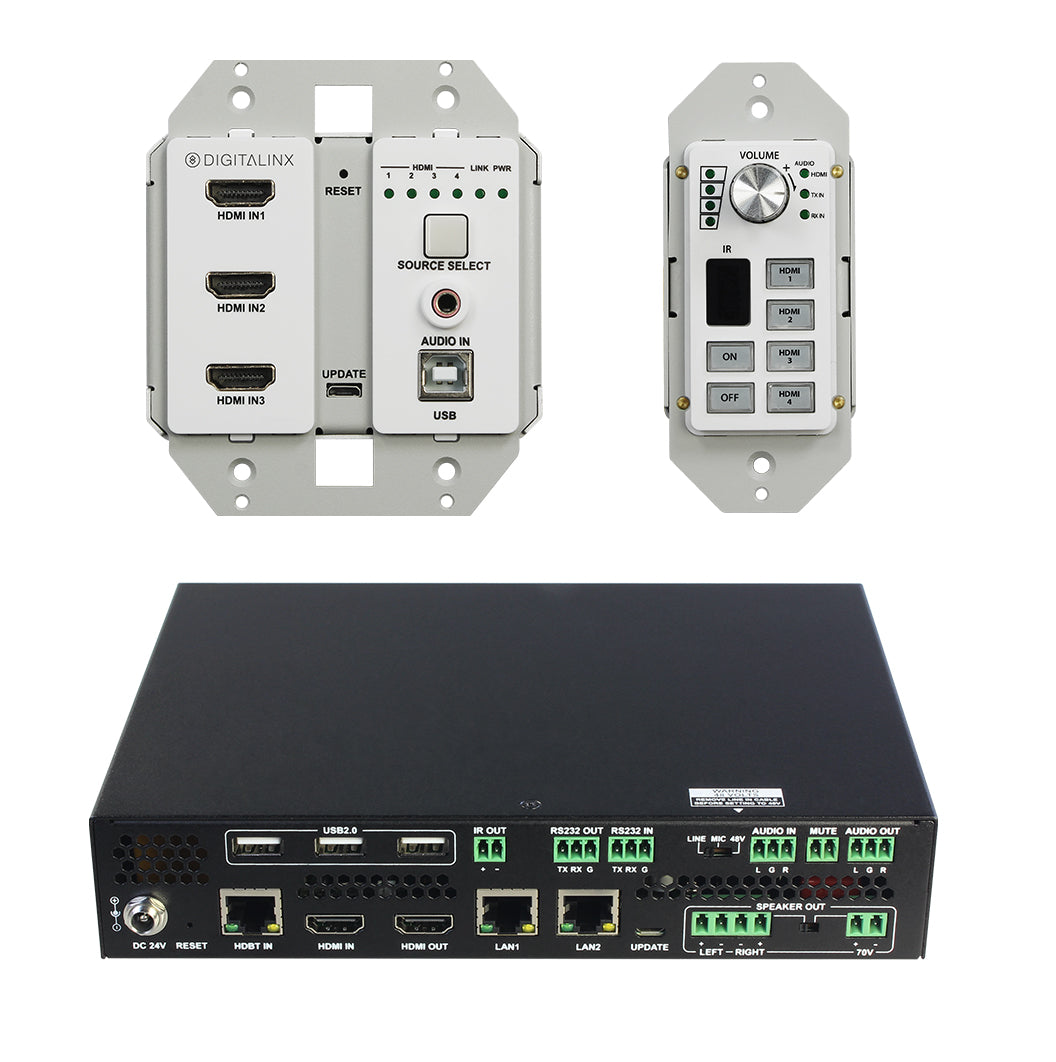

    • System Includes input plate, system control plate, receiver/processor, power supply, mounting tabs for RX, white and black cover & face plates, button lables

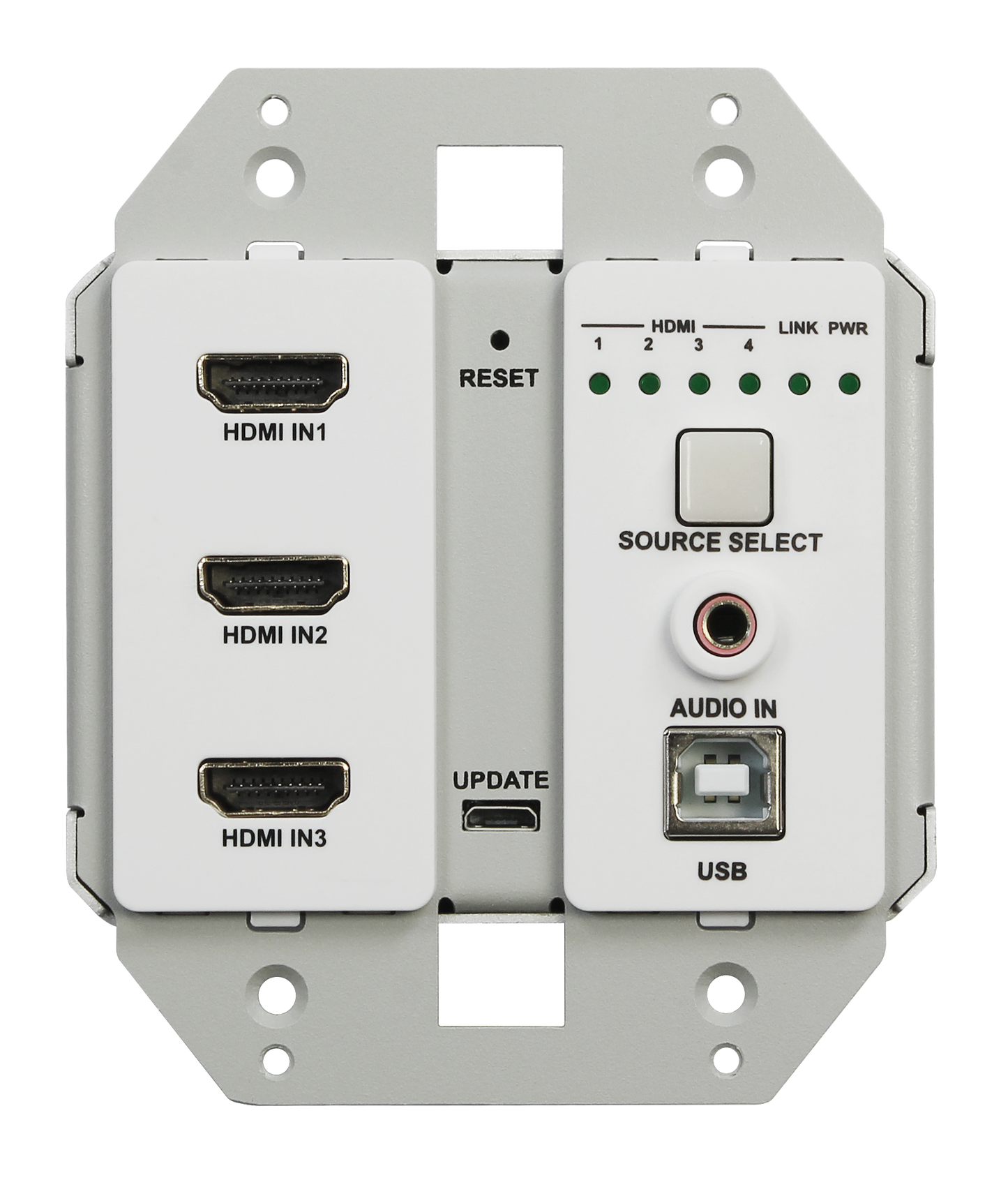

    • Input plate offers 3 HDMI, USB-B, and separate pass-through audio. (Input 4 is on RX) HDBaseT output up to 70m to receive unit. HDCP2.2 compliant

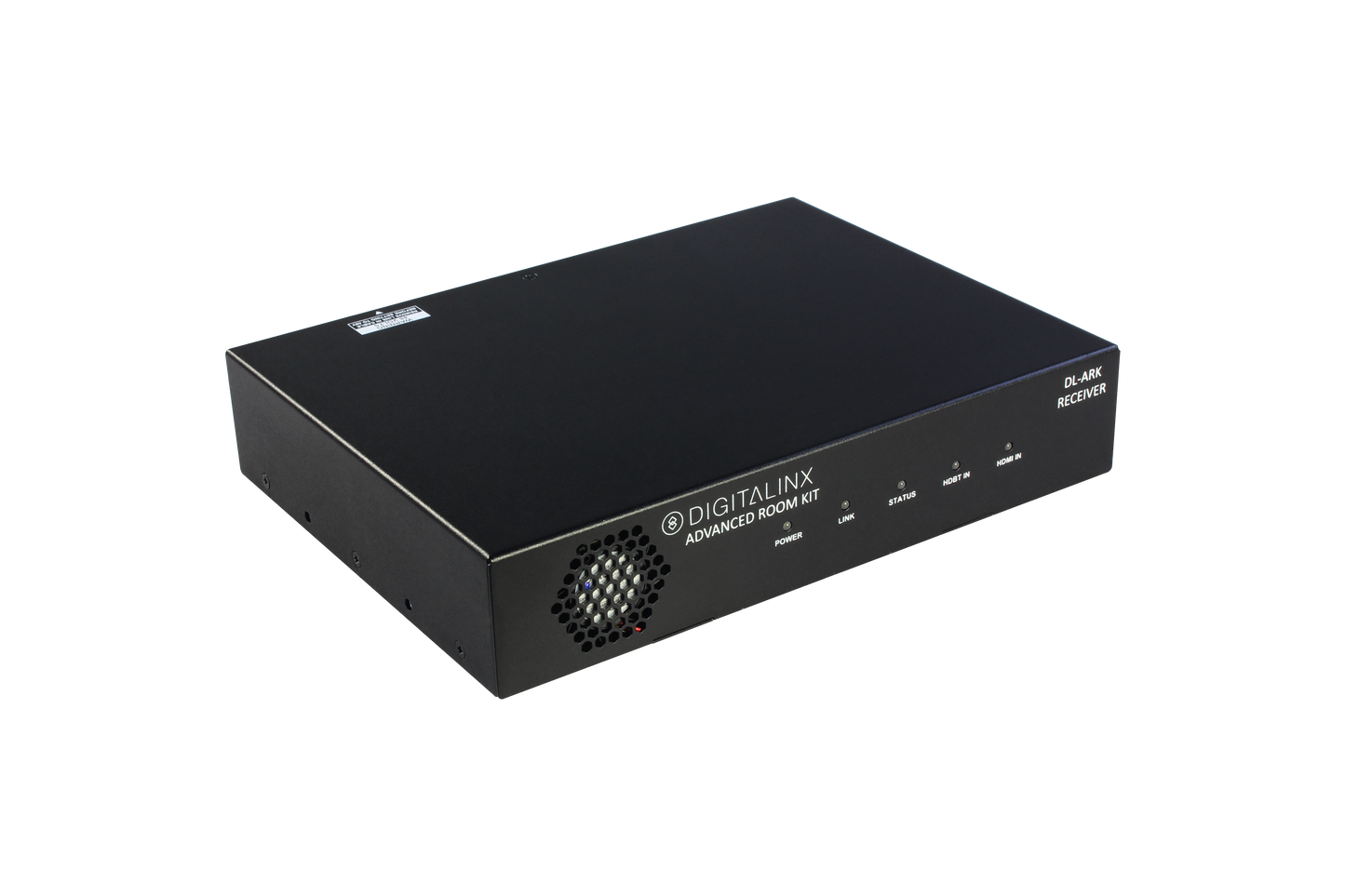

    • Receiver offers HDMI input for local devices, HDBT in, HDMI output with 4K scaling, 70v / 8ohm amp, line / mic in w/ selectable phantom power, audio out, USB2.0 high speed 3 port hub, HDMI out, 2 LAN ports, mute relay, RS232 port, IR port
    • Input plate and control plate ship with white and black face and cover plates
    • Input 4 (HDMI) located on receiver unit to be used for remote BYOD and other sources located near the display
    • System can be programmed to power on/off connected display/projector via RS232, IR, or CEC
    • IR on control plate acts as IR repeater using flasher output of processor receiver
    • USB-B 2.0 high speed extension from wall plate to RX USB 3 port hub

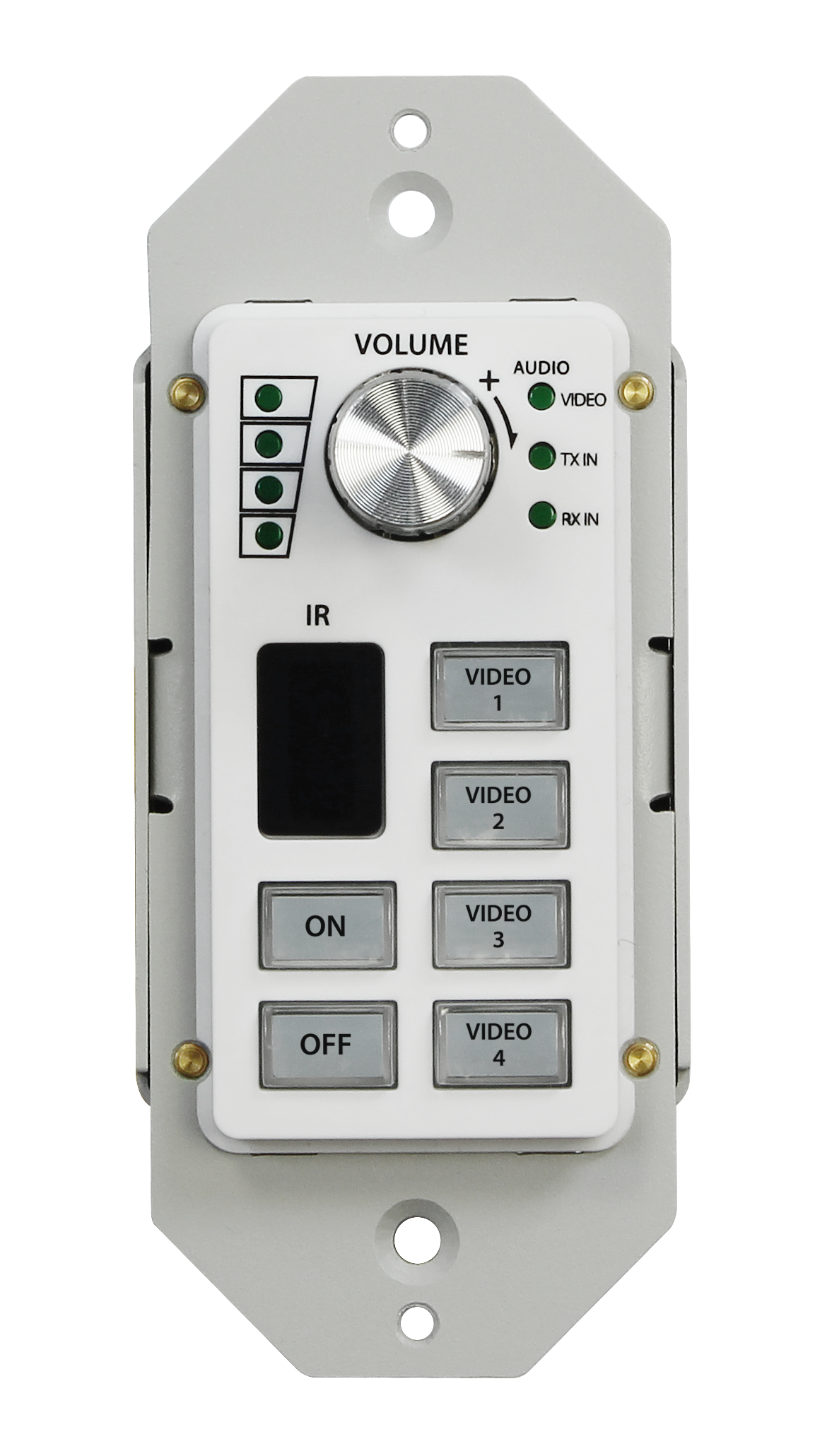

    • Control plate for source selection, display / system power on/off, audio source selection and volume
    • Supports resolutions up to 4k
    • Integrated scaling up to 4k with fast switching
    • HDCP2.2 compliant
    • Auto switching or manual switching via control plate or web GUI
    • Web based remote monitoring software allows centralized status view and control of system from anywhere on the LAN. Also offers remote configuration for easier setup
    • WEB based GUI for local device setup and config & when in user mode full control from any browser device
    • UL Listed

    Applications

    • K-12 classroom
    • Higher education classroom
    • Training room
    • Any application using interactive display
