Digitalinx by Liberty AV Solutions DL-HDBT2-WP-KIT Kit

DigitaLinx HDMI & VGA HDBaseT Wall Plate Extension Set with USB

4K 10.2G 100M 2 HDMI, VGA, & USB2.0 High Speed Wall Plate extender set with audio pass-through / de-embedding and automated display control

Liberty AV Solutions DL-HDBT2-WP-KIT combines the DL-1H1VU-WP and the DL-HD2-RX into one item number for easier ordering. This kit is ideal for meeting rooms and educational applications.

Features and Benefits

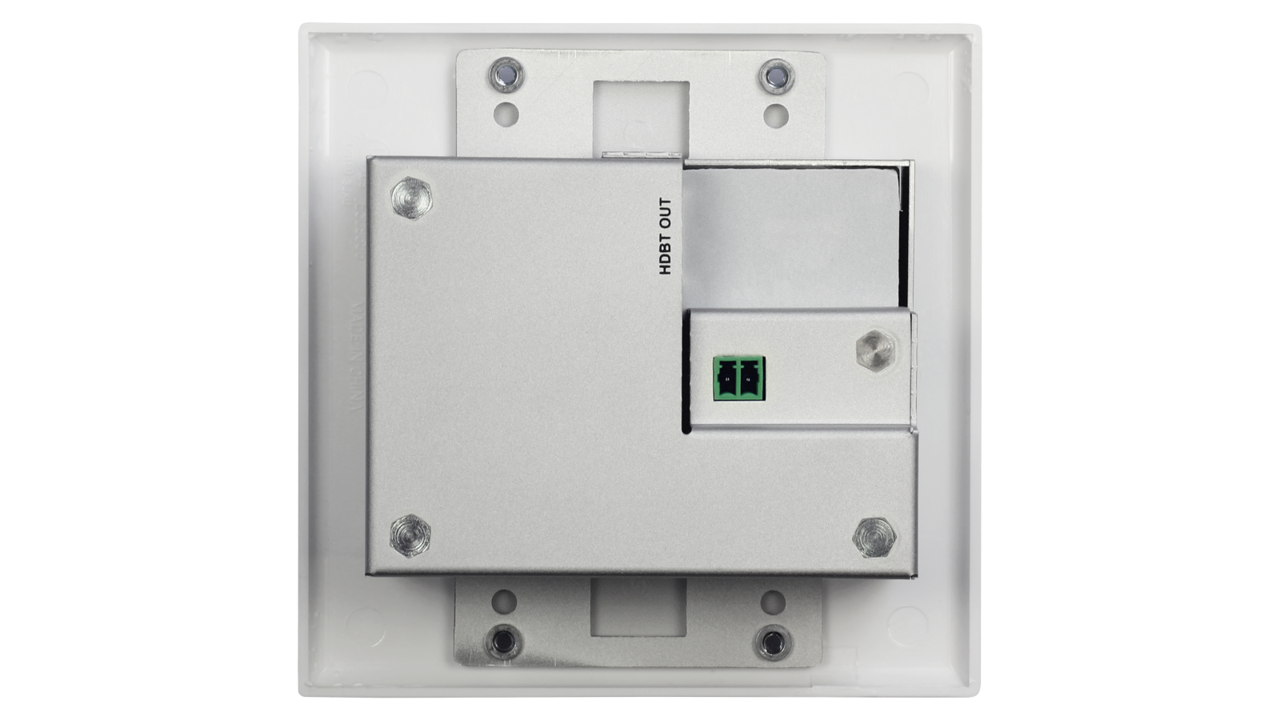

• NOTE: Kitted part number including wall plate TX and box style RX
• Extends HDMI, VGA w/audio, Analog Audio, and USB 2.0 up to 100m / 330’
• Integrated RS232 controller can automatically or manually power on/off display
• Supports 4K@60Hz 4:2:0
• Supports HDCP 2.2
• Pass-Through Analog audio port passes audio direct to audio output of receiver independent and regardless of video source
• Auto Switching and Front Panel Input and Display on/off Selection
• Supports remote PoE power from receiver
• 2m USB A-A Cable included with wall plate

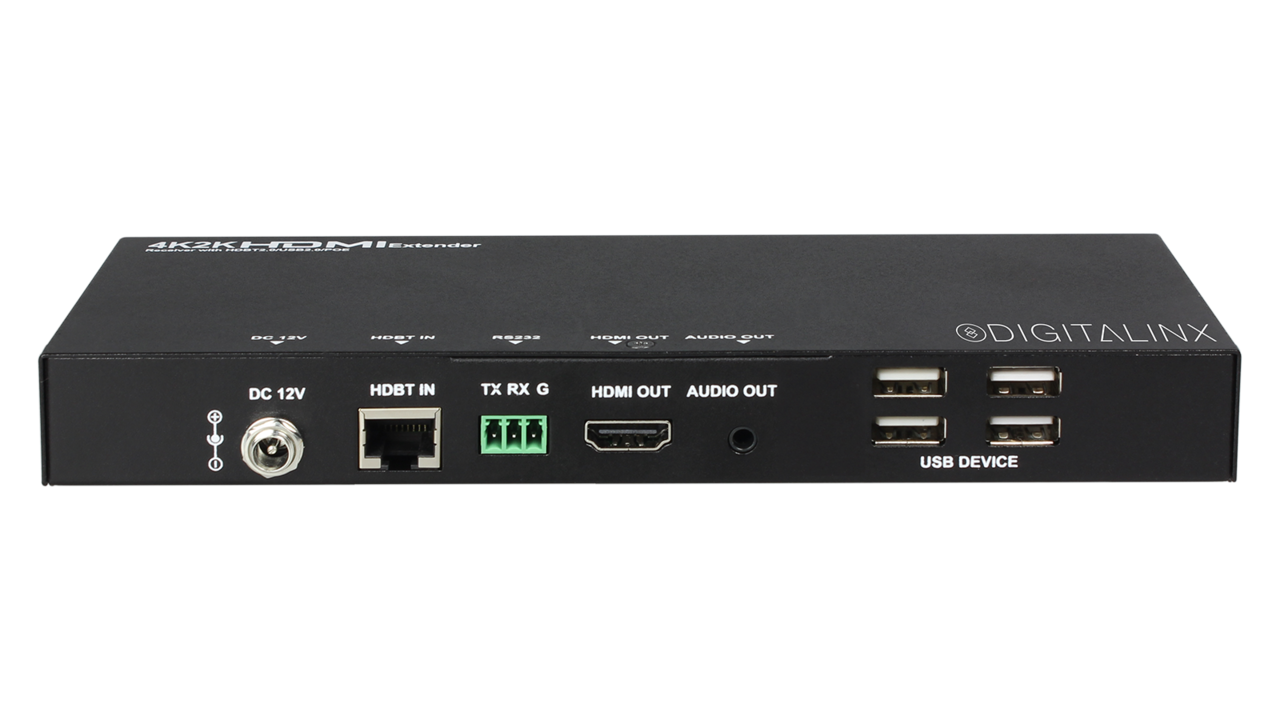

• NOTE: DL-HD2-RX receiver
• HDBaseT 2.0 receiver that is made to accompany the DL-1H1V1U-WP HDBaseT 2.0 wall plate transmitter
• Bi-directional analog stereo pass-through from wall plate audio jack
• 4 port USB 2.0 hub built in
• 4Kx2K@60Hz max distance 100m when using Cat 6/6a/7 cables, 1080P@60Hz up to 100m
• 4Kx2K@60Hz max distance 90m when using Cat 5e cables, 1080P@60Hz up to 100m
• PoE remote power to remotely power the TX wall plate

Applications

• K-12, Higher Education, & Meeting/Training Room Applications
• Combine AV signal with USB for interactive displays, cameras, and other USB peripherals
• Keyboard, Video, Mouse (KVM) applications
• Conference / Training rooms extending USB Cam / Mic and AV signals
