E-HDVAM-M-15 15' Tabletop HDMI, VGA and Audio hybrid cables

The E-HDVAM-M-15 15 ft HDMI and VGA with Audio cable assembly is designed to be an extremely convenient cable for presenters and presentation systems. The cable pairs together high quality HDMI and VGA with stereo audio cables for clean installation environments. Ranging in lengths from 6 ft to 19 ft, the end user will no longer have to struggle with knotted cables going to their AV equipment.

The HDMI portion of the E-HDVAM-M-15 cable assembly can pass video up to 4k x 2k, including 3D, and supports multichannel audio, ARC, CEC, and Ethernet. There are no missing connections in the VGA portion of the cable assembly, which means the DDC channel is intact and will properly pass EDID information.

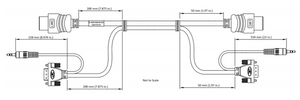

One end of the E-HDVAM-M-15 cable assembly separates the HDMI from the VGA with stereo audio ends about eight inches from each other to connect to a range of AV devices: from a typical TV or projector to more advanced devices, such as the Intelix ASW-WP auto-switching wall plate or DIGI-P122/P123 presentation scaling switchers. The other end of the cable assembly features a much longer stereo audio whip to accommodate those computer sources where the audio output is not near the video output.

Don't Forget the HDMI Adapter Ring

Features and Benefits

• Digital HDMI and Analog VGA plus Audio in one cable
• Siamese or SPT type cabling format
• 28 AWG HDMI for superior bandwidth and headroom
• 32 AWG coaxial VGA for WUXGA to 19 feet
• UL and CSA listed product, AWM for non in-wall use
• 10.2 Gbps / 4Kx2K / 3D / Audio Return / CEC / Ethernet

Applications

• Tabletop or podium mobile device connection
• Presentation systems and boardroom A/V connectivity
• Inter and Intra device Interconnection

Technical Specifications
I/O Connections
HDMI Male HDMI Type A connector
VGA Male DB-15 connector
Analog Audio 3.5 mm TRS plug
HDMI Supported Video, Audio and Ethernet
HDMI Maximum Video Compatibility Deep Color 48 Bit at 1080p, 3D, and 4k x 2k
Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Maximum Bandwidth 10.2 Gbps
Ethernet 100 Mbps
VGA + 3.5mm Supported Video and Audio
VGA Maximum Supported Video Resolution Up to 2560x2048
Analog Audio Support Up to 48 kHz sampling rate
Cable Construction
HDMI Connector Material Molded PVC
HDMI Connector Dimensions 20.5x11x31.6mm
VGA Connector Material Molded PVC
VGA Connector Dimensions 33x14x28mm
Analog Audio Connector Material Molded PVC
Analog Audio Connector Dimensions 10.3mm diameter, 36.75mm length with strain relief included
Jacket Material Flexible PVC
Cable Construction Copper
Overall Cable Size 12.8 mm x 7.3 mm
Minimum Bend Radius 73mm
Maximum Tensile Load 10Kg
Available Cable Lengths 1.8 m (6 ft), 3 m (10 ft), 4.5 m (15 ft), 5.8 m (19 ft)
Environmental Requirements
Operating Temperature 0° to +50° C (+32° to +122° F)
Operating Humidity 20% to 85%, Non-condensing
Storage Temperature -30° to +50° C (-22° to +122° F)
Storage Humidity 20% to 85%, Non-condensing
Power and Regulatory
Regulatory AWM 20276 80°C 30V VW-1, RoHS
