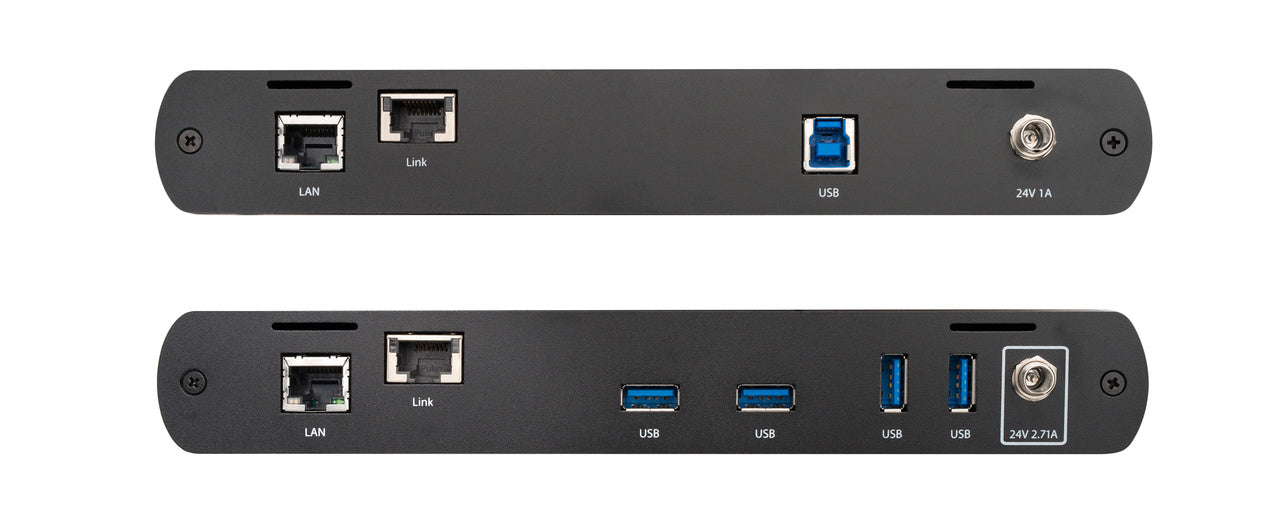

INT-USB3.1CX 4 Port USB3.1 Extender set over Cat6A/7

The INT-USB3.1CX incorporates ExtremeUSB-C™ technology, enabling users to extend USB 3.1 beyond the standard 3m cable limit for USB 3.1 peripheral devices. This extender system is composed of two individual units, the Local Extender and the Remote Extender, and has the following key features:

• Up to 100m of extension when directly connected over CAT 6a/7 cable
• Support for new USB 3.1 Gen 1 host controllers and devices (up to 5 Gbps)
• Support for all device USB types
• Backwards compatible to USB 2.0 devices

The Intelix INT-USB3.1CX includes the ExtremeUSB-C™ suite of features:

• Transparent USB extension supporting USB 3, 2 and 1
• True plug and play; no software drivers required
• Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™

Applications

• USB3.0 and/or 2.0 camera extension
• KVM
• Camera, control, and interactive display extension simultaneously

Leverage your existing network infrastructure

The USB Extender features an Ethernet side channel that lets you use your existing network infrastructure without having to run additional dedicated cable. Also, it allows users to connect Ethernet capabilities of devices through the extender without running a separate cable, making it perfect for PTZ applications.
