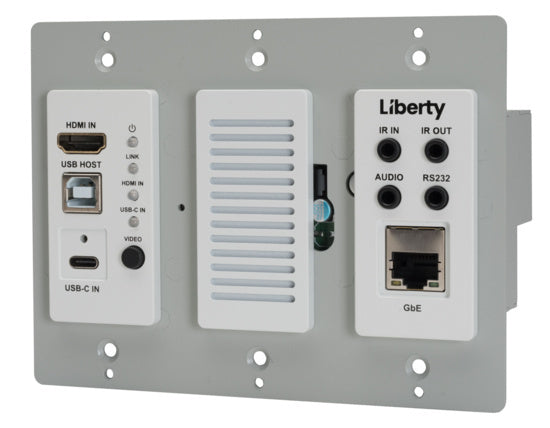

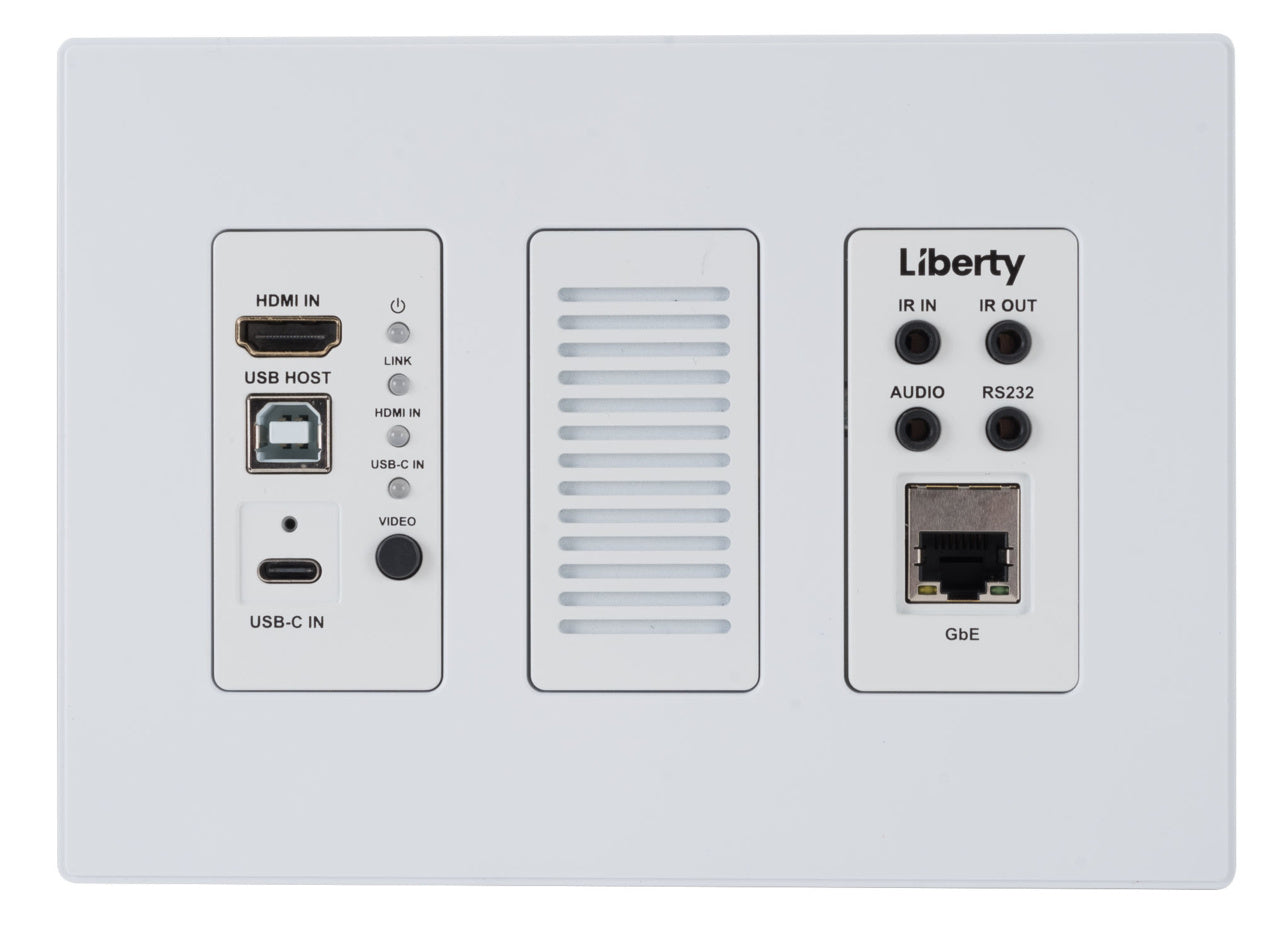

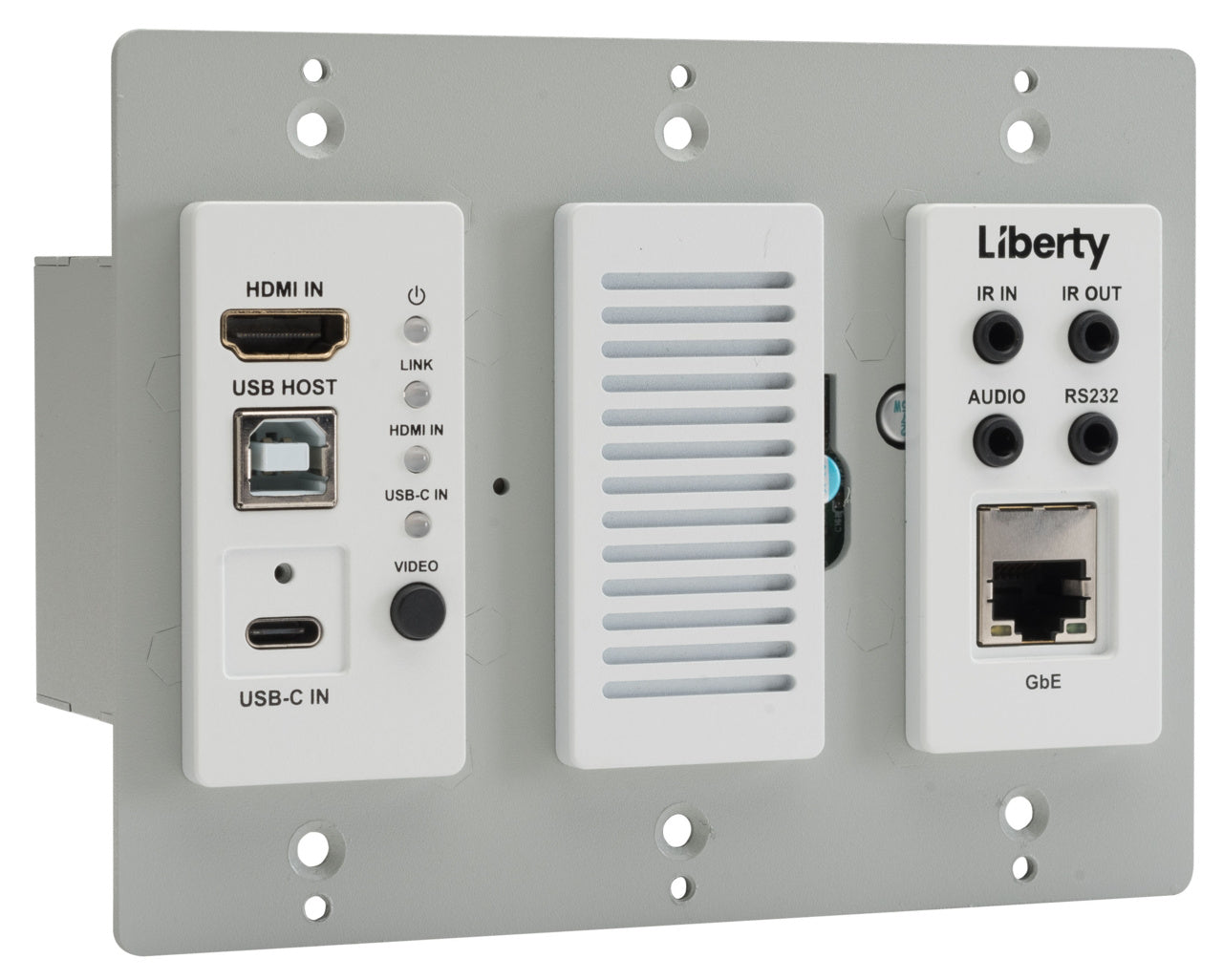

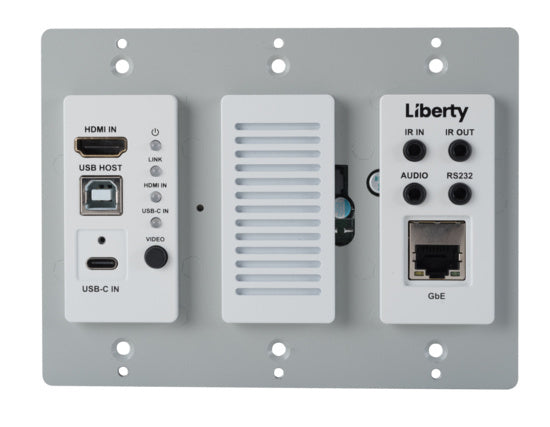

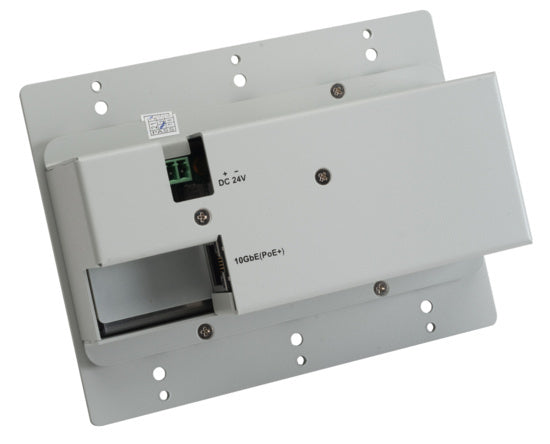

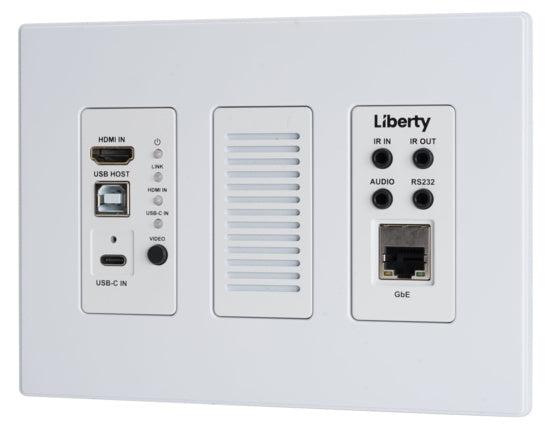

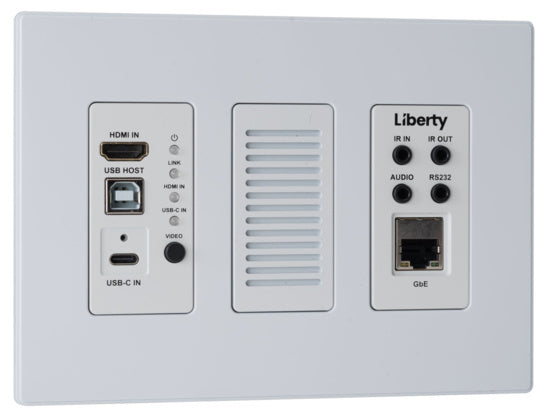

IPEX6001U-WP-W DigiIP 6000 Series SDVoE Wall Plate Encoder
Features and Benefits
Fully Routable zero latency HDMI 2.0 signals up to 4K60 4:4:4 over standard 10GbE Network
Follows 10Gbps Ethernet networking standards, can extend full 4K60 18Gbps resolutions and capability up to 100 meters using CAT6A cable
HDMI and USB-C auto switching inputs. USB-C supports AV and routable USB2.0 high speed data using Icron technology
Supports HDR10+ & Dolby Vision
Supports Multi-Channel audio up to 7.1
Extends 1Gbps Ethernet, RS232, IR, & USB 2.0 High speed isochronous

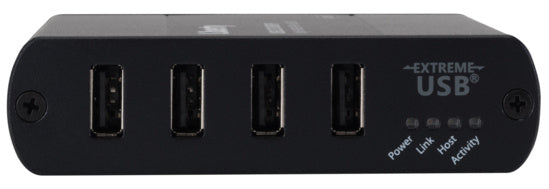

USB can be routed to IPEX6002U-WP wall plate decoder or to stand-alone IPEX-USB2-C client device and can be switched and routed for multiple host/client configurations
Multi-view support with over 40 layout presets
HDCP 1.4/2.2 Compliant

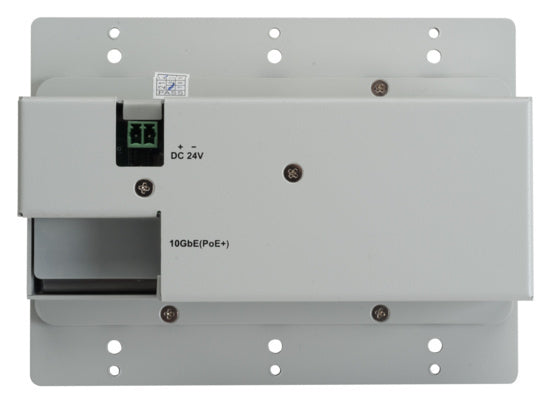

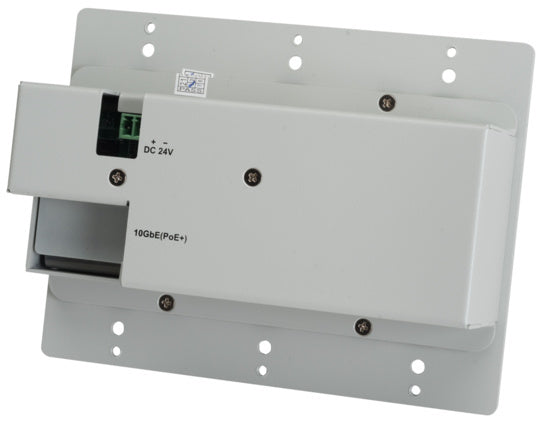

Supports PoE+. Adding optional power supply PS-24D-5A will provide up to 65W device charging power to the USB-C port
Interoperable with other products using SDVoE technology
Easy to configure using Liberty AV's NEW Arranger software
Brand: Liberty AV Solutions. Product family: INTELIX.
