Liberty 18-2C-VPP-WHT Plenum 0-10V Dimmer Cable – 500 ft

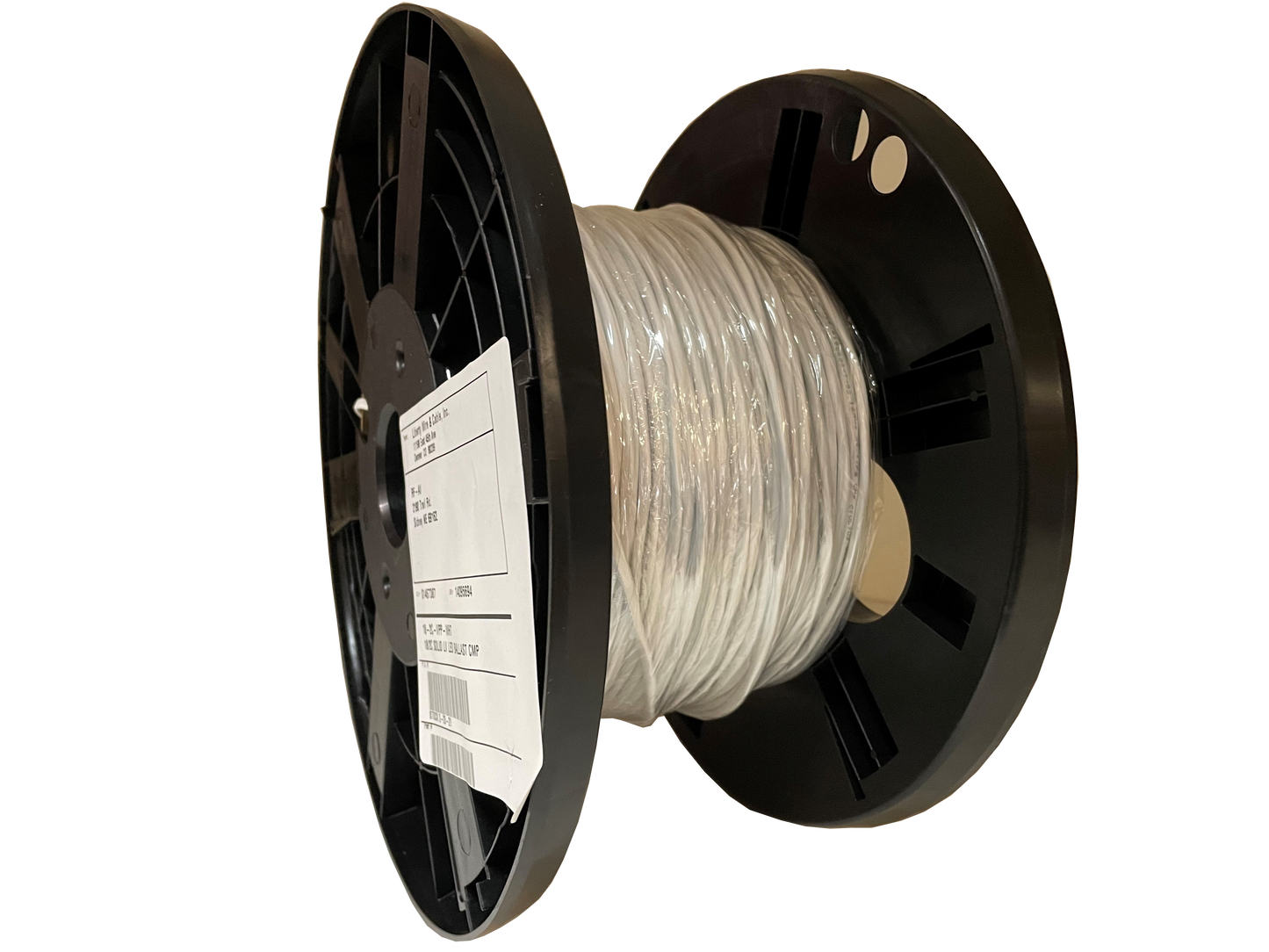

500 ft spool of Liberty Wire & Cable (LWC) 18-2C-VPP-WHT

OEM Lighting Systems support cable for 0-10V LED Ballasts

18-2C-VPP-WHT Features and Benefits

• NEC required Violet & Pink insulation color code
• Solid annealed bare copper conductors
• Plenum rated PVC alloy insulation
• Twisted, unshielded
• Plenum rated PVC jacket
• NEC CMP, CEC FT6, RoHS compliant
• 500 foot spools
• Better than Belden 2285P
• Limit to 300 ft cable runs (use 16 AWG for longer runs)

18-2C-VPP-WHT Applications

• Plenum Low Voltage 0-10V Ballast wiring and connection
• Plenum Low Voltage Security and Control
• Plenum DC Power, Class 2 and Class 3 power
• Plenum Rated Light Dimmer Cable

Need a Shorter Length?

Get 0-10V ballast wiring by the Foot at $0.49 / ft

https://rf-av.com/products/by-the-foot-liberty-18-2c-VPP

DALI and DALI-2 Lighting Control Bus Cable

This solid 18 AWG, 2-conductor 0-10V control cable can also be used for appropriately sized DALI and DALI-2 lighting-control bus wiring when its CMP plenum-rated rating and installation method meet the project requirements and local electrical code. DALI carries bus power and digital communication on one adjacent pair, and the bus connection is polarity-insensitive.

Run-length guidance: The DALI Alliance recommends 1.5 mm² (15 AWG) two-core cable for up to 300 m (984 ft) between the two farthest devices at the maximum 250 mA bus current. This 18 AWG cable is smaller than the recommended 1.5 mm² conductor and should be used only for appropriately shorter DALI runs; retain the product’s existing 300 ft guidance unless the system designer approves otherwise.

Important: This is bulk cable suitable for DALI bus applications; it is not a DALI-2 certified control device. Use it for the control bus, not branch-circuit power. Verify CMP plenum-rated, raceway, separation, and local-code requirements, especially near mains wiring.
