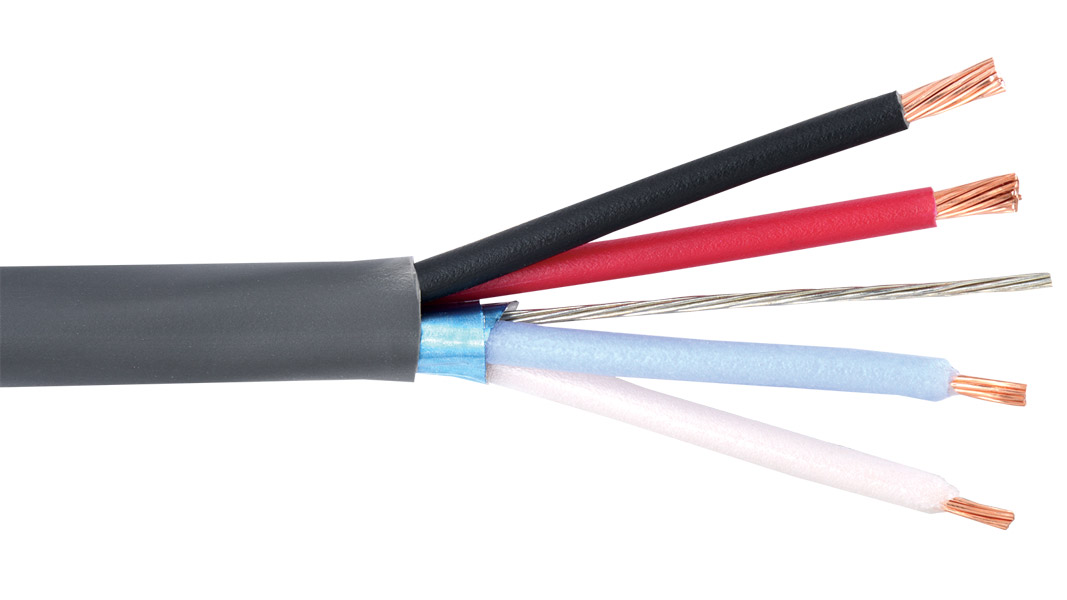

Liberty LLINX-U-P 22/2 18/2 Plenum - Cresnet Spec - 500 ft spool

500 ft spool of Crestron Crestnet Plenum Cable CRESNET-P-TL-SP1000

Liberty OEM LLINX-U-P

Features and Benefits

• Data pair: 22 AWG 7-strand tinned copper conductors
• Data pair: foamed FEP insulation for low capacitance
• Data pair: 100% isolated foil shield with drain wire
• Data pair: 105 Ohm, 12.5 pF/FT low capacitance
• Power pair: 18 AWG 7-strand annealed bare copper conductor
• Power pair: PL-PVC, plenum rated PVC alloy insulation
• Data and power components cabled on a common axis
• Ripcord
• PL-PVC, plenum rated PVC alloy outer jacket
• NEC CMP, CEC CMP FT6, RoHS compliant

Applications

• Plenum OEM support for AMX/Crestron (CRESNET-P-TL-SP1000)
  /Lutron systems
• Plenum RS-232C, RS-422, RS-485 plus low voltage power
• Plenum analog and digital audio
• 300 watt max power at 500 feet recommended
