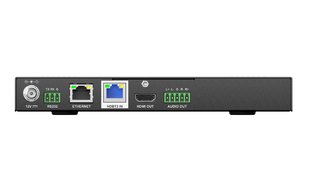

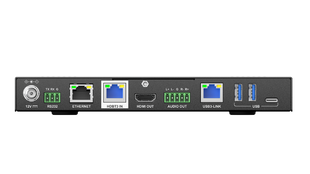

TU-DS42U3-H3 TeamUp+ Series Dual Screen USB3 Collaboration Extender/Switcher

TU-DS42U3-H3 TeamUp+ Series Dual Screen USB3 Collaboration Extender/Switcher

Features and Benefits

• 4x2 BYOM conference presentation switch, integrating video, audio, USB, control and ethernet.
• Dual USB-C and dual HDMI + USB-B inputs, and all ports support cable lock connections.
• Dual HDMI + HDBT 3.0 martrix outputs, supports uncompressed 18G 4K60 video, audio, USB and PoH+ long-distance transmission.
• USB3 over HDBaseT output for USB3.2 Gen 1 extension & switching
• Two Full-featured USB-C inputs, supports 4K video, USB 3 data, Gigabit ethernet, and 60W charging function on both USB-C inputs.
• USB-C input supports DP alt mode, and dual screen outputs via MST + DisplayLink technology for single cable dual screen experience.
• Supports automatic switching, button switching, API switching and Web UI control.
• Automatic USB3 host switching for excellent professional BYOM experience
• Provide 4 USB 3 device ports for connecting conference equipment, such as cameras and speakerphone.
• Provide one balanced audio output port for connecting audio equipment.
• Provide RS232 and GPIO ports to connect various control and controlled devices.
• Two RJ45 ports are provided locally for network switching, control and VLAN settings, and can be extended to remote RX devices
• Provides an independent Dante RJ45 port, supporting PCM Dante audio output.
• TAA Compliant

Applications

• Purpose-built for larger AV spaces
• USB-C extension
• HDBaseT3
• Audio de-embed to amp or amplified speakers
• Dante audio support
• TCP/IP and RS232 for Arranger or 3rd party control

Product Summary

A USB3 extender and switcher that delivers the best dual screen BYOM experience in meeting rooms and classrooms, simply.

Brand: Liberty AV Solutions. Product family: INTELIX.

Product Documents

• TU-DS42U3-H3_Owners_Manual
• Liberty TeamUp+ Series TU-DS42-Multiscreen BYOM Technical Sell Sheet
• Liberty TeamUp+ Series TU-DS42 Multiscreen BYOM Solutions Brief
