Wavenet 24-Port Cat6A Shielded Patch Panel and Jack Kit

This Wavenet 24-port Cat6A shielded patch-panel kit combines one BPPWM-24 1U panel with 24 HD-6AKSJ-FTP HDJ keystone jacks. The manufacturer ordering reference is (1PC.) BPPWM-24 (24 PCS.) HD-6AKSJ-FTP. Assembly is required.

The panel fits 19-inch rack mounting and includes a stainless-steel plate, grounding provision and rear cable management bar. The shielded RJ45 jacks use a 180-degree, 110-type punch-down configuration with T568A/B wiring for 22-24 AWG solid F/UTP conductors.

Quantity 1 is one panel-and-24-jack kit. Assemble the supplied components and terminate the installation cable for the project. Installed performance depends on compatible cable, correct termination and the completed installation. Rack, installation cables and tools are not included.

For time-sensitive orders, confirm current availability and lead time.

Wavenet panel-and-jack kit specification (PDF)

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.

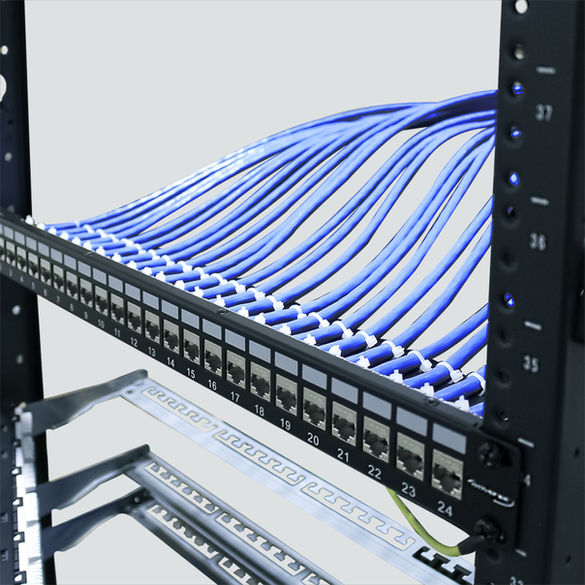

Manufacturer installation example of the 24-port panel and shielded jacks. Quantity 1 supplies one BPPWM-24 panel and 24 HD-6AKSJ-FTP jacks; assembly required. Blue cables, rack, additional panels and other installation equipment are not included.
