Wavenet 48-Port Cat6A Shielded Patch Panel and Jack Kit

This Wavenet 48-port Cat6A shielded patch-panel kit combines one BPPWM-48 2U panel with 48 HD-6AKSJ-FTP HDJ keystone jacks. The manufacturer ordering reference is (1PC.) BPPWM-48 (48 PCS.) HD-6AKSJ-FTP. Assembly is required.

The panel fits 19-inch rack mounting and includes a stainless-steel plate, grounding provision and two rear cable management brackets. The shielded RJ45 jacks use a 180-degree, 110-type punch-down configuration with T568A/B wiring for 22-24 AWG solid F/UTP conductors.

Quantity 1 is one panel-and-48-jack kit. Assemble the supplied components and terminate the installation cable for the project. Installed performance depends on compatible cable, correct termination and the completed installation. Rack, installation cables and tools are not included.

For time-sensitive orders, confirm current availability and lead time.

Wavenet panel-and-jack kit specification (PDF)

Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.

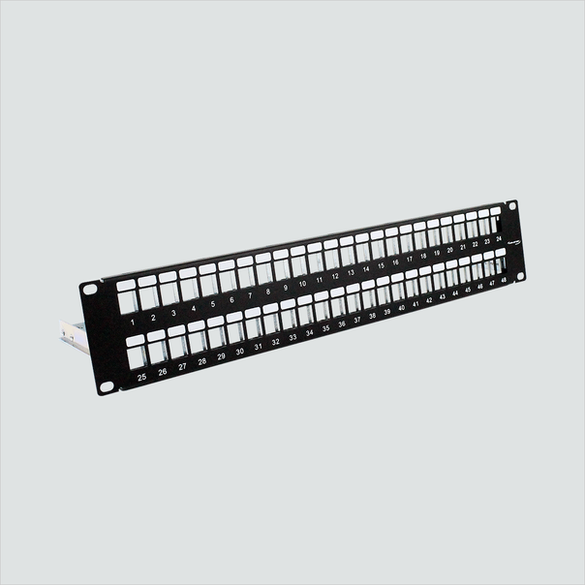

Manufacturer view of the BPPWM-48 panel component before assembly. This kit supplies one panel plus 48 HD-6AKSJ-FTP jacks, shown separately; assembly required. Rack, installation cables and tools are not included.

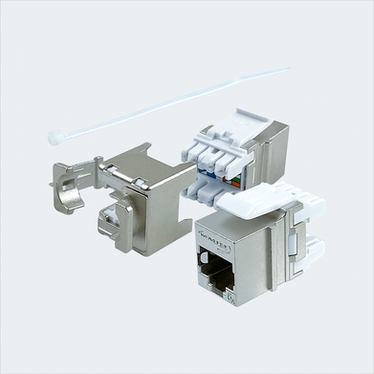

Manufacturer assembled and separated views of one HD-6AKSJ-FTP jack design. The views are not additional jacks or a photo of 48 packaged units. This kit includes 48 of these jacks with one BPPWM-48 panel; assembly required.
