Wavenet 6A04URXX Cat6A U/UTP Unshielded CMR Cable, 1000 ft
Wavenet 6A04URXX Cat6A U/UTP Unshielded CMR Cable, 1000 ft
Regular price
$528.00 USD
Regular price
Sale price
$528.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet 6A04URXX Cat6A u/utp unshielded bulk network cable with 23 AWG solid bare copper conductors for riser installations. Select the color and packaging above. Each quantity is one 1000 ft package of the selected type.
Supplier order: Contact RF-AV to confirm current availability and lead time before ordering.
| Category | Cat6A |
|---|---|
| Length | 1000 ft |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shield | Unshielded (U/UTP) |
| Insulation | HDPE |
| Jacket | Flame-retardant PVC |
| Rating | CMR |
| Separator / spline | Yes |
| Nominal outside diameter | 0.300 ± 0.008 in |
Exact part numbers and packaging
1000 ft RIB (Reel-In-Box)
| Manufacturer part number | Color |
|---|---|
| 6A04URBK3 | Black |
| 6A04URBL3 | Blue |
| 6A04URGY3 | Grey |
| 6A04URPR3 | Purple |
| 6A04URRD3 | Red |
| 6A04URWH3 | White |
| 6A04URYL3 | Yellow |
Manufacturer specification — RIB (Reel-In-Box) (PDF)
1000 ft Reel
| Manufacturer part number | Color |
|---|---|
| 6A04URBK2 | Black |
| 6A04URBL2 | Blue |
| 6A04URGN2 | Green |
| 6A04URGY2 | Grey |
| 6A04URPR2 | Purple |
| 6A04URRD2 | Red |
| 6A04URWH2 | White |
| 6A04URYL2 | Yellow |
Manufacturer specification — Reel (PDF)

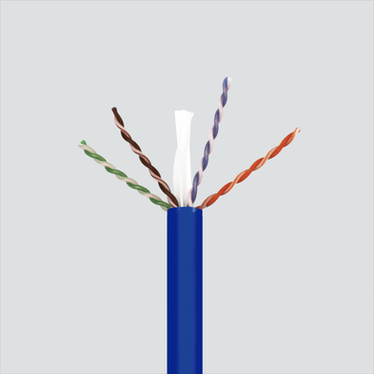

Manufacturer cable construction photograph; blue cable shown for illustration. The photograph does not show every selected color or the shipping package. Use the selected Color, Packaging and Length, and match the exact part number in the table.
