Wavenet 6EDJOSPBK2 Dual-Jacket Cat6 Outdoor Cable, 1000ft

Wavenet 6EDJOSPBK2 is black Cat6 U/UTP cable with a dual jacket for outdoor direct-burial network cabling. It uses four twisted pairs of 23 AWG bare-copper conductors, PE insulation, a PVC inner jacket and an LLDPE outer jacket. The manufacturer identifies the cable as UV rated and water resistant.

The cable includes a pair separator and ripcord, with sequential footage marking. Nominal outside diameter is 7.0 mm, with a stated tolerance of ±0.3 mm. Match connectors to the cable dimensions and conductor requirements, and verify the installation requirements for the route.

Quantity 1 is one 1,000-foot reel. The manufacturer's 36-reel pallet quantity is separate logistics information. A 1,000-foot supply reel is not a 1,000-foot Ethernet-link allowance.

Use this cable where the project requires the documented outdoor construction. Indoor fire-rating, waterproof/submersion performance and a particular PoE power capability are not established by the manufacturer documentation. Confirm current availability and lead time for time-sensitive projects.

Specifications

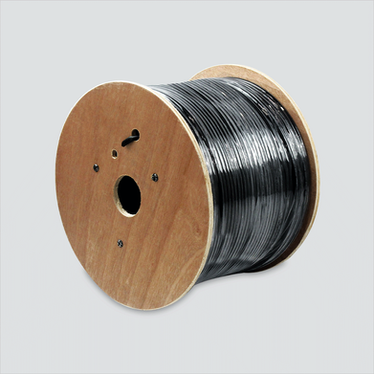

Manufacturer-associated image of black cable on a wooden reel for 6EDJOSPBK2. The sale unit is one 1,000-foot reel. The image does not establish physical stock, exact footage on the pictured reel or the internal jacket construction.

Wavenet 6EDJOSPBK2 specification (PDF).

Supplier-order item. Contact RF-AV for current availability and lead time.
