Wavenet AC1604UPBK4-500 Black CMP/CL3P 16 AWG 4-Conductor Cable — 500 ft Reel

Buy online — supplier order. This exact Wavenet package is available to order through RF-AV. Confirm current supplier availability and lead time before time-sensitive installation.

Wavenet AC1604UPBK4-500 is a black, plenum-rated 16 AWG four-conductor cable supplied on a 500-ft REELEX II package. The manufacturer sheet identifies stranded bare-copper conductors, unshielded plenum polymer insulation and jacket, a c(ETL) US mark, CMP/CL3P 75°C marking, and an NEC Article 800 / CMP FT6 reference.

Documented specifications

• 4 × 16 AWG stranded bare-copper conductors; black jacket; black, red, green and white insulated conductors
• Nominal insulation diameter 0.072 in; nominal insulation thickness 0.007 in
• Nominal jacket diameter 0.205 in; nominal jacket thickness 0.015 in
• Nominal cable weight 44 lb per 1,000 ft (not packed shipping weight)
• Sell unit: one 500-ft REELEX II package

Manufacturer-stated application

Remote control, signaling and power-limited circuits. Confirm the complete cable specification and application requirements before installation.

Order guidance: State the number of 500-ft packages, whether packages must remain separate, the application, and the required or preferred arrival date. Total footage does not promise one continuous length.

Manufacturer documentation

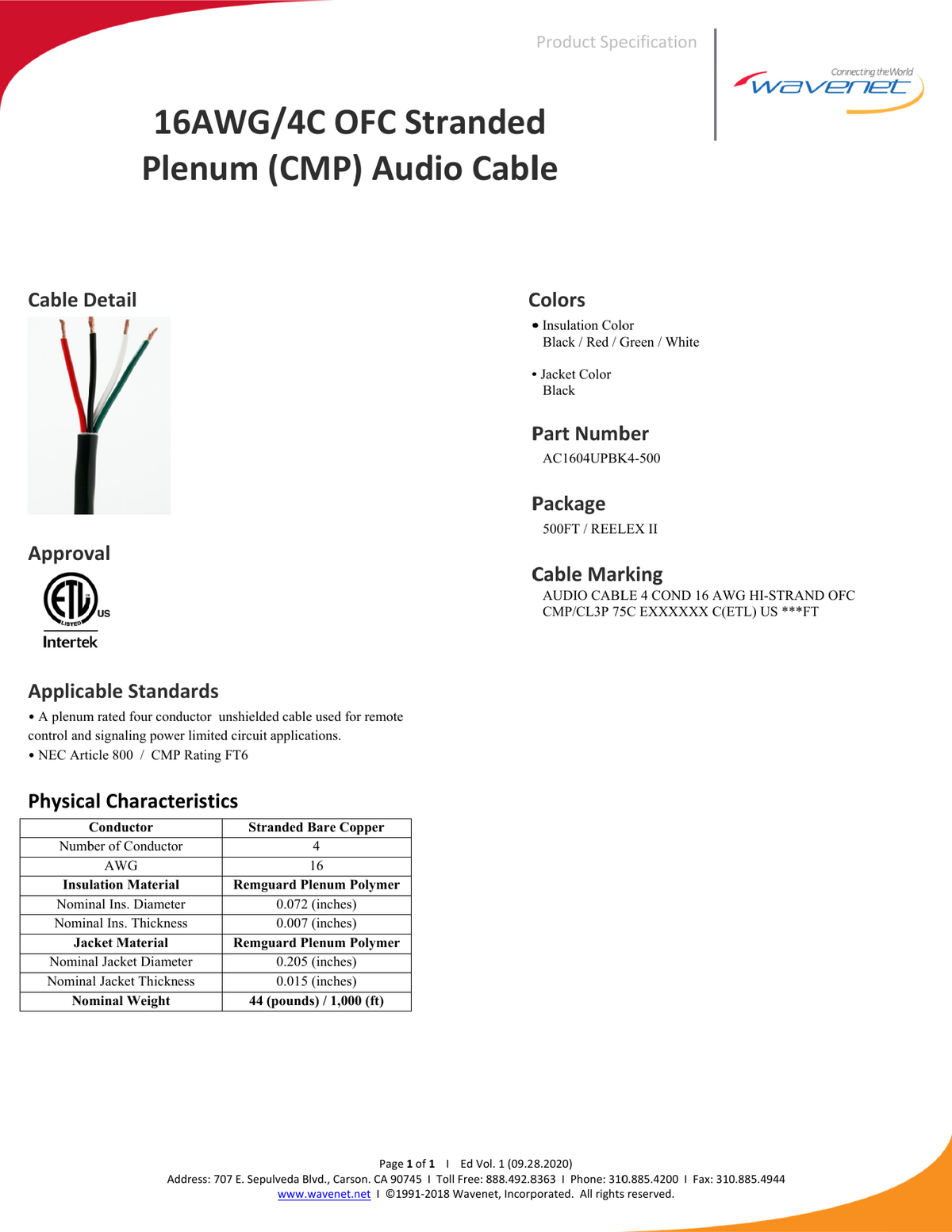

• Wavenet AC1604UP specification sheet (PDF)
• Wavenet Cable Line Card (PDF)
• Request a quote / confirm availability
• Related Wavenet 16/2 black plenum cable

Current sheet gaps: numeric strand count, resistance, capacitance/impedance, voltage/current limits, twist/lay and UL file number are not stated here and are not inferred.
