Wavenet JHMF34-C 3/4-inch Batwing J-Hooks - 25-Pack
Wavenet JHMF34-C 3/4-inch Batwing J-Hooks - 25-Pack
Couldn't load pickup availability
Wavenet JHMF34-C supplies 25 Multi-Function Batwing J-hook assemblies and 25 cable-retainer clips. The nominal hook diameter is 3/4 inch. The attached mounting clip is designed for threaded rod or ceiling drop wire.
Wavenet lists 1/4-inch rod and #12-#8 wire for this exact model. The hooks use 18-gauge galvanized steel. Confirm the supporting member and installation requirements; the listed hook diameter is not an overall product dimension.
The manufacturer lists 60 lb static load per assembly and cable capacities of 15 Cat5e, 10 Cat6 or 5 Cat6A cables based on 70% fill. Verify cable diameter, bend radius, loading and the complete supporting installation. The per-assembly value is not a combined package rating.
| Manufacturer part number | JHMF34-C |
|---|---|
| Package | 25 Batwing J-hook assemblies plus 25 retainer clips |
| Nominal hook diameter | 3/4 in |
| Mounting style | Multi-Function Batwing for threaded rod or ceiling drop wire |
| Manufacturer rod size | 1/4 in |
| Manufacturer wire size | #12-#8 |
| Hook construction | 18-gauge galvanized steel |
| Manufacturer static load | 60 lb per assembly; verify supporting installation |
| Manufacturer cable capacities | Cat5e 15; Cat6 10; Cat6A 5 |
| Cable-capacity basis | Manufacturer 70% fill rate |

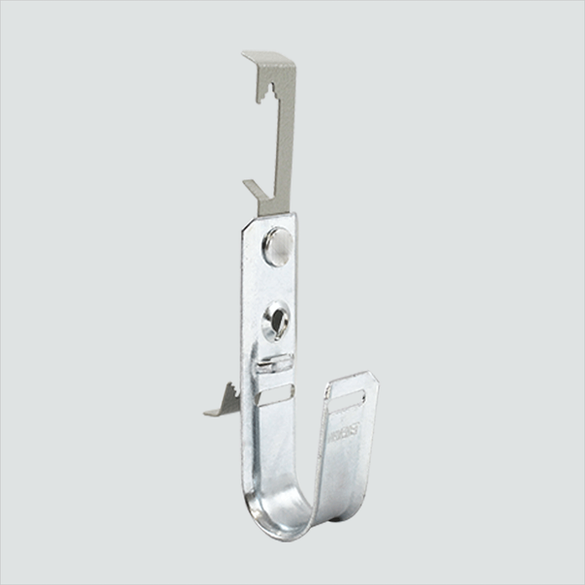

Overall dimensions, mounting-clip gauge and any additional installation hardware are not specified in the reviewed sources. Manufacturer view shows one Wavenet JHMF34-C J-hook with its Batwing mounting attachment. The 25-pack includes 25 complete assemblies and 25 retainer clips; not all contents are shown.
Manufacturer product | Manufacturer specification PDF | Manufacturer catalog, page 64
Available to order from our supplier. Stock and dispatch timing are not confirmed; contact RF-AV for current availability and lead time. Discuss cable support and project quantities or browse the Wavenet catalog.
