Wavenet Cat5e CMR Riser Cable — 1000 ft, Reelex II / Reelex II N

Wavenet Cat5e riser cable with four unshielded twisted pairs and 24 AWG solid bare copper conductors. Each selection supplies one 1000 ft put-up in the jacket color and Reelex packaging selected above.

Supplier order: Available to order from our supplier. Stock and dispatch timing are not confirmed; contact RF-AV for current availability and lead time before time-sensitive orders.

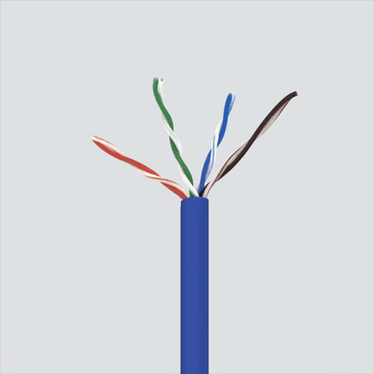

Manufacturer family image shows blue unshielded cable construction. It does not depict every selected jacket color or the supplied package. Color and packaging are specified by your selected options.

Construction and ratings

• Cat5e; four unshielded twisted pairs (U/UTP)
• 24 AWG solid bare copper conductors with HDPE insulation
• CMR / FT4; flame-retardant PVC jacket
• Nominal outside diameter: 0.200 ± 0.008 in
• Ripcord included; no separator or spline

Choose the exact part

All part numbers below supply one 1000 ft put-up. Suffix 4 identifies Reelex II; suffix 5 identifies Reelex II N (New).

Reelex II N (New)

Reelex II

For Black Reelex II N (New), see the separate Wavenet 5E04URBK5 listing.

Specifications and help

Manufacturer specification (PDF) · Manufacturer product family
