Wavenet CAT6 Loaded 12-Port Wall Patch Panel
Wavenet CAT6 Loaded 12-Port Wall Patch Panel
Couldn't load pickup availability
Wavenet CAT6 loaded 110-Type patch panels provide T568A/B UTP cable termination and front patching connections. This 12-port wall panel includes an 89D mounting bracket. Each Single Pack supplies one complete panel with the exact accessories listed for its part number. Cables, patch cords and termination tools are selected separately.
Supplier order: Contact RF-AV to confirm current availability and lead time before ordering.
Each cart quantity of 1 supplies one complete selected pack.
| Category | CAT6 |
|---|---|
| Port count | 12 |
| Termination | 110-Type IDC |
| Wiring | T568A/B |
| Cable application | UTP (unshielded twisted pair) |
| Accepted wire gauge | 22-24 AWG (manufacturer specification) |
| Mounting | Wall mount with included 89D bracket |
| Identification | Hinged label windows with white labels |
| Sale package | Single Pack |
| Panels per sale | 1 |
| Package contents | One 12-port CAT6 panel; one 89D wall-mount bracket; 2 mounting screws; 6 three-inch nylon cable ties; installation instructions |
Exact part numbers and sale packages
6EPP12V
Manufacturer documents
Manufacturer specification — 6EPP12V (PDF)
Manufacturer catalog, page 44 (distributor-hosted PDF)
Manufacturer 6EPP12V product and options
Image notes

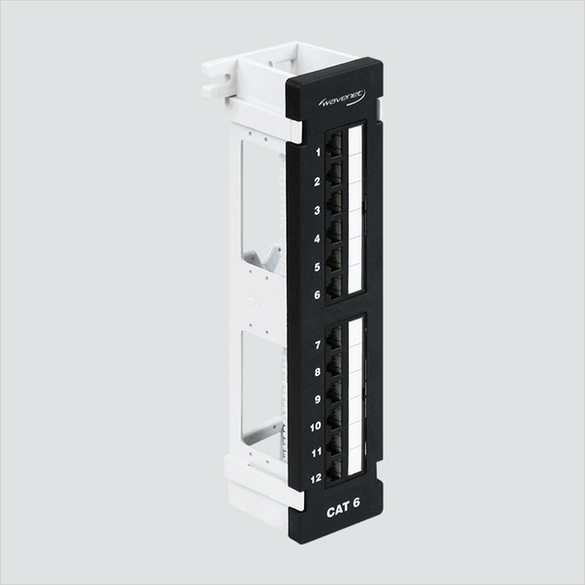

6EPP12V: Manufacturer photo shows the Wavenet 6EPP12V 12-port wall panel and 89D bracket. One panel with bracket per sale.
