Wavenet CAT6A U/UTP CMP Cable, 1000 ft RIB
Wavenet CAT6A U/UTP CMP Cable, 1000 ft RIB
Couldn't load pickup availability
Wavenet CAT6A U/UTP CMP Cable, 1000 ft RIB. Choose the required option above. The part-number table identifies the exact sale unit for each selection.
Supplier order: Stock and dispatch timing are not confirmed. Contact RF-AV for current availability and lead time before time-sensitive orders.
Part numbers and sale units
| Selection | Part number | Quantity 1 supplies |
|---|---|---|
| Black | 6A04UPBK3 | 1000 ft Reel-in-box (RIB) |
| Blue | 6A04UPBL3 | 1000 ft Reel-in-box (RIB) |
| Green | 6A04UPGN3 | 1000 ft Reel-in-box (RIB) |
| Grey | 6A04UPGY3 | 1000 ft Reel-in-box (RIB) |
| White | 6A04UPWH3 | 1000 ft Reel-in-box (RIB) |
| Yellow | 6A04UPYL3 | 1000 ft Reel-in-box (RIB) |
Black — 6A04UPBK3 specifications and image notes
Wavenet 6A04UPBK3 is black Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPBK3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | Black |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

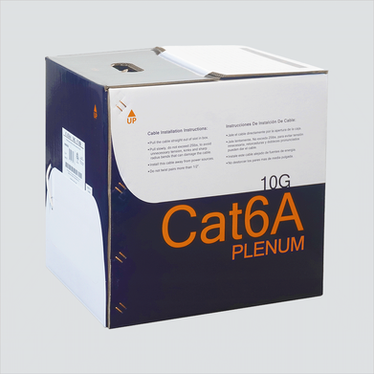

Manufacturer Cat6A plenum family package image. Selected item: 6A04UPBK3, black, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
Blue — 6A04UPBL3 specifications and image notes
Wavenet 6A04UPBL3 is blue Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPBL3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | Blue |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer Cat6A plenum family package image. Selected item: 6A04UPBL3, blue, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
Green — 6A04UPGN3 specifications and image notes
Wavenet 6A04UPGN3 is green Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPGN3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | Green |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer Cat6A plenum family package image. Selected item: 6A04UPGN3, green, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
Grey — 6A04UPGY3 specifications and image notes
Wavenet 6A04UPGY3 is grey Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPGY3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | Grey |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer Cat6A plenum family package image. Selected item: 6A04UPGY3, grey, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
White — 6A04UPWH3 specifications and image notes
Wavenet 6A04UPWH3 is white Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPWH3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | White |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer Cat6A plenum family package image. Selected item: 6A04UPWH3, white, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
Yellow — 6A04UPYL3 specifications and image notes
Wavenet 6A04UPYL3 is yellow Cat6A unshielded plenum network cable with 23 AWG solid bare copper conductors and four twisted pairs. Supplied as one 1000 ft reel-in-box.
| Manufacturer part number | 6A04UPYL3 |
|---|---|
| Category | Cat6A |
| Conductor | 23 AWG solid bare copper |
| Pairs | 4 twisted pairs |
| Shielding | Unshielded (U/UTP) |
| Rating | CMP / FT6 |
| Insulation | FEP |
| Jacket | Flame-retardant PVC |
| Jacket diameter | 0.3543 in |
| Separator / spline | Yes |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | Reel-in-box (RIB) |
| Jacket color | Yellow |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.
Manufacturer Cat6A plenum family package image. Selected item: 6A04UPYL3, yellow, 1000 ft reel-in-box. Image illustrates family packaging, not an exact color/SKU label.
