Wavenet CC1602UPWH4 White 16/2 Unshielded Plenum Control Cable, 1000 ft
Wavenet CC1602UPWH4 White 16/2 Unshielded Plenum Control Cable, 1000 ft
Regular price
$335.00 USD
Regular price
Sale price
$335.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet CC1602UPWH4 is white 16 AWG, two-conductor unshielded plenum control cable with stranded bare-copper conductors, FR-PVC insulation and a low-smoke FR-PVC jacket. The manufacturer specifies CMP/CL2P. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | CC1602UPWH4 |
|---|---|
| Cable type | Unshielded plenum control cable |
| Conductors | 2 |
| Conductor size | 16 AWG |
| Conductor material | Stranded bare copper |
| Insulation | FR-PVC |
| Conductor colors | Black and red |
| Jacket | Low-smoke FR-PVC |
| Jacket color | White |
| Rating | CMP / CL2P |
| Ripcord | Yes |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
| Conductor construction | 19 / 0.295 mm (manufacturer notation) |
| Nominal outer diameter | 4.60 mm (+/-0.2 mm) |
| Maximum recommended pulling tension | 120 N |
| Minimum installation bend | 35 mm |
| Installation temperature | 0 to +50 °C |
| Operating temperature | -20 to +60 °C |
| Manufacturer suggested voltage rating | 300 V |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

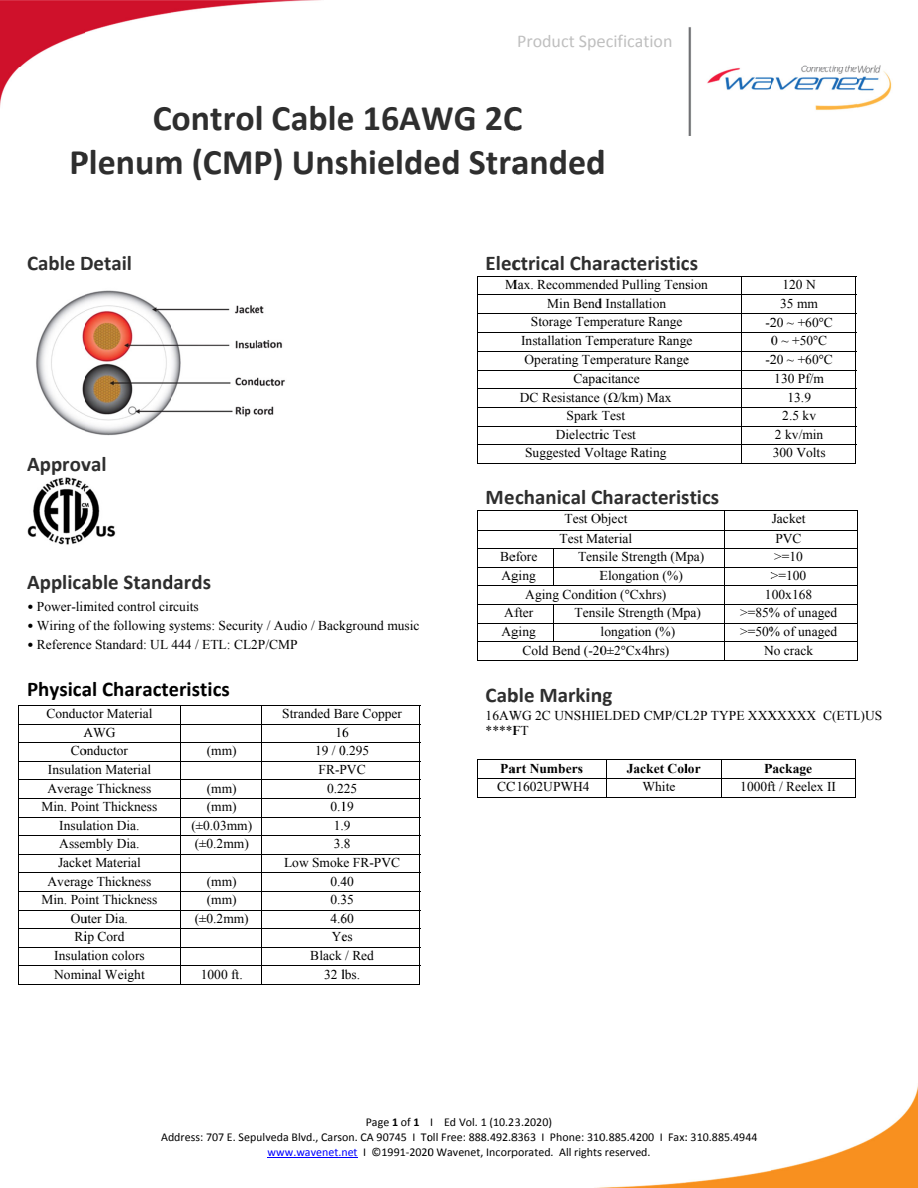

Manufacturer specification-sheet preview for CC1602UPWH4; this is a technical document, not product or package photography.
