Wavenet CC1802+2202SGN4 18/2 + Shielded 22/2 Control Cable, Teal/Yellow, 1000 ft
Wavenet CC1802+2202SGN4 18/2 + Shielded 22/2 Control Cable, Teal/Yellow, 1000 ft
Regular price
$524.15 USD
Regular price
Sale price
$524.15 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet specifies two 18 AWG conductors plus a shielded 22 AWG pair with a tinned-copper drain, within a teal PVC jacket with yellow stripe. The selected unit is one 1000 ft REELEX II pull box.
| Manufacturer part number | CC1802+2202SGN4 |
|---|---|
| Cable type | Composite riser control cable |
| 22 AWG component | 2 stranded copper conductors |
| 22 AWG stranding | 7 x 0.25 mm |
| 22 AWG conductor colors | White and blue |
| 22 AWG shield | Aluminum tape; 100% coverage (manufacturer specification) |
| Drain wire | 7 x 0.2 mm tinned copper |
| 18 AWG component | 2 stranded copper conductors |
| 18 AWG stranding | 7 x 0.39 mm |
| 18 AWG insulation | PVC |
| 18 AWG conductor colors | Red and black |
| Jacket | PVC |
| Jacket color | Teal with yellow stripe |
| Manufacturer markings | CL3 / CMR / FT4 |
| Nominal outer diameter | 6.35 mm |
| Manufacturer operating voltage rating | 80 V |
| Length | 1000 ft |
| Packaging | REELEX II pull box (selected page); pull box in PDF |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

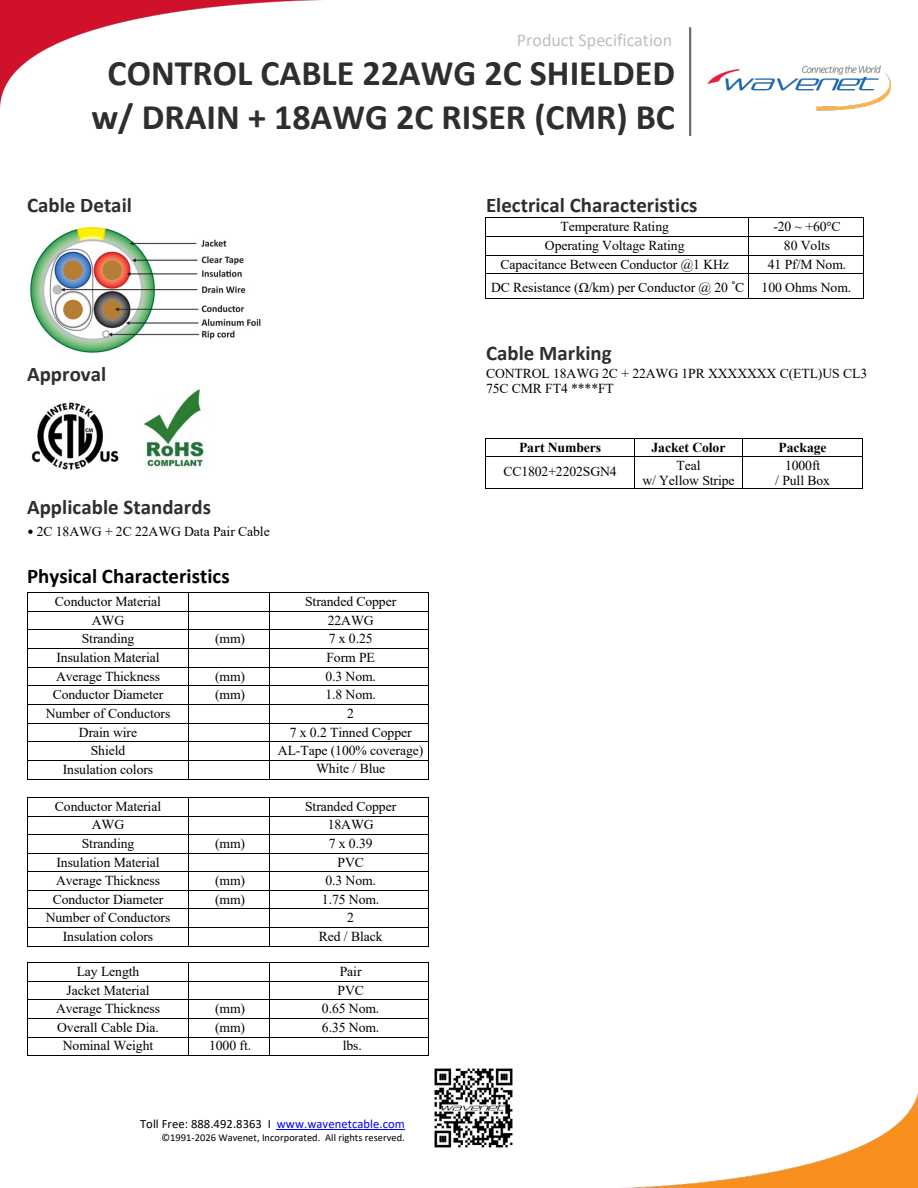

Manufacturer specification-sheet preview for CC1802+2202SGN4; this is a technical document, not product or package photography.
