Wavenet CC1802SRGY4 Grey 18/2 Shielded Riser Control Cable, 1000 ft
Wavenet CC1802SRGY4 Grey 18/2 Shielded Riser Control Cable, 1000 ft
Regular price
$279.00 USD
Regular price
Sale price
$279.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Wavenet CC1802SRGY4 is grey 18 AWG, two-conductor shielded riser control cable with stranded bare-copper conductors, PVC insulation and an FR-PVC jacket. The manufacturer specifies aluminum foil shielding, a drain wire and CMR/FT4 cable marking. Supplied in one 1000 ft REELEX II pull-box package.
| Manufacturer part number | CC1802SRGY4 |
|---|---|
| Cable type | Shielded riser control cable |
| Conductor size | 18 AWG |
| Conductors | 2 |
| Conductor material | Stranded bare copper |
| Conductor construction | 7 / 0.4 mm (manufacturer notation) |
| Insulation | PVC |
| Conductor colors | Black and red |
| Jacket | FR-PVC |
| Jacket color | Grey |
| Rating | CMR; FT4 cable marking |
| Shield | Aluminum foil present; coverage not specified |
| Drain wire | 7 / 0.20TC (manufacturer notation) |
| Ripcord | Yes |
| Nominal outer diameter | 3.96 mm (±0.2 mm) |
| Length | 1000 ft |
| Packaging | REELEX II pull box |
Manufacturer specification (PDF)
Contact RF-AV for current availability and lead time before time-sensitive orders.

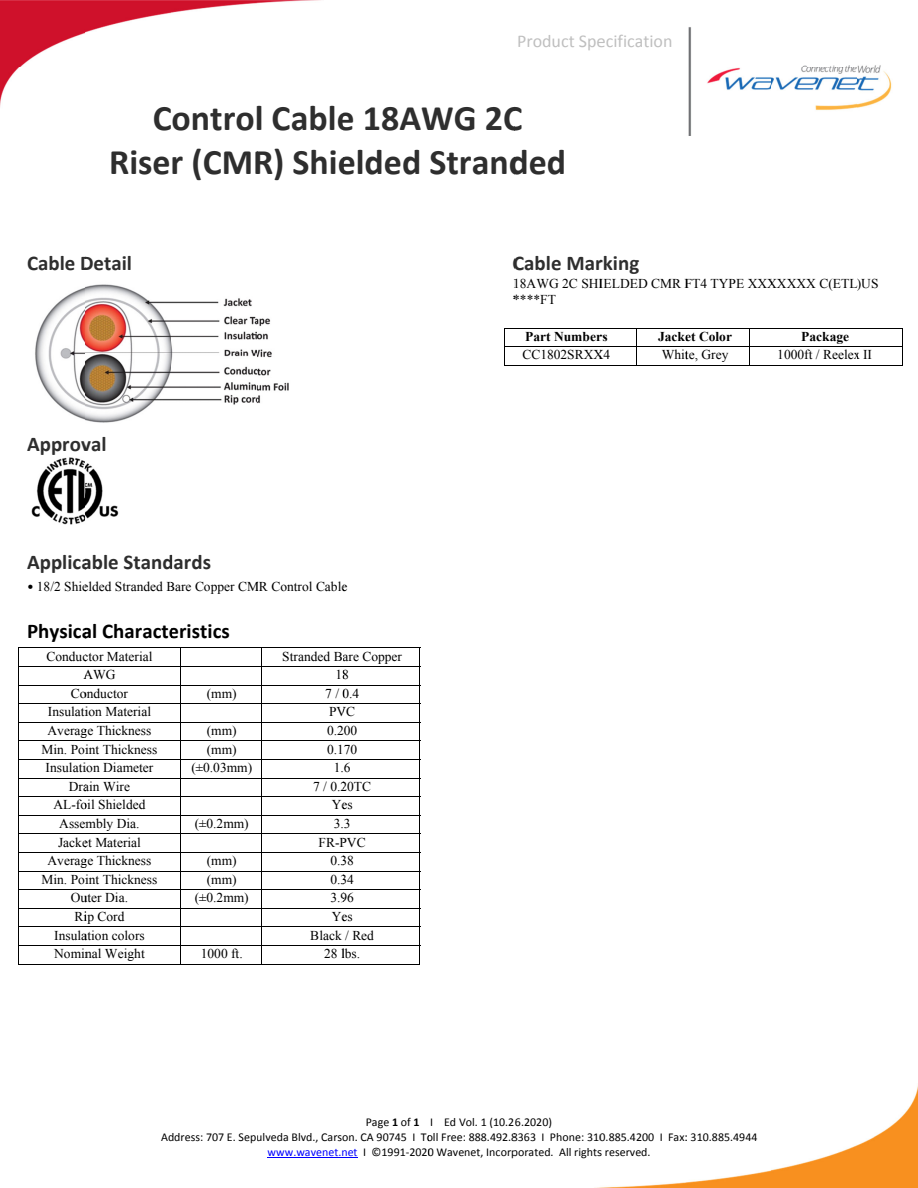

Manufacturer CC1802SRXX4 family specification-sheet preview covering CC1802SRGY4; this is a technical document, not product or package photography.
